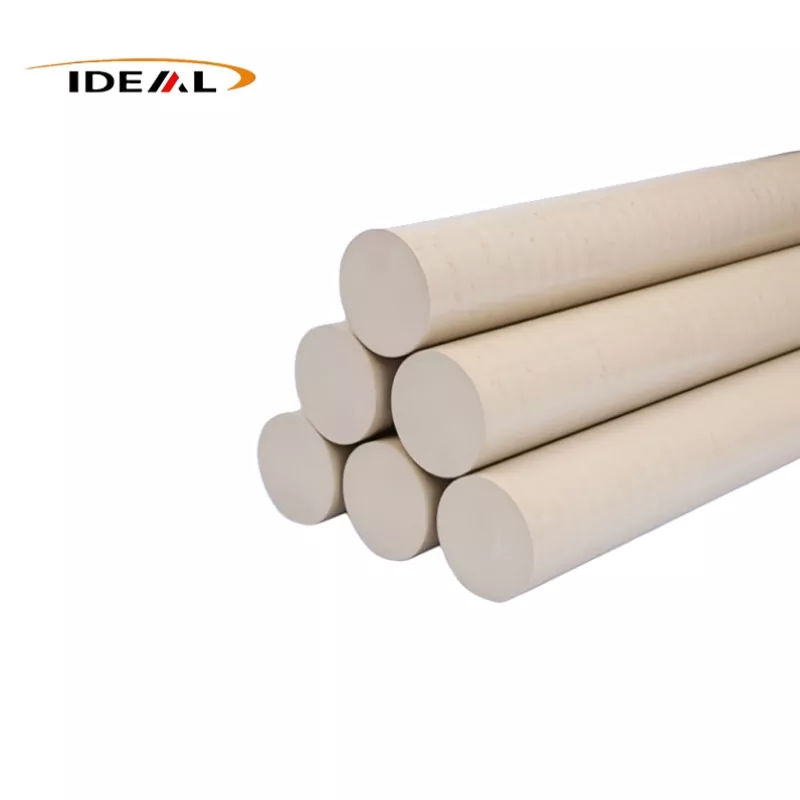

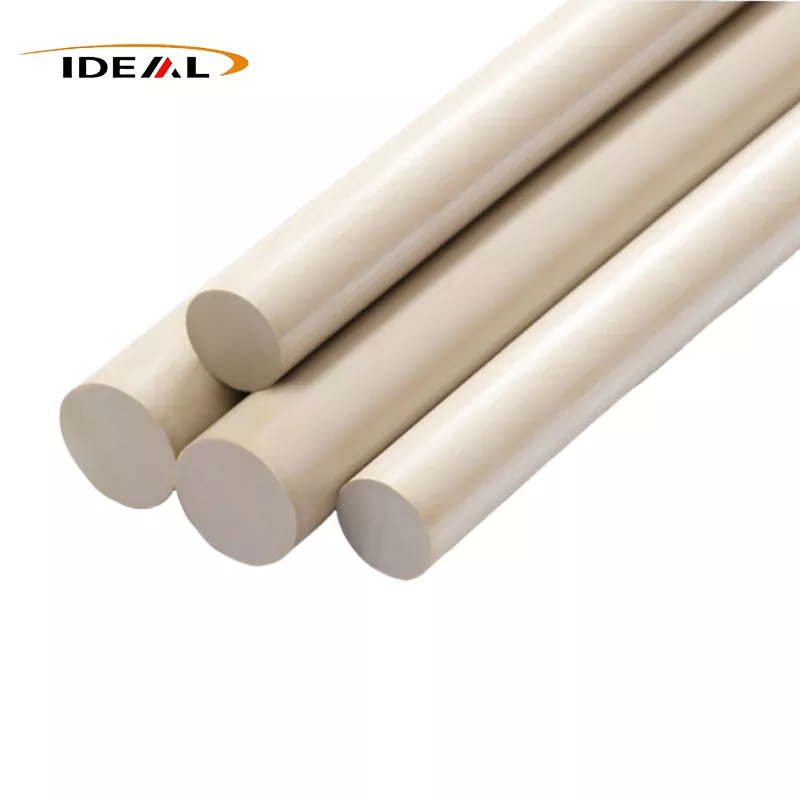

Glass Fiber Reinforced PEEK Rods

Glass fiber reinforced PEEK rods is a composite material that starts with PEEK (polyetheretherketone) and is reinforced with glass fibers. It has a semi-crystalline structure. Now, pure PEEK isn’t just expensive—it also wears down pretty easily in actual use. That’s why we usually modify it by adding fillers. Doing this gives us two big advantages: first, it boosts the hardness and wear resistance of PEEK, and second, it actually helps with its crystallization behavior. Plus, since PEEK is pretty pricey on its own, loading it up with fillers makes the whole thing much more cost-effective.

Glass fiber is a great match for PEEK—it’s strong, affordable, and works really well together with it. By blending glass fiber into PEEK, we can seriously improve the material’s mechanical properties and friction resistance. Once the glass fiber content hits a certain level—say, around 30%—the tensile strength of this PEEK rod can reach about 200 MPa, and the flexural modulus can go beyond 12 GPa. On top of that, PEEK GF30 rod makes the material more dimensionally stable, lowers its thermal expansion, and helps it hold its shape even in high-temperature environments. The wear resistance gets a solid upgrade too, making it a good fit for high-friction applications.

Our GuangZhou Ideal series builds on more than fourteen years of technical know-how. We can fine-tune the glass fiber content in PEEK anywhere between 10% and 30%, and our process is really mature at this point. The Glass Fiber Filled PEEK Rod we make and sell performs at a leading level in the industry. Oh, and just so you know—standard sizes are kept in stock regularly, so once you order, we can ship them out quickly.

products data：

Product Comparison

To help customers accurately select engineering plastic materials suitable for high‑rigidity and high‑temperature working conditions, we provide a professional performance comparison between the PEEK Rods and unfilled PEEK rods, carbon fiber reinforced PEEK rods and ordinary industrial plastic rods, intuitively reflecting the unique comprehensive advantages of glass fiber modified PEEK products.

Core Properties

Modified with scientific glass fiber filling technology, the PEEK Rods break through the performance limitations of pure PEEK materials, with comprehensive upgrades in mechanical strength, high‑temperature resistance, wear resistance and dimensional stability, adapting to various harsh industrial working conditions that require high rigidity and long‑term stable operation.

1. Enhanced Mechanical Strength

Pure PEEK material has a tensile strength of only 90‑100MPa and insufficient bending rigidity, which is easy to deform under long‑term load. After adding 30% high‑quality glass fiber, the tensile strength of the modified rod is increased to 150‑180MPa, achieving a 60%‑80% performance improvement. The glass fiber forms a stable internal skeleton structure inside the PEEK substrate, which can evenly disperse external pressure and load force. Its flexural modulus is increased from 3‑4GPa to 10‑12GPa, effectively resisting bending, twisting and deformation, making it very suitable for manufacturing high‑precision structural parts such as gears, bearings and mechanical fasteners.

2. Ultra‑high Heat Resistance

Unmodified pure PEEK will undergo thermal deformation at 143℃ under 1.82MPa load. The glass fiber reinforcement structure significantly optimizes the thermal stability of the material. The PEEK Rods can withstand extreme temperatures above 315℃ without structural deformation or performance attenuation. The uniformly distributed glass fiber accelerates internal heat conduction, reduces thermal expansion and contraction amplitude caused by temperature changes, and maintains stable structural size and mechanical performance in long‑term high‑temperature environments, which is widely used for high‑temperature insulating parts and engine auxiliary parts in aerospace and automotive industries.

3. Stable Electrical Insulation

This modified PEEK composite material retains the excellent insulation performance of pure PEEK substrate. Even in complex working environments with high temperature, high humidity and high voltage, it can maintain stable volume resistivity and surface insulation performance. It will not lose dielectric stability due to environmental changes, can resist multi‑frequency AC electric field interference, and is an ideal insulating and protective material for electronic equipment, precision electrical appliances and new energy devices.

4. Optimized Friction & Wear Resistance

The glass fiber filling modification effectively reduces the friction coefficient of PEEK materials. The friction coefficient of Glass Fiber Reinforced PEEK Rods is reduced from the original 0.3‑0.4 of pure PEEK to 0.15‑0.2, and the overall wear rate is reduced by nearly 10 times. It can maintain low friction and anti‑wear performance under long‑term high‑frequency friction and cyclic operation. It is worth noting that the company adopts mature formula control technology to strictly control the glass fiber content within 10%‑30%, avoiding the wear resistance decline caused by excessive fiber filling (more than 40%).

5. Excellent Dimensional Stability

Compared with unfilled PEEK rods, glass fiber modified PEEK rods have extremely low thermal expansion coefficient and shrinkage rate. The internal fiber skeleton restricts the molecular chain displacement of PEEK materials, effectively avoiding product shrinkage, warping and size deviation caused by temperature changes and long‑term operation. The finished parts can maintain high‑precision assembly size for a long time, fully meeting the strict size tolerance requirements of precision industrial equipment.

6. Superior Water & Steam Resistance

The PEEK Rods have excellent hydrolysis resistance, and will not absorb water, swell or degrade performance in long‑term humid environments and high‑pressure steam working conditions. The composite structure of glass fiber and PEEK molecular chain isolates the invasion of water molecules, ensuring stable structural performance and service life in humid industrial scenes and high‑temperature water vapor environments.

Production Strength

Relying on 14 years of deep cultivation in the field of modified engineering plastics, Ideal Plastic has mature independent R&D and mass production capabilities for the PEEK Rods, with complete production equipment, professional technical team and standardized quality control system to ensure stable batch product quality.

1. Complete Advanced Production Equipment: The company is equipped with special modified plastic profile extrusion production lines, four‑axis and five‑axis CNC machining centers, laser cutting machines, precision engraving machines and professional performance testing equipment, as well as a 100,000‑class dust‑free injection molding workshop. The full‑process refined production mode realizes precise control of glass fiber proportion, uniform mixing and extrusion molding, ensuring consistent product performance.

2. Professional R&D & Technical Team: It has a professional R&D team of more than 100 technical personnel and skilled front‑line production workers. The team has rich experience in PEEK material formula optimization, fiber modification technology and mold development, and can independently adjust glass fiber filling ratio according to customer working condition requirements to customize exclusive modified PEEK rod solutions.

3. Strict Standardized Quality System: The company has passed ISO9001 international quality management system certification. All products have passed SGS testing, and meet CE, RoHS, REACH and EN71 international environmental protection standards. From raw material procurement, formula mixing, extrusion molding to finished product testing, every link implements full‑process quality inspection to eliminate unqualified products.

4. Mature Customization & Delivery Capacity: With self‑developed hundreds of PEEK profile molds, the company supports mass production and small‑batch customized processing. Standard PEEK Rods are in stock for fast delivery, and non‑standard size and structural customization can be completed efficiently according to customer drawings and physical samples.

Application Fields

With the dual advantages of high mechanical performance and cost performance, Glass Fiber Reinforced PEEK Rods replace traditional metal materials and ordinary plastic materials, and are widely used in high‑precision and high‑temperature industrial manufacturing fields worldwide.

1. Aerospace Technology: Applied to lightweight structural accessories, high‑temperature resistant insulating parts, mechanical transmission components and anti‑deformation structural parts of aerospace equipment, reducing equipment weight while ensuring high‑temperature resistance and structural stability.

2. Automotive Industry: Used for new energy vehicle electronic insulating parts, engine peripheral high‑temperature resistant parts, wear‑resistant transmission parts and lightweight structural accessories, adapting to high‑temperature and high‑frequency operation scenarios of automotive equipment.

3. Electronics Industry: Served as precision insulating structural parts, high‑temperature resistant brackets and anti‑wear accessories of electronic and electrical equipment, ensuring stable electrical insulation performance in complex temperature and humidity environments.

4. Industrial Canned Machinery: Suitable for high‑precision mechanical gears, bearings, guide rail accessories and sealing parts of automated canned equipment, maintaining long‑term stable operation and reducing equipment failure rate.

5. Energy Devices: Applied to high‑temperature resistant and corrosion‑resistant structural parts of new energy equipment, petroleum and chemical energy devices, adapting to harsh working conditions such as high temperature and chemical corrosion.

6. Artificial Intelligence Equipment: Used for precision transmission structural parts and lightweight supporting parts of intelligent automation equipment and AI operating equipment, meeting the high‑precision and high‑stability operation requirements of intelligent equipment.

Application

Aerospace Technology

Artificial Intelligence

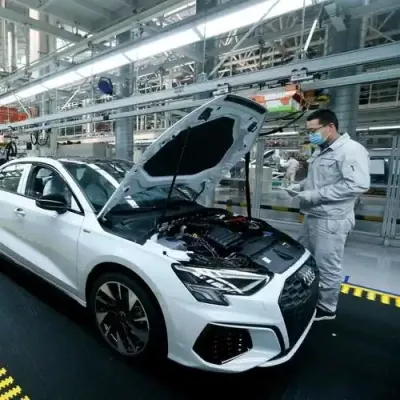

Automotive industry

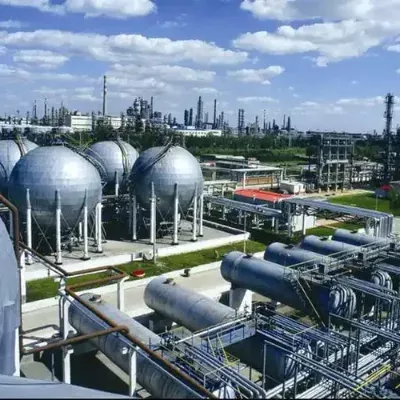

Canned machinery

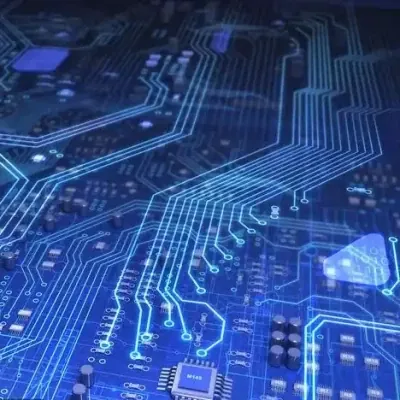

Electronics industry

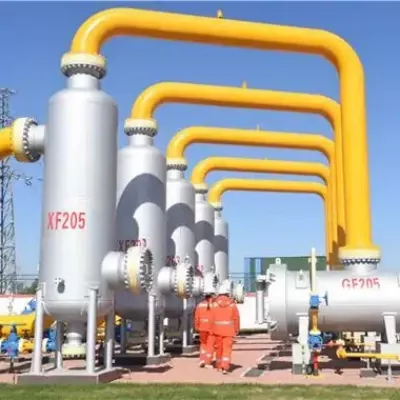

Energy device

Custom Service

Ideal Plastic provides one‑stop full‑cycle customized processing services for Glass Fiber Reinforced PEEK Rods, covering size customization, precision machining and technical scheme adjustment to meet personalized industrial application needs.

1. Fiber Ratio Customization: According to customer working condition requirements, adjust the glass fiber filling ratio within 10%‑30% to balance product strength, wear resistance and cost performance, and provide exclusive modified material formula solutions.

2. Size & Specification Customization: On the basis of standard diameter and length specifications, support non‑standard diameter cutting, fixed‑length cutting and special‑shaped size processing to adapt to diverse equipment installation dimensions.

3. Precision CNC Machining: Provide full‑process processing services such as turning, milling, drilling, grooving, laser cutting and engraving, converting raw modified PEEK rods into finished precision parts according to customer 2D/3D drawings.

4. Multi‑format Drawing Support: Accept mainstream drawing formats including STEP, STP, STL, IGS, IGES, PRT, SLDPRT, SAT and X_T. Physical sample reverse customization service is also available to meet diverse design and processing needs.

5. Confidential After‑sales Service: Support signing technical confidentiality agreements for customized products, strictly protect customer design drawings and technical data, and provide long‑term technical consultation and after‑sales problem‑solving services.

FAQ

Q1: What are the advantages of glass fiber reinforced modified PEEK rods over pure PEEK rods?

A1: Glass fiber modified PEEK rods have significantly higher mechanical strength, rigidity, high‑temperature resistance and dimensional stability than pure PEEK rods, with lower friction coefficient and better wear resistance, while effectively reducing material application cost and improving overall cost performance.

Q2: What glass fiber content options do you provide?

A2: We support adjustable glass fiber filling ratio from 10% to 30%, and can customize the most suitable fiber proportion according to customers' actual working condition and performance requirements.

Q3: What certifications do your modified PEEK products have?

A3: Our products have passed ISO9001 quality system certification, SGS testing, and comply with CE, RoHS, REACH and EN71 international environmental protection standards, with complete qualification documents.

Q4: Can I get free product samples for testing?

A4: Free stock samples of standard Glass Fiber Reinforced PEEK Rods are provided for customer performance testing, customers only need to bear the shipping cost, and the bulk order products are consistent with sample quality.

Q5: What is your MOQ and delivery time?

A5: Standard semi‑finished rods support 1‑piece minimum order. In‑stock products can be delivered quickly, and the delivery cycle of customized products is determined according to order quantity and processing difficulty.

Q6: What payment and after‑sales policies do you support?

A6: We support HSBC Hong Kong account payment and forwarder payment. For products with quality problems, we provide free return and exchange services and bear the corresponding freight costs.
