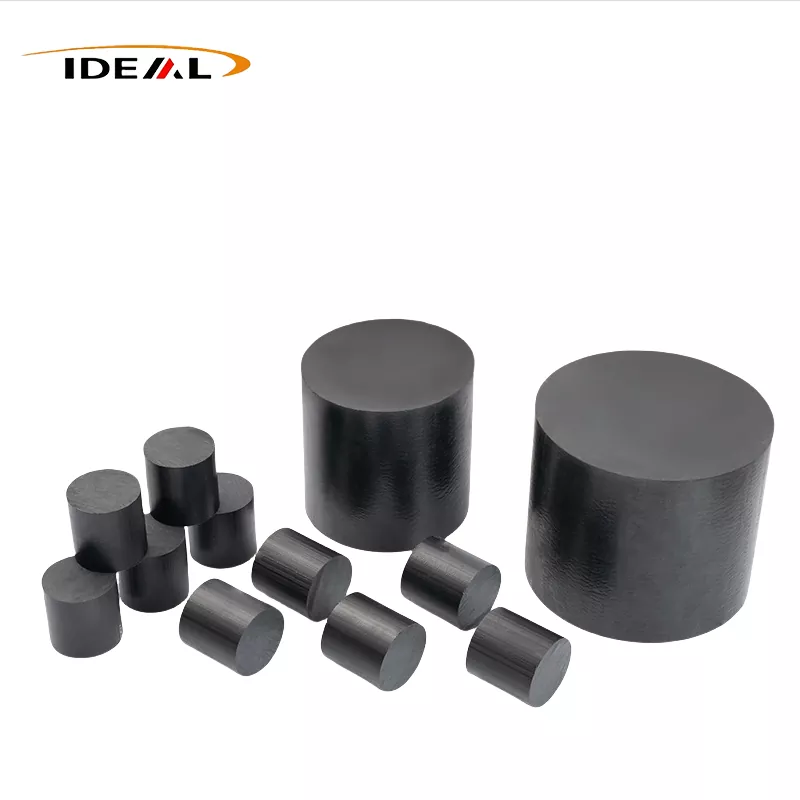

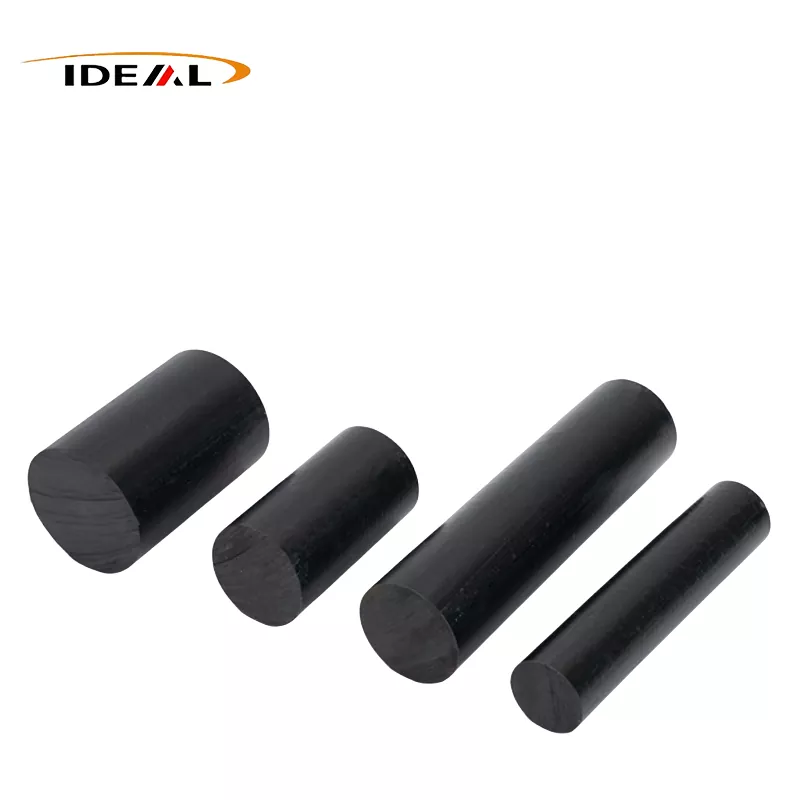

PEEK HPV rods is made of PEEK engineering plastics and reinforced with carbon fiber, graphite and PTFE lubricant. Peek peek is a thermoplastic resin with semi crystalline properties, and its crystallinity is about 25% -35%. This special structure brings it a series of excellent properties. With its high strength, high stiffness, excellent toughness, fatigue resistance, wear resistance, high temperature resistance and dimensional stability, it has been widely used in aerospace, automotive manufacturing, medical devices, electronic industry and other fields.
Among all peek materials, PEEK HPV rods has low friction coefficient, low wear and good machinability. PTFE itself has a very low friction coefficient. After adding peek, the friction coefficient of the material is further reduced, and the wear resistance of the composite material is significantly improved. It is usually selected as the solution for ordinary bearings, bushings, insulators, valves and seals.
The bearing grade PEEK profiles produced by Ideal Plastic include rods, plates and tubes, and can also be processed into customized parts according to customer requirements. Different PEEK materials are available for various working conditions, including PEEK Rods, carbon fiber reinforced solutions and other modified PEEK profiles. These products are widely used in industries where temperature resistance, mechanical strength and dimensional accuracy are important.
The following specifications show the standard parameters of bearing grade PEEK materials produced by Ideal Plastic. Customers can select suitable sizes according to their application requirements.
| Product name | Bearing Grade PEEK Rod |
| Material | Pure PEEK +carbon fiber+graphite + PTFE |
| Color | black |
| Dia | 3mm-300mm |
| Length | 1000mm or 3000mm |
| Tolerance | +/-0.02mm |
| Sample | Free |
| Minimum order quantity | 1 piece |
| Certificates | ISO9001:2008, REACH, ROHS |
The performance of modified PEEK materials mainly depends on the combination of different reinforcing components.The PEEK Rods use a composite structure to achieve better performance than pure PEEK materials in friction-related applications.
The main material components include:
1. Pure PEEK resin: Provides high temperature resistance, chemical stability and excellent mechanical properties.
2. Carbon fiber: Improves mechanical strength, stiffness and load-bearing performance, making the material suitable for structural applications.
3. Graphite: Enhances wear resistance and supports self-lubricating characteristics during continuous operation.
4. PTFE lubricant: Reduces friction coefficient and improves sliding performance.
Modified PEEK materials provide improved performance compared with standard PEEK products. The combination of reinforcement materials allows PEEK HPV Rods to maintain stable performance in applications with friction, pressure and temperature requirements.
1. Self-lubrication: PEEK already has good sliding properties among engineering plastics. The addition of PTFE further improves lubrication performance and reduces friction during operation.
2. Wear resistance: The addition of graphite improves wear resistance and helps extend product service life in continuous working conditions.
3. Mechanical strength: Carbon fiber reinforcement increases bending strength and stiffness, providing better support in load-bearing applications.
4. Fatigue resistance: The combination of high strength, low friction coefficient and wear resistance helps improve fatigue performance during repeated operation.
5. High temperature resistance: Modified PEEK maintains excellent thermal stability and can be used under high temperature conditions without melting, thermal decomposition or oxidation problems.
6. Processing flexibility: PEEK material can be processed through injection molding, extrusion molding, compression molding and machining methods, providing flexibility for different component designs.
For industries requiring reliable friction performance and precision components, bearing grade PEEK materials provide an effective alternative to traditional materials. PEEK HPV Rods combine low friction, high strength and temperature resistance, helping manufacturers improve equipment reliability and reduce maintenance requirements.
Ideal Plastic focuses on manufacturing high-performance PEEK profiles and provides solutions according to different customer application requirements. The company integrates production, research and development and sales, ensuring stable product quality and supply capability.
Different PEEK materials are designed for different working conditions. The following comparison helps customers understand the differences between standard PEEK materials and reinforced PEEK profiles.
| Item | Standard PEEK Rods | PEEK HPV Rods | PEEK CF30 Rods |
| Material Structure | Pure PEEK | Pure PEEK + carbon fiber + graphite + PTFE | PEEK reinforced with carbon fiber |
| Friction Performance | Good | Excellent self-lubricating performance | Improved mechanical performance |
| Wear Resistance | Good wear resistance | Enhanced wear resistance for sliding applications | High wear resistance under load conditions |
| Main Advantage | Balanced overall properties | Low friction and long service life | Higher strength and stiffness |
| Typical Applications | General industrial components | Bearings, bushings, valves and sealing parts | Structural and load-bearing components |
Because of its combination of mechanical strength, wear resistance and temperature stability, bearing grade PEEK materials are used in many industries. Ideal Plastic provides PEEK solutions for customers requiring reliable performance in demanding environments.
Main application industries include:
1. Automotive Industry
PEEK materials are used in automotive components where low friction, dimensional stability and long-term durability are required.
2. Electronics and Semiconductors
The excellent insulation properties and precision performance make modified PEEK suitable for electronic and semiconductor applications.
3. Food Processing
PEEK materials can be used for components requiring wear resistance and stable operation in food processing equipment.
4. Biomedicine
The material performance supports applications requiring precision, reliability and resistance to demanding operating conditions.
5. Chemical Analysis
PEEK provides good chemical resistance and dimensional stability for analytical equipment components.
6. New Energy
Modified PEEK materials can be applied in new energy equipment requiring lightweight, durable and high-performance plastic components.
automotive industry
Biomedicine
chemical analysis
Electronics and semiconductors
food processing
new energy
Ideal Plastic produces various bearing grade PEEK profiles, including rods, plates and tubes. According to customer requirements, these profiles can be further processed into different precision components.
The company has production equipment including large profile production lines, CNC machines, 4-axis and 5-axis machining equipment, engravers, laser cutters and a Class 100,000 cleanroom for precision injection molding work.
With professional production management and nearly 100 production and R&D personnel, Ideal Plastic supports customized manufacturing and stable delivery for different industrial projects.
Ideal Plastic has focused on high-performance engineering plastics for more than 14 years, integrating production, research and development and sales. The company owns a large production base and professional production management team to ensure stable manufacturing capability.
Quality control is an important part of production. Ideal Plastic provides products with ISO9001:2008, REACH and ROHS certifications to support customers in different industries.
Through independent development and manufacturing capability, Ideal Plastic supplies reliable PEEK profiles for global customers and provides customized solutions based on specific application requirements.
Ideal Plastic also provides different reinforced PEEK materials, including PEEK CF30 Rods and PEEK GF30 Rods, for applications requiring different levels of strength, stability and wear resistance.
A: PEEK HPV Rods are made of pure PEEK combined with carbon fiber, graphite and PTFE lubricant to improve self-lubrication and wear resistance.
A: They provide low friction, good wear resistance, high temperature resistance and stable mechanical performance.
A: The material is widely used in automotive, electronics, semiconductor, food processing, biomedical, chemical analysis and new energy industries.
A: Yes. Ideal Plastic can process PEEK profiles into different parts according to customer requirements.
A: The products are available with ISO9001:2008, REACH and ROHS certifications.
A: The company uses large profile production lines, CNC machines, 4-axis and 5-axis equipment, laser cutters and precision production facilities.
A: The minimum order quantity is 1 piece according to the product specifications.
A: Yes. Free samples are available for customer evaluation.
