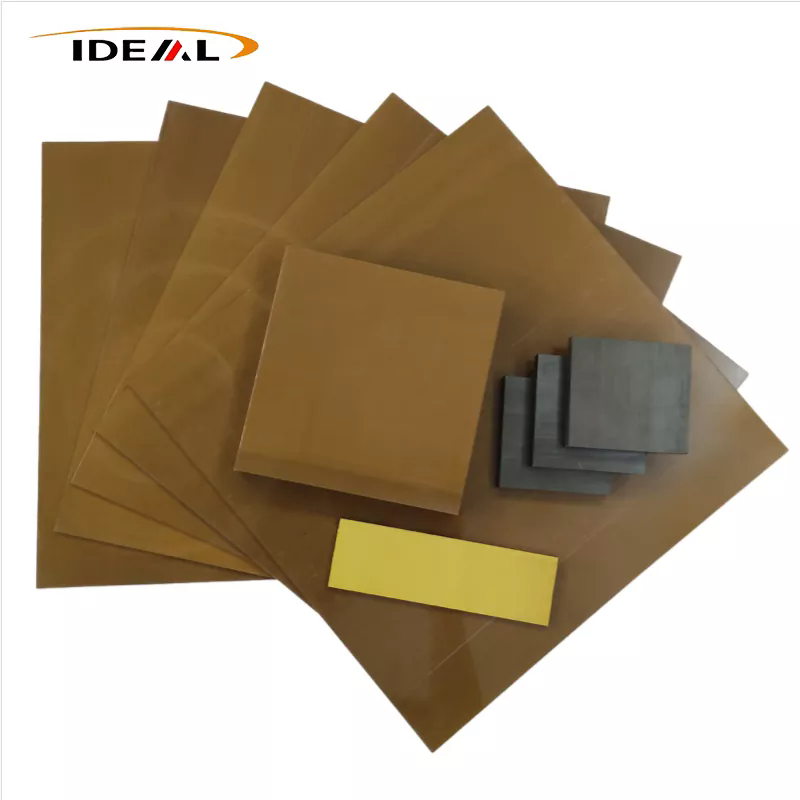

Abstract: PAI (Polyamide-imide) sheets are a high-performance polymer material known for exceptional heat resistance, mechanical strength, and dimensional stability. In this article, we explore the key benefits of using PAI sheets, their unique properties, industry applications, and reasons why engineers and manufacturers prefer IDEAL PAI sheets for high-temperature and precision applications.
Table of Contents
- Properties of PAI Sheets
- Mechanical Performance and Wear Resistance
- Thermal Stability of PAI Sheets
- Electrical Insulation Benefits
- Industry Applications
- FAQ About PAI Sheets
- Contact IDEAL
Properties of PAI Sheets
PAI, or polyamide-imide, is a high-performance engineering polymer with a molecular structure that incorporates alternating amide and imide groups on aromatic rings. This unique structure gives PAI sheets unmatched properties suitable for extreme environments.
- Temperature Resistance: Operates from -60°C to 260°C with minimal degradation.
- Dimensional Stability: Low thermal expansion (2×10⁻⁵ to 7×10⁻⁵/°C) ensures precision components maintain shape.
- High Strength: Tensile strength exceeds 172 MPa; flexural strength reaches 170 MPa.
- Wear Resistance: Coefficient of friction 0.15–0.3 with self-lubricating properties.
- Electrical Insulation: High insulation resistance and low dielectric constant make it ideal for electronics.
Mechanical Performance and Wear Resistance
PAI sheets demonstrate superior mechanical properties among pure resin systems, including high tensile strength, impact resistance, and creep resistance. Glass-fiber reinforced grades, such as PAI 5530, enhance toughness and impact strength, while PTFE or graphite-filled grades offer excellent wear resistance.
| PAI Grade | Tensile Strength (MPa) | Flexural Strength (MPa) | Wear Resistance |
|---|---|---|---|
| PAI 4203 (Unreinforced) | 172 | 170 | Good |
| PAI 5530 (Glass Fiber Reinforced) | 200+ | 180+ | Excellent |
| PAI 4301 (PTFE/Graphite Filled) | 175 | 172 | Superior |
Thermal Stability of PAI Sheets
One of the standout benefits of IDEAL PAI sheets is their ability to maintain mechanical integrity at high temperatures. The low coefficient of thermal expansion and high creep resistance allow components to resist deformation and maintain precise tolerances under thermal stress.
- Continuous operation up to 260°C
- Minimal volume change at elevated temperatures
- Resistance to thermo-mechanical fatigue
Electrical Insulation Benefits
PAI sheets are widely used in electrical and electronics industries due to their excellent insulating properties. They prevent current leakage, reduce energy loss, and are suitable for high-temperature printed circuit boards and insulating components.
- High insulation resistance
- Low dielectric constant
- Effective in both static and dynamic applications
Industry Applications
Due to their exceptional thermal, mechanical, and electrical properties, IDEAL PAI sheets are used across various industries:
- Aerospace: High-strength components that withstand extreme temperatures.
- Automotive: Engine components, bearings, and wear-resistant parts.
- Electronics: Insulating gaskets, printed circuit boards, and connectors.
- Industrial Machinery: High-load precision components and bushings.
For more information about IDEAL PAI sheets and their technical specifications, visit IDEAL PAI Sheets.
FAQ About PAI Sheets
- Q1: Can PAI sheets withstand continuous high temperatures?
- A1: Yes, IDEAL PAI sheets can operate continuously up to 260°C without losing mechanical properties.
- Q2: Are PAI sheets suitable for electrical insulation?
- A2: Absolutely. PAI sheets have high insulation resistance and a low dielectric constant, ideal for electronics.
- Q3: How do reinforced PAI sheets differ from unreinforced grades?
- A3: Reinforced grades like glass fiber PAI 5530 offer higher impact resistance and stiffness, while unreinforced PAI 4203 provides excellent toughness and flexibility.
- Q4: Can PAI sheets be machined for custom components?
- A4: Yes, IDEAL provides PAI sheets in customizable sizes suitable for precise machining.
Contact IDEAL
If you are looking for high-performance PAI sheets for your high-temperature or precision applications, IDEAL offers premium quality materials tailored to your requirements. Contact us today to discuss your needs and request a quotation!
