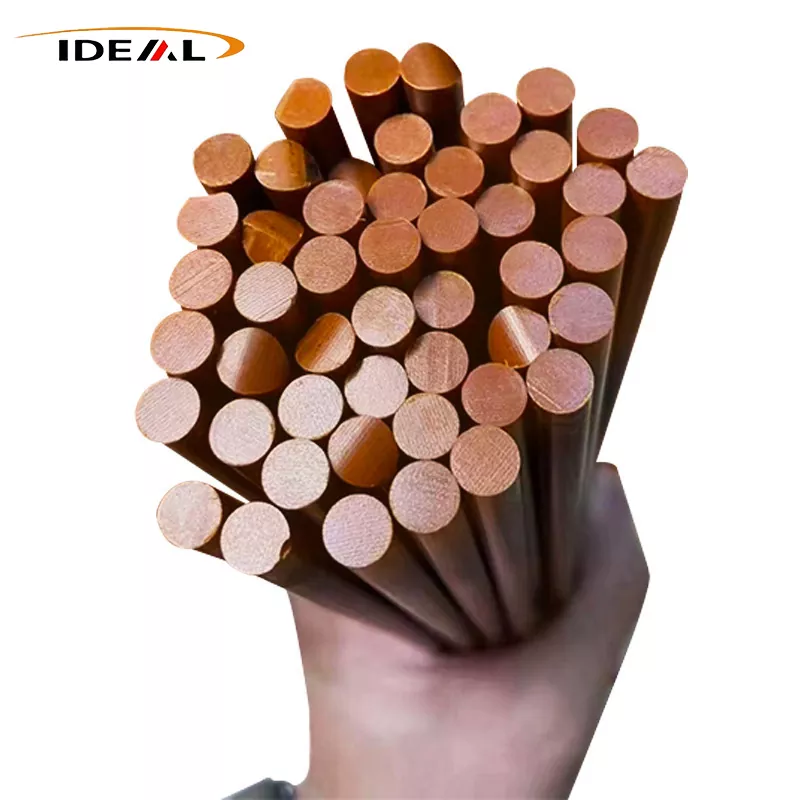

Vespel SP-1 Rods

The Vespel SP-1 rods from Ideal Plastic factory deliver steady long-term operation across an ultra-broad temperature range of -196°C to 300°C, retaining complete wear resistance and insulating stability. It supports short-term instantaneous high-temperature resistance up to 400°C and maintains non-brittle, flexible mechanical properties even at ultra-low temperature of -269°C (liquid helium environment). Boasting the highest purity and elongation among all SP series grades, SP-1 effectively resists creep deformation and structural fatigue above 260°C. Its unique surface self-lubricating molecular layer lowers friction adhesion, enabling reliable dry-running operation without additional lubrication for high-friction structural parts.

Premium Industrial Molding & Standardized Production

Our Vespel SP-1 pure polyimide rods adopt authentic DuPont original SP-1 resin powder as raw material, processed by precise high-temperature and high-pressure hot-pressing integral molding technology. This mature process completely preserves the intrinsic excellent physical and chemical properties of pure polyimide, eliminating performance attenuation caused by filler doping and secondary processing. The finished products feature compact internal structure, uniform molecular density and zero residual stress. Supported by standardized ISO quality management system, multiple utility model patents and complete CE, RoHS, REACH certifications, our products deliver top-tier industry quality and stable batch consistency, winning long-term recognition from global high-end manufacturing customers.

Product Specifications

Key Performance Advantages of SP-1 Neat Polyimide

1. Stable Temperature Resistance Across a Wide Range

SP-1 neat polyimide demonstrates exceptional temperature adaptability compared to conventional engineering plastics. It operates stably over the long term within the -200°C to 300°C range and withstands short-term thermal shocks exceeding 400°C. Its unique biphenyl molecular structure ensures the material retains good toughness at extremely low temperatures without becoming brittle or cracking, making it suitable for both cryogenic equipment and continuous high-temperature industrial operations.

2. Stable and Reliable Electrical Insulation

Leveraging its rigid imide rings and dense aromatic molecular structure, SP-1 effectively inhibits electron migration, achieving a volume resistivity exceeding 10¹⁶ Ω·cm. Free from conductive fillers, the material is immune to insulation degradation or current leakage; it maintains stable insulation performance under high-temperature, high-frequency, and high-humidity conditions, making it ideal for various high-end electrical and electronic insulation components.

3. Excellent Dry Self-Lubrication and Wear Resistance

Under frictional conditions, SP-1’s orderly, rigid molecular chains form a dense lubricating protective layer at the contact interface, reducing surface adhesion and frictional resistance. Its stable aromatic heterocyclic structure minimizes molecular chain fatigue and breakage, ensuring long-term wear stability. The material supports oil-free dry friction operation, meeting the demands of rigorous applications involving high friction without external lubrication.

4. Inherent UL94 V-0 Flame Retardancy and Low-Smoke Safety

As a neat polyimide, SP-1 possesses inherent flame-retardant properties, achieving a UL94 V-0 rating without the need for additives. It is resistant to ignition at high temperatures, produces low smoke density, and releases no toxic gases. It rapidly forms a protective carbonized layer that blocks heat and oxygen, ensuring safety and environmental compliance for use in aerospace, medical, and sealed electrical equipment.

5. Excellent Structural Stability and Fatigue Resistance

The neat PI base material exhibits superior resistance to cyclic stress and outstanding structural stability. At room temperature, its fatigue strength reaches 40%–50% of its tensile strength, effectively resisting structural degradation and performance loss caused by long-term reciprocating motion and cyclic loading; this makes it suitable for components such as bearing cages and precision transmission parts that require continuous operation.

6. Low thermal expansion and stable dimensional accuracy

Vespel SP-1 rods utilize a highly stable biphenyl-type polyimide formulation, with a coefficient of thermal expansion controlled within the 10⁻⁶–10⁻⁷/℃ range—levels comparable to steel and far superior to standard engineering plastics. It effectively prevents dimensional deviations, structural deformation, and assembly failures caused by temperature fluctuations, ensuring long-term dimensional stability for high-precision equipment components.

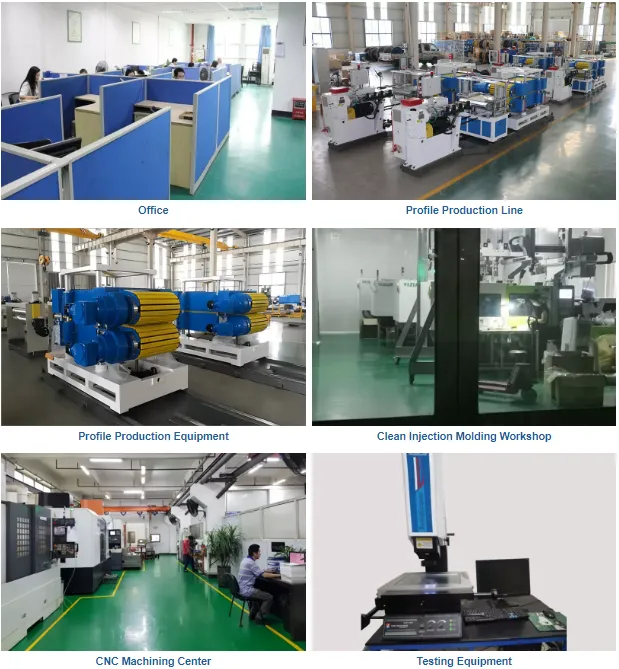

Factory Strength & Customized Service Advantages

- Professional R&D and Production Background

We are a professional manufacturer specialized in the R&D and production of Vespel SP-series polyimide products, with mature and experienced technical reserves in pure PI compression molding and precision processing.

- Strict Quality Control System

We adopt high-quality globally sourced raw materials and implement full-process production management in accordance with the ISO quality system. All products are supplied with complete test reports and compliance certificates, and we hold independent patents for core molding technologies to ensure stable and consistent product quality.

- Flexible Order Support

We support diversified procurement demands, including standard finished rod supply, non-standard custom production based on customer drawings, small-batch sample trial production and large-scale bulk orders.

- One-stop Custom Processing Service

We provide integrated secondary precision processing services for the Vespel SP-1 rods, covering customized shaping and finishing. It fully meets personalized and high-precision manufacturing requirements for global high-end industrial customers.

FAQ

1. How do you guarantee SP-1 product performance stability?

We adopt globally trusted DuPont original pure polyimide resin raw materials, with fixed pure resin formula and standardized hot-pressing molding process. Each batch of products is accompanied by professional quality inspection reports and performance test data, with stable and reliable overall performance reaching top industry standards. Detailed parameter specifications can be provided for customer verification at any time.

2. What quality control system do you implement?

We have a complete closed-loop quality control system, equipped with professional testing equipment and dedicated quality inspection teams. Strict inspections are implemented throughout the whole process from raw material incoming inspection, production process monitoring to finished product delivery testing to eliminate unqualified products and ensure 100% qualified delivery.

3. Is free sample testing service available?

Yes. We provide free in-stock semi-finished SP-1 rod samples for customer performance testing. Customers only need to bear the freight cost. The samples adopt the same raw materials and production process as mass-produced products to ensure consistent test data and batch performance.

4. What payment terms do you support?

We adopt standardized deposit + balance payment terms: arrange production after receiving the pre-production deposit, deliver goods after full payment settlement. We support HSBC Hong Kong account transfer and freight forwarder payment methods, with flexible and formal procurement settlement procedures.

5. What is your return and exchange policy?

For product quality problems, dimensional tolerance errors or performance defects caused by our production, we provide free return, exchange and refund services, and bear all related freight costs. For customer-initiated return demands due to wrong ordering, products in resalable original condition can be returned and exchanged, with customers undertaking the corresponding freight expenses.

6. What after-sales technical support can you provide?

We provide full-cycle after-sales service and professional technical support. Customers can consult our technical team at any time during product use. We rely on years of polyimide production experience to quickly solve product matching, installation and application problems for customers, ensuring smooth project progress.

7. What quality control measures are applied for repeat bulk structural‑part orders?

We employ measures such as fixed formulations, mold-clamping and setting processes, full-batch testing, sample retention, and an ISO quality control system, ensuring consistent quality across mass production—so you can proceed with confidence.
