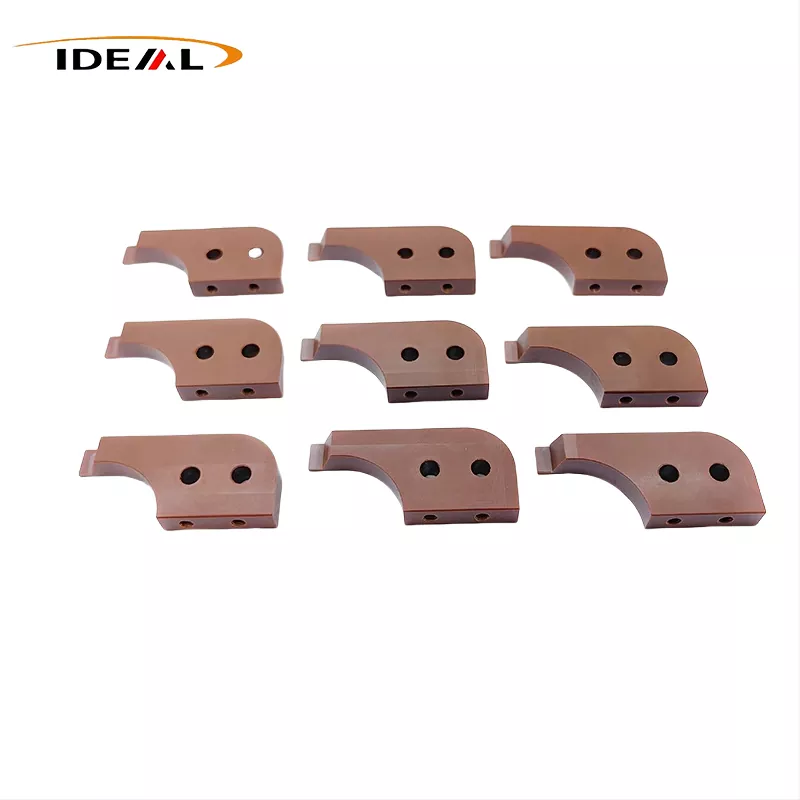

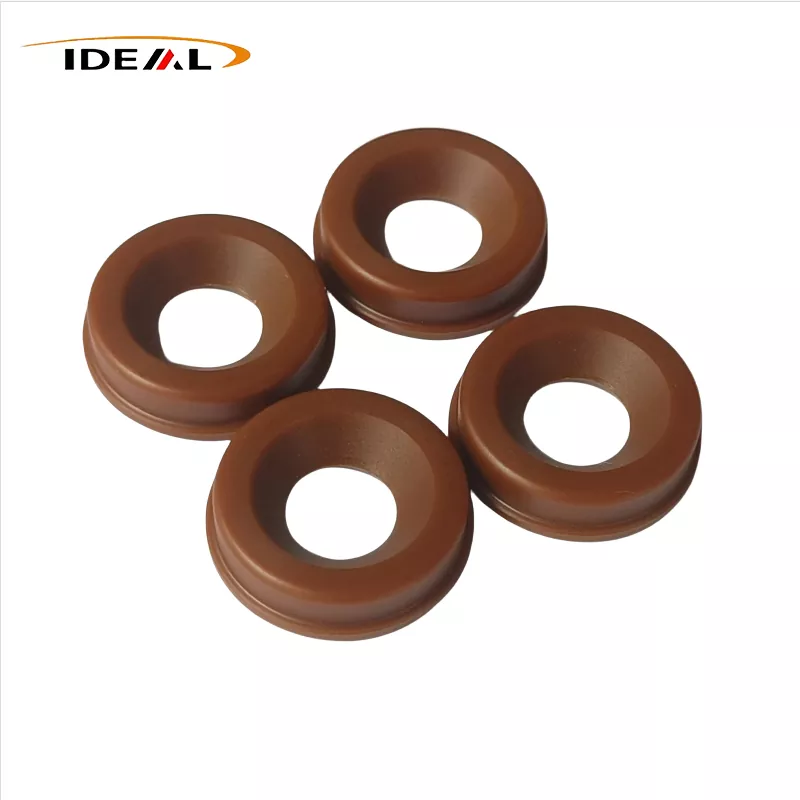

China Vespel SP-1 parts from Ideal Plastic factory is a high-performance polyimide material. It’s made from unfilled, top-grade polyimide plastic and is usually produced by methods like compression molding, CNC machining, or laser cutting. Contact us!
1. Supports small-batch orders
2. Factory direct sales
3. Over 14 years of industry experience
4. Quality certified
5. Customizable
Durable Vespel SP-1 parts from Ideal Plastic can work reliably from -196°C all the way up to 288°C in air. Throughout this range, it keeps great wear resistance and insulation—and it can even handle short bursts of temperature up to 480°C. In Vespel’s SP series, GG123 matches their SP-1 grade, which offers the highest elongation and purity. Thanks to these qualities, it’s often chosen for making parts used in high-temperature settings, like insulation components, valve seats, thrust bearings, separation claws, and so on.
It’s part of the high-performance engineering plastics family. It’s typically created from raw materials like dianhydride and diamine through a condensation reaction, and its molecular structure contains repeating imide rings. The standout features of this material are its incredible heat resistance, strong mechanical properties, and excellent insulation. Over the years, polyimide has found more and more uses in fields like electronics, aerospace, and new energy.
The DuPont™ Vespel® SP-1 parts we supply are usually hot-pressed first, then finished by CNC machining or laser cutting. Why? Well, it comes down to the nature of polyimide: most PI plastics are thermosetting, meaning once they’re cured, they can’t be reshaped. Also, after curing, the material becomes quite hard and less flexible. If you try to cut it directly, it tends to crack, create burrs, and wear down cutting tools—which hurts the final precision of the part. Laser cutting, on the other hand, is precise, fast, and has very little thermal impact. That makes it a great fit for producing 3 parts where accuracy really matters.
|
Product name |
Vespel SP-1 parts |
|
Material |
Pure polyimide resin |
|
Color |
Brown |
|
Site |
custom made |
|
Drawing formats |
2D, 3D, template |
|
Tolerance |
±0.02mm |
|
sample |
Negotiation |
|
Minimum order quantity |
1 piece |
|
Certificates |
ISO9001:2008, REACH, ROHS |
PI plastic is incredibly heat resistant. Even after long-term use, its performance doesn't easily degrade in extreme temperatures—from as low as minus 200 degrees Celsius all the way up to over 300 degrees Celsius. That’s why PI has become such a key material in aerospace, automotive, electronics, and electrical applications. For instance, in aerospace, it's used for interior parts, exterior structures, and even engine components. In the automotive industry, you’ll often find it in high-performance brake pads, bearings, and gears.
When it comes to insulation, Vespel SP-1 parts also does a great job. Even under high temperature, high frequency, or high voltage conditions, it keeps its electrical insulation properties stable.
Its radiation resistance is excellent too. This comes down to the aromatic heterocyclic imide composite structure inside the material, which works kind of like an "electron trap." On top of that, hydrogen bonding networks and π-π stacking structures help dissipate energy and prevent local hot spots. At the same time, conjugated systems and steric hindrance effects can absorb radiation energy.
DuPont™ Vespel® SP-1 parts is also highly corrosion resistant, thanks to the imide ring structure in its molecular chain. This structure is chemically stable, so the surface doesn’t easily react. It holds up well against acids, bases, and organic solvents, and its water absorption is usually under 1%. Some grades can stay stable in dilute acid, but overall, it’s not very hydrolysis resistant—especially in alkaline environments.
The rigid structure of aromatic heterocyclic imide bonds gives the material high hardness—around Rockwell R120-130—while the low surface energy (about 40 mN/m) reduces the friction contact area. Inside, a hydrogen bonding network (with a density of 3.5 × 10²¹/cm³) helps restrict sliding between molecular chains and delays the micro-cracking that happens during wear. Such a high hydrogen bond density also slows down the formation of micro-cracks and abrasive debris.
As for flame retardancy, once Vespel SP-1 machined parts catches fire, its aromatic ring structure tends to char first, forming a continuous insulating layer that blocks flammable gases from escaping. At the same time, it releases inert gases like carbon dioxide and nitrogen into the air, which dilutes the oxygen concentration and helps slow down the flame.
Vespel SP-1 parts is made from pure polyimide resin, and it really stands out because of its excellent heat resistance and chemical resistance. These awesome features make it a go-to material for all sorts of modern industrial uses.
Here’s where you’ll see it in action:
1. In aviation, it pops up in things like engines, compressor parts, and fuel system components.
2. Over in the automotive sector, it’s used for engine parts, bearings, piston sleeves, and gears.
3. For electronics and electrical applications, it’s perfect for heat-resistant high-temperature components and insulating parts.
4. And in mechanical fields, it shines in high-temperature resistant and self-lubricating components.
We supply GG123 material that fully matches DuPont Vespel SP-1 standard, featuring the highest purity and elongation among the SP series. Adopting 100% pure polyimide resin without adulteration, the material maintains stable physical properties, excellent wear resistance and electrical insulation across ultra-wide temperature environments, ensuring consistent batch performance for precision industrial parts.
Aiming at the special characteristics of thermosetting PI materials that cannot be secondary-shaped and are prone to cracking and burrs during cutting, we adopt standardized hot pressing forming + precision CNC machining & laser cutting composite technology. The process effectively avoids tool wear, edge cracking and dimensional errors, delivering high-precision finished parts with tolerance up to ±0.02mm.
We support full personalized customization services, covering custom sizes, structural shapes and non-standard precision parts. Compatible with mainstream 2D/3D drawing formats, we also accept sample-based reverse customization and structural optimization design. Customized PI parts such as insulation components, valve seats, thrust bearings and separation claws can be tailor-made according to customer working conditions.
As a professional manufacturer of high-performance engineering plastics, we implement full-process quality supervision from raw material procurement to finished product delivery. All raw materials are sourced from reputable brands with complete material test reports. Our products pass ISO9001, SGS, CE, RoHS and REACH certifications, fully complying with international environmental and quality standards.
Backed by a 100+ professional R&D team and high-standard production facilities including four-axis & five-axis machining centers, laser cutting equipment and Class 100,000 dust-free workshops, we own multiple utility model patents. With 14 years of industry experience, we continuously optimize production processes to balance product high performance and cost competitiveness.
We support flexible order policies, with the MOQ as low as 1 piece for semi-finished profiles and customized parts. In-stock products support fast shipment, while customized orders adopt efficient production scheduling to ensure reasonable lead time. We cooperate with mainstream international logistics such as DHL and FedEx to provide fast and safe global delivery solutions.
We provide professional one-stop technical support and long-term after-sales troubleshooting. We support signing official confidentiality agreements for customer drawings and customized solutions, strictly protecting customer design data and project privacy. For qualified quality problems, we provide free replacement and logistics compensation services to eliminate cooperation risks.
Founded in 2011, our Hong Kong registered company and Guangzhou factory have long served thousands of customers in Europe, America, the Middle East, Japan, South Korea and Southeast Asia. With stable product quality and standardized foreign trade service system, we have accumulated good market reputation and reliable industrial project service experience.
For semi-finished profiles, we’re flexible—you can start with a small order. If you need custom parts, just give us the details like how they'll be made and the size, and we’ll work out what makes sense.
We’re ISO9001:2008 certified for quality management. Our products also carry SGS, CE, and RoHS marks, and meet environmental standards like REACH, EN71, and others.
We accept all the common file types you’re likely using—STEP, STP, STL, you name it. Or if it’s easier, just send us a physical sample and we’ll work from that. Have your own design or want to tweak something? We can help design or adjust the product to match what you need.
If we have it in stock, we can ship as soon as payment comes through. For custom orders, timing depends on the quantity and process—so let’s talk specifics and we’ll give you a clear timeline.
We’ve been specializing in custom engineering plastic profiles and parts for over 14 years, and we’ve picked up several patents along the way. Our team uses advanced equipment and know-how to keep improving our processes—that helps us keep costs competitive while delivering solid value. We’ve already served thousands of customers, both locally and overseas, and they keep coming back.
We run a full quality control system with advanced testing gear and our own lab. Our staff checks every step—from raw materials right through to the finished product—so you always receive top-quality items.
We're GuangZhou Ideal, a Chinese manufacturer that specializes in Vespel SP-1 Parts. With our advanced production gear and years of hands-on experience, we're committed to delivering high-quality products and services to our customers. If you've got any related needs, just drop us a line – we'll hook you up with high-end products at prices that suit you. Can't wait to work together!
