Ideal Plastic is a professional Vespel SP-22 Plates manufacturer. Vespel SP-22 Plate is a premium modified polyimide (PI) composite material reinforced with 40% graphite filler, presenting a pure black appearance with stable internal molecular structure. Different from ordinary pure PI materials, the added graphite greatly optimizes the material’s thermal expansion performance and friction resistance, achieving a perfect balance between high temperature resistance, wear resistance and ultra-high dimensional stability.
Polyimide materials are classified into aliphatic, semi-aromatic and aromatic types according to structural differences, and divided into cross-linked and non-cross-linked types based on molecular bonding methods. Synthesized by condensation reaction of dianhydride and diamine, partial PI materials support thermoplastic processing such as injection molding and extrusion, while thermoset PI materials deliver stronger heat resistance and mechanical stability.
As a mature thermoset modified PI grade, Vespel SP-22 plate retains the ultimate performance advantages of polyimide and makes up for the dimensional deviation defects of ordinary PI materials in extreme temperature environments.
Products Data
|
Product name
|
Polyimide SP-22 plate
|
|
Material
|
Pure polyimide with 40% graphite
|
|
Color
|
black
|
|
Width
|
600mm, 1000mm
|
|
Thickness
|
5mm - 100mm
|
|
Tolerance
|
±0.02mm
|
|
sample
|
Negotiation
|
|
Minimum order quantity
|
1 piece
|
|
Certificates
|
ISO9001:2008, REACH, ROHS
|
|
Additional services
|
Secondary processing can be provided.
|
Core Performance Advantages of Vespel SP-22 Graphite Filled PI Plate
Benefiting from 40% graphite modification and high-quality polyimide substrate, Vespel SP-22 plates break through the performance limitations of ordinary engineering plastics, with five core ultra-industrial properties suitable for extreme working conditions:
1. Ultra-low Thermal Expansion & Extreme Dimensional Stability
The stable graphite molecular structure greatly reduces the thermal expansion coefficient of the material, making its expansion rate close to aluminum and steel materials. Ordinary PI materials have a thermal expansion coefficient of 2–3 × 10⁻⁵/°C, while SP-22 graphite-filled PI plates reach an ultra-low level of 10⁻⁶ to 10⁻⁷/°C. In the extreme temperature range of -260°C to 330°C, the overall dimensional change is less than 0.1%, and it will not expand or shrink due to temperature and humidity changes, fully meeting the ultra-high precision matching requirements of industrial precision parts.
2. Full-range Extreme Temperature Resistance
These products maintain stable mechanical strength and structural performance in the ultra-wide temperature range from -200°C low temperature to 300°C high temperature. It will not soften, deform or age in long-term high-temperature working environments, and will not brittle or crack in ultra-low temperature scenes. It is widely applicable to aerospace engine peripheral parts, automotive high-temperature components and high-temperature electronic equipment accessories that require long-term extreme temperature resistance.
3. Excellent Chemical Corrosion Resistance
This graphite-filled PI material has super chemical stability, adapting to a wide pH range of 1–14, and can resist erosion of strong acid, strong alkali and most organic solvents. It is only soluble in a few special solvents such as NMP and DMF. In addition, the material supports repeated disinfection and cleaning without structural damage or performance attenuation, which is very suitable for medical equipment and food packaging contact scenarios with high hygiene and corrosion resistance requirements.
4. Superior Radiation Resistance & Structural Toughness
The unique aromatic ring molecular structure of polyimide can effectively disperse radiation energy and prevent molecular chain breakage. Even at a high temperature of 300°C, the material can retain more than 85% of its original mechanical strength. Currently, Vespel SP-22 plate is one of the few organic materials that can simultaneously withstand ultra-high temperature above 400°C, ultra-high insulation resistance above 10¹⁶ Ω·cm and super radiation dose above 5 × 10⁷ Gy, with incomparable radiation resistance advantages over ordinary engineering plastics.
5. Low Friction & Wear Resistance
The uniform graphite filler forms a stable self-lubricating layer on the material surface, effectively reducing the friction coefficient. While ensuring high dimensional stability, it greatly improves the wear resistance of the material, adapting to long-term high-frequency friction working conditions. It is the preferred material for manufacturing high-performance bearings, gears and brake accessories. (Note: Graphite filling will slightly reduce the bending modulus, which is a reasonable performance trade-off for comprehensive extreme working condition adaptation.)
Diversified Industrial Application Scenarios
Relying on extreme temperature resistance, precision stability, corrosion resistance and radiation resistance, Vespel SP-22 graphite filled polyimide plates cover multiple high-end industrial fields, solving the material failure problems of ordinary plastics in extreme environments:

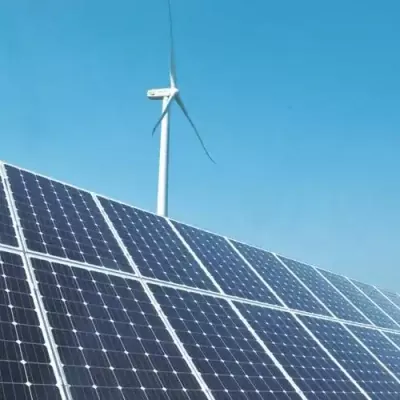

New Energy Industry: High-temperature resistant insulating parts, precision structural accessories for new energy equipment, anti-corrosion and wear-resistant support parts

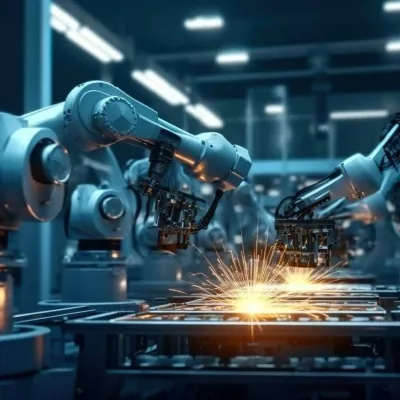

Industrial Processing: High-precision fixture plates, wear-resistant transmission parts, high-temperature processing equipment accessories

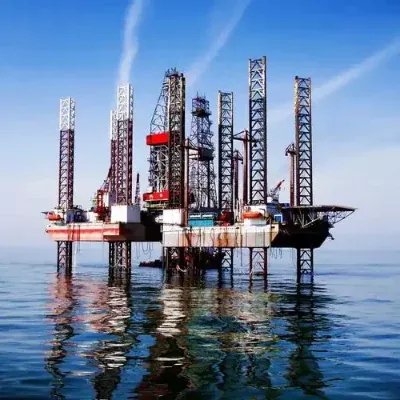

Marine Technology: Anti-corrosion and high-temperature resistant structural parts adapting to marine humid and salt fog environment

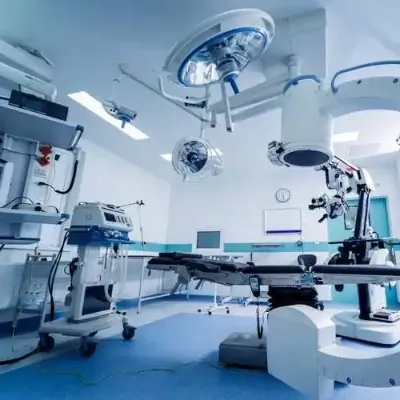

Medical Equipment: Repeatedly disinfected medical structural parts, hygienic and corrosion-resistant instrument accessories

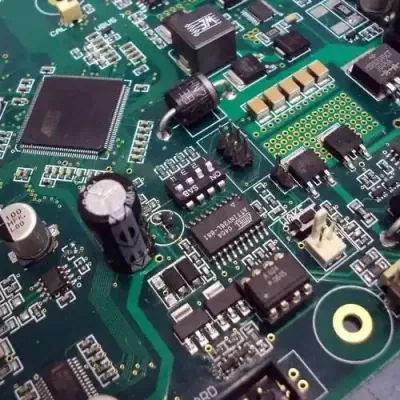

Electronics & Appliances: High-temperature insulating gaskets, precision electronic support parts, radiation-resistant electronic components

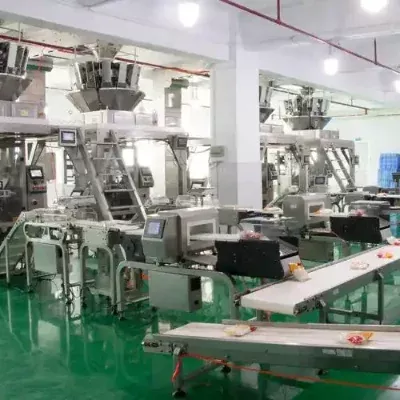

Food Packaging: Food-grade contact accessories resistant to high-temperature sterilization and chemical cleaning
New Energy
Industrial Processing
Marine Technology
Medical Equipment
Electronics and Appliances
Food Packaging
Ideal Plastic Factory Strength & Service Advantages
Specializing in the R&D and mass production of polyimide (PI) series materials since 2011, Guangzhou Ideal Plastic has accumulated rich industrial experience in Vespel SP-22 plate manufacturing. We deliver stable, high-quality and cost-effective supply services for global industrial buyers with comprehensive factory strengths, detailed advantages are listed as follows:
Mature R&D and Production Capacity:
With more than 10 years of technical precipitation in the engineering plastic industry, we have built dedicated and independent production lines for Vespel SP-22 graphite-filled polyimide plates. Supported by a professional team of nearly 100 technical R&D personnel and front-line technicians, we own multiple utility model patents to realize independent innovation and iterative optimization of product formulas and production processes.
Full-process Quality Control & Complete Certification:
We implement strict internal testing procedures covering raw material screening, formula modification, thermoforming and finished product inspection. All Vespel SP-22 plates have passed ISO9001 quality management system certification, as well as REACH and RoHS environmental certification, ensuring stable batch consistency and compliance with global industrial application standards.
Adequate Inventory & Fast Delivery Support:
Standard-specification SP-22 plates are kept in sufficient stock all year round. We support rapid order arrangement and immediate shipment after payment, effectively solving customers’ urgent procurement and short-cycle production demands.
Reliable Sample & Batch Consistency:
Free stock sample testing services are available for customers to verify product performance. All bulk ordered products strictly maintain the same material composition, dimensional accuracy and physical properties as the confirmed samples, eliminating performance deviation risks.
One-stop Custom Processing Solution:
Equipped with complete precision processing equipment, we support secondary deep processing of the product. We can provide integrated services from raw plate supply, size cutting and precision machining to finished part customization, helping customers save procurement links, reduce comprehensive costs and shorten production cycles.
FAQs
Q1: What are the unique advantages of the product compared with ordinary PI plates?
A: Vespel SP-22 plate is modified with 40% graphite, which greatly optimizes thermal expansion performance and friction wear resistance. It has ultra-high dimensional stability close to metal materials, stable performance in extreme temperature and humidity environments, and is more suitable for high-precision and high-friction industrial scenarios than ordinary pure PI plates.
Q2: What is the minimum order quantity for SP-22 polyimide plates?
A: We support ultra-low threshold procurement, with a minimum order quantity of 1 piece for standard semi-finished plates, which is convenient for customers to conduct small-batch testing and trial production. The MOQ of customized processed parts will be reasonably negotiated according to product size and processing technology.
Q3: Can I get free samples for performance verification?
A: Yes. We provide free stock samples of conventional Vespel SP-22 plates for customer performance testing, customers only need to bear the freight. All bulk products are strictly consistent with sample performance, size and quality to ensure no difference between trial order and mass order.
Q4: How to guarantee your product quality and performance?
A: We adopt high-quality internationally renowned brand raw materials, with complete raw material inspection reports and traceable batch quality. The products have passed ISO9001 quality management system certification, REACH and RoHS environmental certification. With self-owned patented formulas and standardized production processes, all products reach industry-leading extreme performance indicators, and we can provide detailed physical property data sheets at any time.
Q5: What is your delivery cycle?
A: Conventional in-stock SP-22 plates support immediate shipment after payment. For customized size plates and secondary processing products, we will formulate a targeted production cycle according to order quantity and processing difficulty to ensure efficient and punctual delivery.
Q6: What logistics methods do you support?
A: We cooperate with mature international logistics channels such as DHL and FedEx, supporting fast air freight and stable sea freight. Customers can also designate their own freight forwarders for delivery. The freight cost is calculated according to product size, weight and destination, borne by the customer.
Professional Customization & Bulk Wholesale Inquiry
Whether you need standard Vespel SP-22 plate bulk wholesale, special size customization or precision secondary processing services,
welcome to contact our professional technical sales team. We provide free product performance consultation, customized solution design and full-cycle after-sales service, adhering to stable quality and efficient service to create long-term cooperative value for global industrial customers.
