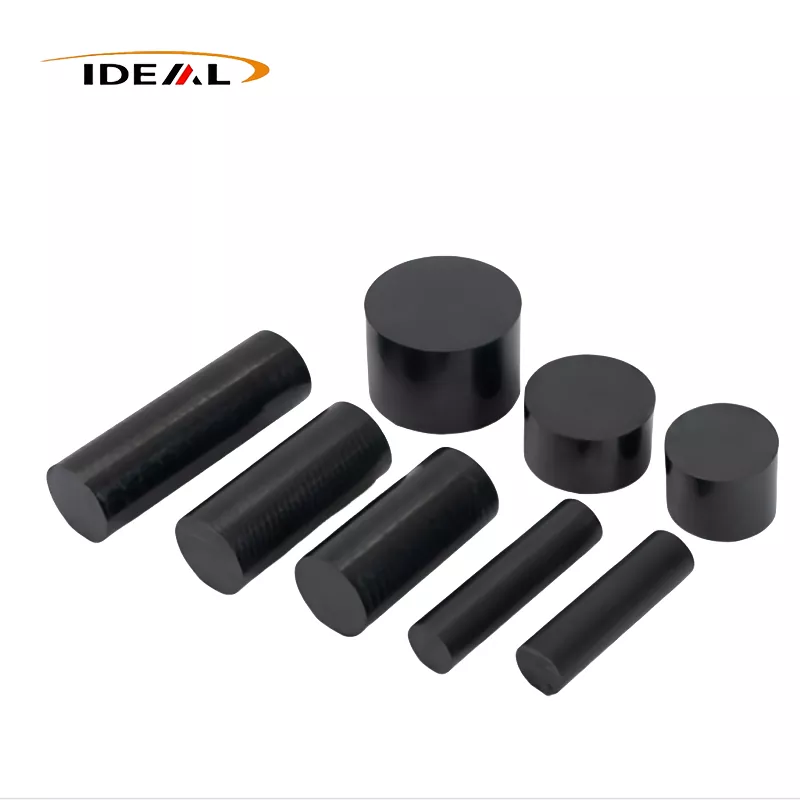

Ideal Plastic is a China manufacturer and supplier of Carbon Fiber Reinforced PEEK Rods, providing high-performance PEEK materials designed for applications requiring high strength, stiffness, wear resistance and dimensional stability. With a diameter range of 5mm-300mm and tolerance of ±0.02mm, these rods are suitable for precision components in industries including mechanical equipment, petrochemical, semiconductor and precision instruments.
1. High Strength and Stiffness
Carbon fiber reinforced PEEK rods provide significantly improved mechanical strength. The tensile strength reaches 170-210MPa with a modulus of 15-22GPa, which is higher than pure PEEK materials with 90-100MPa tensile strength and 3-4GPa modulus.
2. Improved Creep Resistance
The carbon fiber structure helps the material maintain its shape under continuous pressure and elevated temperatures, reducing deformation during long-term operation.
3. Better Thermal Stability
Carbon fiber helps reduce thermal expansion and contraction caused by temperature changes, allowing the material to maintain dimensional accuracy in precision applications.
4. Enhanced Wear Performance
The reinforcement improves surface hardness and creates a stronger wear-resistant layer, making the rods suitable for sliding components and applications involving friction.
5. Improved Thermal Conductivity
Compared with pure PEEK, carbon fiber reinforcement improves heat transfer capability by approximately 3.5 times, helping dissipate heat during continuous operation.
6. Electrical Performance
Carbon fiber provides electrical conductivity, allowing the normally insulating PEEK material to be used in applications requiring static control or electrical conductivity.
The following specifications describe the standard production range of Carbon Fiber Reinforced PEEK Rods. Product dimensions and material requirements can be selected according to application needs.
| Product name | Carbon fiber reinforced PEEK rods |
| Material | 5% -30% Glass Fiber Filled PEEK |
| Color | black |
| Dia | 5mm-300mm |
| Length | 1000mm or 3000mm |
| Tolerance | +/-0.02mm |
| sample | Free |
| Minimum order quantity | 1 piece |
| Certificates | ISO9001:2008, REACH, ROHS |
Compared with pure PEEK, carbon fiber reinforced material provides stronger mechanical performance and better stability for applications where higher load capacity and wear resistance are required.
| Properties | Pure PEEK | Carbon Fiber Reinforced PEEK |
| Tensile Strength | 90-100MPa | 170-210MPa |
| Modulus | 3-4GPa | 15-22GPa |
| Bending Strength | 140-150MPa | 280-300MPa |
| Thermal Conductivity | Standard performance | Approximately 3.5 times higher than pure PEEK |
| Wear Resistance | Good | Improved by carbon fiber reinforcement |
Due to its combination of mechanical strength, chemical resistance and temperature stability, Carbon Fiber Reinforced PEEK Rods are used for components that require reliable performance in challenging environments.
1. Mechanical Equipment
The material provides low friction performance, heat resistance and dimensional stability, making it suitable for wear parts, precision components and mechanical elements operating under demanding conditions.
2. Petrochemical Industry
Carbon fiber reinforced PEEK rods offer resistance to heat and corrosion. They are used for components such as valves, seals, transport pipes, pipe bundles and oil drilling tools.
3. Medical Equipment
PEEK materials are known for biocompatibility and sterilization resistance, allowing them to be used in medical components including surgical tools and related applications.
4. Semiconductor Industry
PEEK provides insulation properties and low dielectric loss, making it suitable for high-frequency connectors, electronic packages and semiconductor-related precision components.
Ideal Plastic produces Carbon Fiber Reinforced PEEK Rods through extrusion molding. The manufacturing process includes material selection, production control and physical performance testing to maintain consistent product quality.
All raw resin materials are sourced from trusted manufacturers. Each production batch is tested before delivery to ensure the finished rods meet required performance and environmental standards.
The company selects qualified PEEK resin and reinforcement materials for production. Material inspection is carried out before processing to support stable product performance.
Standardized production procedures and testing processes are applied throughout manufacturing. This helps maintain dimensional accuracy and product consistency for different application requirements.
Ideal Plastic focuses on maintaining stable quality throughout the manufacturing process of Carbon Fiber Reinforced PEEK Rods. The company has more than fourteen years of experience working with PEEK materials and has developed production methods for carbon fiber reinforced products. From raw material selection to finished product inspection, each step follows controlled procedures to ensure reliable performance.
The company uses raw materials from well-known manufacturers and performs inspection before production. During manufacturing, physical and environmental tests are carried out to verify product performance and ensure that the finished products meet application requirements.
The quality management system and available certifications include ISO9001:2008, REACH and ROHS standards, supporting customers who require documented material compliance for industrial applications.
Ideal Plastic provides customized solutions according to different application requirements. Customers can provide drawings or samples for evaluation, and the company can support machining requirements based on product dimensions and usage conditions.
For customized products, customers can provide common drawing formats including STEP, STP, STL or IGS files. If a physical sample is available, the product dimensions can also be measured for further processing.
1. Size Adjustment
Different diameter and length requirements can be discussed according to application needs.
2. Machining Support
The material can be processed into precision components according to customer drawings or samples.
3. Application Evaluation
Ideal Plastic can evaluate suitable material solutions according to operating environments and performance requirements.
A: Standard profiles can be ordered from one piece. Customized machined parts depend on product complexity and requirements.
A: Yes. Customers can provide drawings or samples, and Ideal Plastic can evaluate customized processing requirements.
A: The products are available with ISO9001:2008, REACH and ROHS certifications.
A: Customers can provide product drawings, samples, dimensions or application requirements for evaluation.
A: The rods are manufactured through extrusion molding with controlled production procedures and testing processes.
A: They are used in mechanical equipment, petrochemical, medical equipment, semiconductor and precision instrument applications.
