Ideal Plastic is a China manufacturer specializing in high-performance engineering plastic materials. Our PEEK GF30 Rods are reinforced with 30% glass fiber to provide improved stiffness, wear resistance, dimensional stability, and mechanical performance for demanding industrial applications. With more than 14 years of technology accumulation, Ideal Plastic provides reliable PEEK solutions with mature production technology, strict quality control, and free sample support.

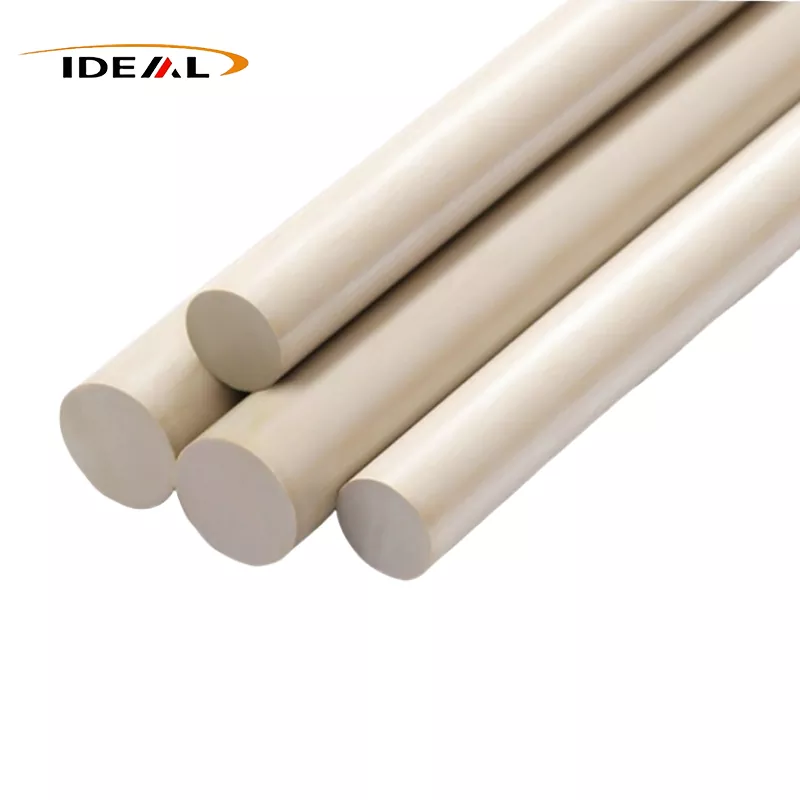

PEEK GF30 Rods are glass fiber reinforced PEEK rods supplied by Ideal Plastic, a China supplier of high-performance engineering plastic profiles. By adding 30% glass fiber into polyetheretherketone material, these rods achieve enhanced rigidity, improved wear resistance, and better dimensional stability compared with standard PEEK materials. The reinforced structure makes them suitable for manufacturing mechanical components that require long-term performance under high load, friction, temperature changes, and chemical exposure.
GuangZhou Ideal after more than 14 years of technology accumulation, the filling amount of glass fiber in PEEK material can reach 10%-30%, and the technology is very mature. The tensile strength of Glass fiber reinforced PEEK rod produced and sold by us can be easily increased to more than 150MPa, the rigidity has more than doubled, the thermal deformation temperature has increased significantly, the strength and modulus of the material have been improved to a certain extent, the loss resistance is better, and the thermal expansion coefficient is smaller.
Polyetheretherketone (PEEK) is a semi-crystalline aromatic thermoplastic polymer with a rigid molecular structure containing benzene rings, ether bonds, and ketone carbonyl groups. This special structure provides PEEK materials with excellent temperature resistance, mechanical strength, chemical resistance, and biocompatibility. After glass fiber reinforcement, the material performance is further improved, making it suitable for precision parts used in industrial equipment, aviation, pharmaceutical machinery, and other fields.The basic performance of PEEK is maintained after glass fiber modification. The reinforced structure helps the rods achieve better performance in applications requiring strength, stability, and resistance to mechanical stress.
The main improvements include:
1. Enhanced mechanical strength: Glass fiber reinforcement improves tensile strength and bending stiffness, allowing the material to maintain stable dimensions under continuous loading conditions.
2. Improved wear resistance: The reinforced PEEK structure provides better resistance against friction and mechanical wear, making it suitable for parts such as bearings, seals, and mechanical components.
3. Better dimensional stability: The addition of glass fiber reduces thermal expansion and helps maintain accurate dimensions during temperature changes.
The following specifications are based on the standard product information provided by Ideal Plastic. Customers can select suitable sizes according to different processing requirements.
| Product name | Glass Fiber Filled PEEK Rod |
| Material | 30% Glass Fiber Filled PEEK |
| Color | Nature |
| Dia | 5mm-300mm |
| Length | 1000mm or 3000mm |
| Tolerance | +/-0.02mm |
| Sample | Free |
| Minimum order quantity | 1 piece |
| Certificates | ISO9001:2008, REACH, ROHS |
PEEK GF30 Rods combine the advantages of PEEK resin and glass fiber reinforcement. They are designed for applications where standard engineering plastics cannot meet requirements for strength, wear resistance, and long-term stability.
Glass fiber reinforced polyetheretherketone plastic has higher tensile strength and bending stiffness. Under high load conditions, the material can maintain structural stability and reduce deformation, making it suitable for precision mechanical parts that require reliable strength.
PEEK materials have excellent sliding characteristics, low friction coefficient, and good wear resistance. These properties allow PEEK GF30 Rods to be used in mechanical transmission parts, bearings, and other components requiring stable friction performance.
After adding reinforcing materials such as glass fiber, the wear resistance and mechanical strength of the material are further improved, helping components maintain longer service life during operation.
PEEK GF30 Rods have excellent fatigue resistance and can withstand repeated loading, vibration, and impact forces during long-term operation. The reinforced structure helps reduce the risk of fatigue cracks and material failure, making them suitable for mechanical components that require stable performance over extended working periods.
Glass fiber reinforced PEEK materials can withstand high-dose ionizing radiation, including γ-ray and X-ray environments. The mechanical and chemical properties remain relatively stable after radiation exposure, which allows the material to be used in applications such as nuclear industry components and medical radiation equipment.
The addition of glass fiber improves the wear resistance of polyetheretherketone materials. PEEK GF30 Rods can operate under high-load and high-speed friction conditions while maintaining good mechanical performance, making them suitable for manufacturing wear-resistant engineering plastic components.
Compared with many traditional engineering plastics, reinforced PEEK materials provide better durability in demanding environments where continuous friction and mechanical stress are common.
One important advantage of reinforced PEEK material is its ability to maintain dimensional accuracy under changing environmental conditions. The material has low moisture absorption and a low thermal expansion coefficient, helping finished components maintain their original size and shape during temperature and humidity changes.
Due to its combination of strength, wear resistance, chemical resistance, and dimensional stability, PEEK GF30 Rods can be processed into various high-performance components. These rods are commonly used for parts requiring reliable operation under mechanical stress and harsh working environments.
Typical application fields include:
1. Industrial applications: Used for manufacturing mechanical parts, wear-resistant components, bearings, valves, gears, and seals that require stable performance.
2. Aviation industry: The lightweight structure and high-performance characteristics make reinforced PEEK materials suitable for aviation-related components requiring strength and reliability.
3. Pharmaceutical and packaging industries: The material properties support applications where chemical resistance, cleanliness, and stable performance are required.
4. Food processing: PEEK materials can be used in food processing equipment components where wear resistance and dimensional stability are important.
5. Office machinery parts: Suitable for precision mechanical components that require low friction and stable operation.
6. Chemical processing industry: The excellent chemical resistance of PEEK allows it to be applied in environments involving chemical exposure.
Aviation industry
Chemical processing industry

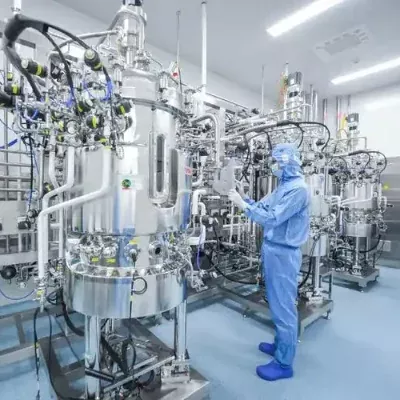

food processing

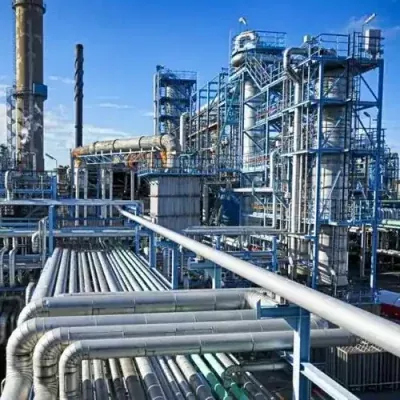

Industrial applications

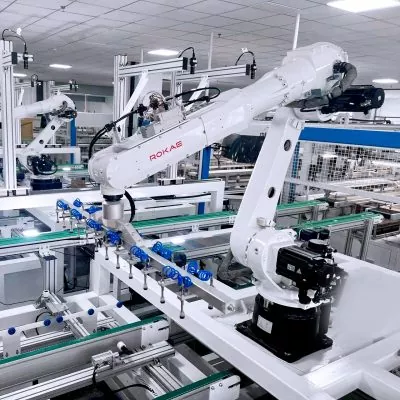

Office machinery parts

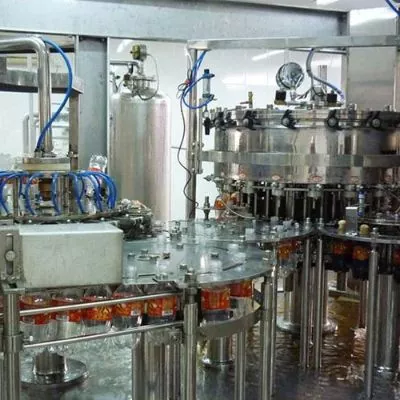

Pharmaceutical and packaging industries
Different industries have different requirements for engineering plastic materials. Ideal Plastic provides PEEK GF30 Rods with stable quality and mature processing technology to support customers in selecting suitable semi-finished plastic profiles for their applications.
With professional experience in high-performance engineering plastics, Ideal Plastic develops and manufactures materials including PEEK, PAI, PI, PPS, PPSU, and PEI. The company also provides CNC machining and injection molding services to help customers transform engineering plastics into finished components.
The combination of material development experience and manufacturing capability allows Ideal Plastic to provide practical solutions for customers requiring customized engineering plastic parts.
The following comparison shows the general differences between standard PEEK materials and glass fiber reinforced PEEK materials based on their material characteristics.
| Item | Standard PEEK | PEEK GF30 |
| Reinforcement | No glass fiber filling | 30% glass fiber filled |
| Stiffness | Good mechanical strength | Higher rigidity and improved structural stability |
| Wear Resistance | Excellent wear resistance | Improved wear resistance under load conditions |
| Thermal Expansion | Low thermal expansion | Lower thermal expansion coefficient after reinforcement |
| Application | General high-performance plastic components | High-load mechanical parts, bearings, seals, valves, and gears |
Ideal Plastic focuses on the development and production of high-performance engineering plastic profiles. With more than 14 years of technical experience, the company has established mature production technology for reinforced PEEK materials.
For PEEK GF30 Rods, Ideal Plastic provides:
1. Stable material performance: Advanced production technology ensures consistent quality between samples and future orders.
2. Sample support: Free sample delivery service is available for customers to check product performance before placing orders.
3. Complete certifications: Products are supplied with ISO9001:2008, REACH, and ROHS certifications.
4. Flexible order quantity: The minimum order quantity is 1 piece, supporting different customer requirements.
5. Processing support: Ideal Plastic provides CNC machining and injection molding services for customized engineering plastic components.
A: PEEK GF30 Rods are PEEK rods reinforced with 30% glass fiber. The reinforcement improves stiffness, wear resistance, and dimensional stability compared with standard PEEK materials.
A: Ideal Plastic develops and manufactures high-performance engineering plastics including PEEK, PAI, PI, PPS, PPSU, and PEI, and also provides CNC machining and injection molding services.
A: Yes. Ideal Plastic provides free samples for semi-finished profiles when available. Customers only need to arrange shipping costs.
A: The product certifications include ISO9001:2008, REACH, and ROHS.
A: According to the product data provided by Ideal Plastic, the diameter range is 5mm-300mm, with lengths of 1000mm or 3000mm.
A: The material is used in industrial applications, aviation industry, pharmaceutical and packaging industries, food processing, office machinery parts, and chemical processing industries.
A: Glass fiber improves the stiffness, tensile strength, wear resistance, and dimensional stability of PEEK materials, making them suitable for higher-load applications.
Ideal Plastic started its business in Hong Kong in 2011 and has developed professional experience in high-performance engineering plastics. The company focuses on the research, development, and manufacturing of semi-finished profiles made from advanced materials such as PEEK, PAI, PI, PPS, PPSU, and PEI.
Through continuous technology development and production improvement, Ideal Plastic provides engineering plastic solutions for customers worldwide. The company combines material knowledge with processing capabilities, including CNC machining and injection molding, to support different industrial requirements.
For customers looking for reliable engineering plastic materials, Ideal Plastic provides stable product quality, professional technical experience, and flexible support from sample confirmation to mass production.
