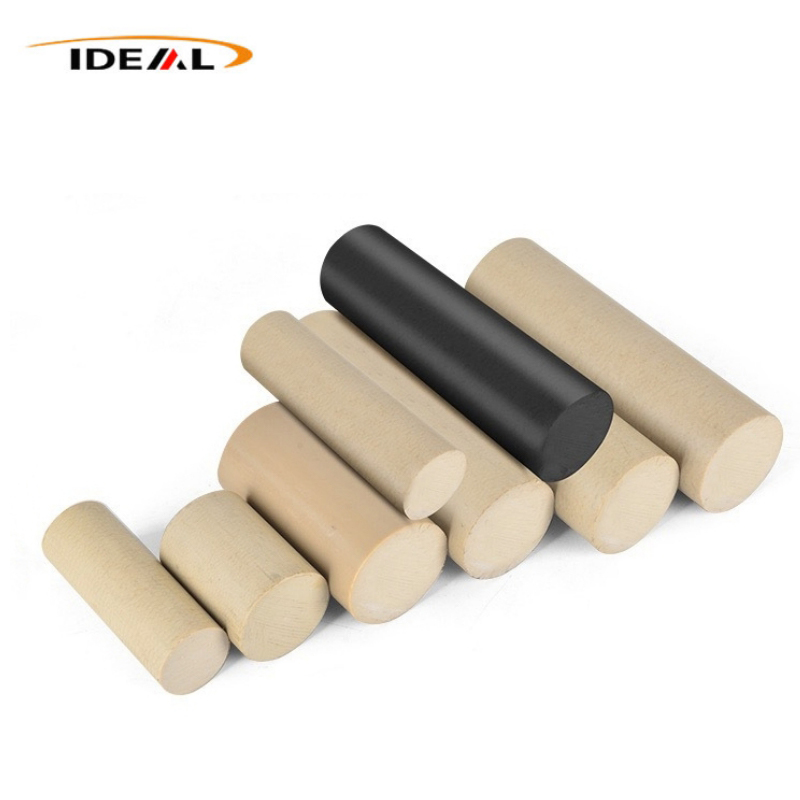

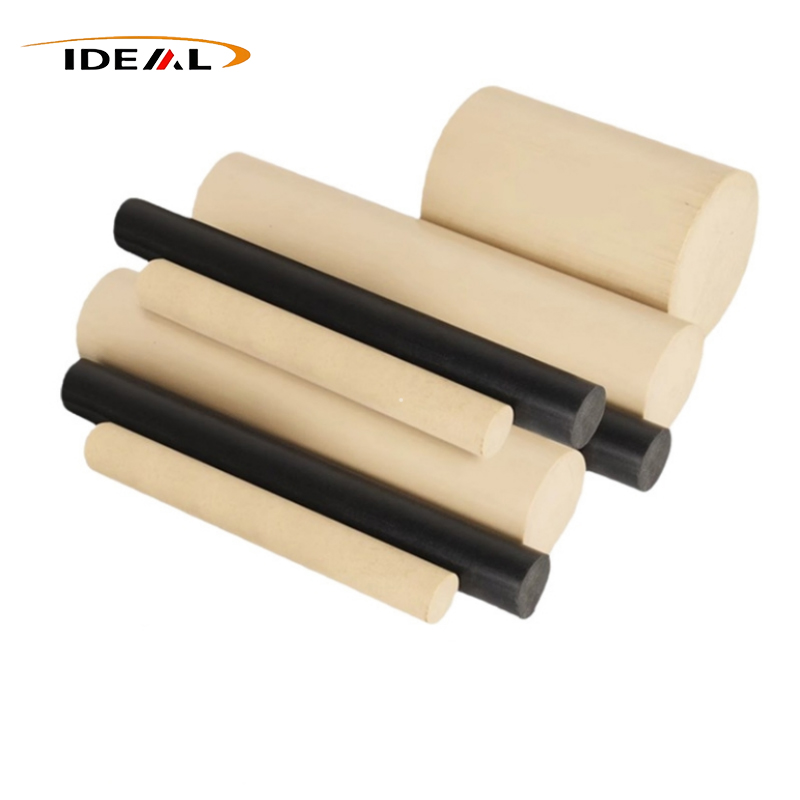

PEEK Rods is a high-performance thermoplastic rod product manufactured by Ideal Plastic. Extruded and processed with strict industrial standards, these PEEK rods feature high dimensional accuracy, excellent high-temperature resistance and stable mechanical properties, fully compliant with ISO, CE, RoHS, REACH and EN71 environmental certification standards. They are widely customized and supplied for aerospace, medical, automotive and industrial automation industries, supporting small-batch single-piece orders and free sample testing to meet diverse precision engineering application needs.
PEEK (Polyether Ether Ketone) is a premium fully aromatic polymer thermoplastic material known as "plastic gold" in the engineering plastics industry. PEEK polymer rods produced by Ideal Plastic are extruded from high-purity imported and domestic brand PEEK raw materials, including unfilled pure PEEK, carbon fiber filled PEEK CA30, glass fiber filled PEEK GF30 and HPV bearing-grade PEEK. With complete product specifications, smooth surface finish and ultra-high dimensional stability, these rods can be further processed via CNC machining, laser cutting and engraving to produce customized precision parts for complex industrial scenarios.
To help customers select the most suitable engineering plastic rod materials, we provide a professional performance comparison between PEEK Rods and other common high-temperature plastic rods, highlighting the unique advantages of PEEK materials in extreme working conditions.
| Material Type | Long-term Temp Resistance | Tensile Strength | Wear Resistance | Chemical Stability | Application Scenarios |
|---|---|---|---|---|---|
| PEEK Rods | 250℃-260℃ | 90-150MPa | Excellent | Resist most acids, bases and solvents | Aerospace, medical, precision automation |
| PI Rods | 240℃-250℃ | 85-120MPa | Good | Good chemical resistance | Electronic insulation, high-temperature fixtures |
| PPS Rods | 200℃-220℃ | 70-90MPa | Medium | Excellent acid and alkali resistance | Ordinary industrial corrosion-resistant parts |
| PPSU Rods | 180℃-200℃ | 65-85MPa | General | Good hydrolysis resistance | Food and medical disposable parts |
Ideal Plastic's PEEK polymer rods integrate multiple superior physical and chemical properties, far exceeding ordinary engineering plastics, adapting to various harsh high-temperature, high-pressure and corrosive industrial environments.
1. Superior Mechanical Performance
Pure PEEK polymer rods own ultra-high tensile strength ranging from 90MPa to 100MPa, while carbon fiber and glass fiber reinforced modified grades can achieve a tensile strength of over 150MPa. The elongation at break of pure PEEK is 20%-50%, and the reinforced version is 5%-15%, endowing the product with outstanding rigidity, creep resistance and structural stability. It can maintain stable mechanical strength without deformation or fatigue damage under long-term static and dynamic load conditions.
2. Extreme Temperature Resistance
PEEK material has a melting point of 343℃, supporting long-term continuous use at 250℃ to 260℃ and short-term instantaneous high-temperature resistance up to 300℃. It will not decompose or produce harmful substances even in a short-term 400℃ high-temperature environment. This excellent high-temperature resistance makes PEEK polymer rods the preferred material for high-temperature equipment structural parts and sealing components.
3. Outstanding Corrosion Resistance
Benefiting from its stable aromatic polymer molecular structure, PEEK polymer rods are insoluble in almost all common organic solvents, acids and alkalis at room temperature, with excellent chemical stability. Only concentrated sulfuric acid can dissolve PEEK materials, which enables the product to work stably in various corrosive chemical industrial environments for a long time.
4. Excellent Fatigue Resistance
Under repeated cyclic loading and long-term dynamic stress, PEEK polymer rods show negligible fatigue failure and structural attenuation. It can withstand millions of cyclic loads, which is incomparable to most plastic materials, and is widely used for mechanical transmission parts, rotating structural components and sports equipment accessories that require long-term stable operation.
5. Stable Electrical Insulation
PEEK rods maintain consistent and reliable electrical insulation performance under wide temperature and humidity variation ranges. It has high volume resistivity and surface resistivity, stable dielectric strength for multi-frequency AC electric fields, and will not lose insulation performance due to environmental humidity and temperature changes, making it an ideal insulating material for electronic and electrical precision equipment.
|
Product name： |
Polyetheretherketone Rods |
|
Material: |
PEEK unfilled, PEEK CA30, PEEK GF30, PEEK HPV bearing grade |
|
Color: |
Nature,black |
|
Dia: |
3mm-300mm |
|
Length: |
1000mm or 3000mm |
|
Tolerance: |
Depends on the sizes |
|
Sample： |
Free |
|
Minimum order quantity: |
1 piece |
|
Certificates: |
ISO9001:2008, REACH, ROHS |
As a professional manufacturer of PEEK polymer rods, Ideal Plastic has complete independent R&D and production capabilities, with standardized production systems and strict quality control procedures to ensure product consistency and reliability.
1. Advanced Production Equipment: The company is equipped with large-scale plastic profile extrusion production lines, four-axis and five-axis CNC machining centers, laser cutting machines, CNC engraving machines and professional testing equipment, as well as a 100,000-class dust-free injection molding workshop, realizing full-process refined production of PEEK polymer rods.
2. Professional R&D Team: It has a professional technical R&D team of more than 100 people and skilled front-line production technicians, with rich experience in formula optimization, mold development and processing technology improvement, and has independently developed hundreds of PEEK profile molds.
3. Strict Quality System: The company has passed ISO9001 quality management system certification, and all products have CE, RoHS, REACH and EN71 environmental certifications. Every batch of products undergoes strict raw material inspection, production process monitoring and finished product performance testing.
4. Rich Industry Experience: With more than 14 years of deep cultivation in the field of high-end special engineering plastics, the company has optimized production processes, improved production efficiency and reduced comprehensive costs, providing cost-effective PEEK Rods and customized processing services for global customers.
With comprehensive superior performance, PEEK Rods can replace metal and ordinary plastic materials, and are widely used in high-end precision manufacturing industries worldwide.
● Aerospace Industry: Used for lightweight structural parts, high-temperature resistant fasteners, insulating components and anti-fatigue mechanical parts of aerospace equipment, reducing equipment weight while ensuring structural safety.
● Medical Device Industry: Compliant with international medical environmental standards, suitable for manufacturing surgical instrument accessories, medical inspection equipment structural parts, and reusable high-temperature sterilized medical components.
● Automotive Industry: Applied to automotive high-temperature engine peripheral parts, wear-resistant transmission parts, new energy vehicle electronic insulating parts and lightweight structural accessories.
● Industrial Automation: Used for precision conveyor parts, wear-resistant bearings, guide rails, sealing rings and other core components of automated production equipment, adapting to long-term high-frequency operation scenarios.
● Optoelectronic & Communication Industry: Served as high-precision insulating structural parts and anti-corrosion accessories for optoelectronic equipment and communication base station equipment, ensuring stable signal transmission and equipment operation.
Aerospace
Automotive Industry
Communication Equipment
Industrial Automation
Medical Devices
Optoelectronic Industry
Ideal Plastic provides full-cycle customized processing services for PEEK Rods, meeting the personalized size and structural needs of different industrial customers.
● Size Customization: On the basis of standard diameter and length specifications, support non-standard size cutting, lengthening and diameter customization to adapt to special equipment installation dimensions.
● Precision Machining: Provide CNC turning, milling, drilling, grooving, laser cutting and engraving processing.
● Multi-format Drawing Support: Accept mainstream drawing formats such as STEP, STP, STL, IGS, IGES, PRT, SLDPRT, SAT and X_T. Customers can also provide physical samples for data scanning and reverse customization.
● Confidential Service: Support signing confidential agreements for customer customized drawings and product solutions, strictly protect customer technical data and project privacy, and bear corresponding legal responsibilities.
Q1: What kind of company is Ideal Plastic?
A1: Guangzhou Ideal Plastic Technology Co., Ltd. was registered in Hong Kong in 2011, with factory and R&D center located in Huangpu District, Guangzhou. It is a high-tech enterprise focusing on R&D, production and customized processing of special engineering plastic profiles such as PEEK, PI, PAI, PPS, PPSU and PEI.
Q2: Is the performance of your PEEK polymer rods reliable?
A2: All raw materials are purchased from well-known domestic and foreign brands with complete material inspection reports. All products meet industry-leading performance standards, and complete product parameter sheets can be provided for customer verification.
Q3: What quality guarantees do your products have?
A3: We have a complete quality control system and professional testing equipment, implementing full-process quality inspection from raw material entry to finished product delivery. Products have ISO, CE, RoHS, REACH and EN71 certifications to ensure stable and qualified quality.
Q4: Can I get free PEEK Rod samples?
A4: Free stock samples are available for testing, customers only need to bear the freight cost. The formal order products are completely consistent with the sample performance and specifications.
Q5: What is your MOQ?
A5: Standard PEEK rod semi-finished profiles support single-piece orders. The MOQ of customized processed products is negotiable according to processing technology and product dimensions.
Q6: What is your production and delivery cycle?
A6: In-stock standard PEEK rods can be delivered immediately after payment. The production cycle of customized products is reasonably negotiated according to order quantity and processing difficulty.
Q7: What after-sales services do you provide?
A7: We provide professional technical consultation and after-sales problem solving services. For products with quality or assembly tolerance problems, we support free return and exchange, and bear the corresponding logistics costs after verification.
