As a professional China manufacturer, Ideal Plastic supplies custom and standard PEEK Plastic Rods. Supported by mature extrusion and compression molding processes, our rods range from 3mm‑300mm in diameter and deliver outstanding high‑temperature resistance, wear resistance and dimensional stability. Compliant with ISO9001, CE, RoHS, REACH and EN71, we offer dependable material solutions for global industrial precision manufacturing.
As a high‑end special engineering plastic profile, PEEK Plastic Rods produced by Ideal Plastic have comprehensive and superior performance without obvious performance shortcomings, far exceeding traditional plastic materials and comparable to partial metal materials, with multiple core industrial advantages.
The product has high strength, high rigidity and excellent fatigue resistance, with tensile and bending mechanical properties close to metal materials. It has good toughness and impact resistance, and will not crack or deform under sudden impact and long‑term alternating loads. It can maintain stable structural performance under complex mechanical working conditions, ensuring the long‑term service life of precision mechanical parts.
PEEK Plastic Rods have natural low‑friction self‑lubricating characteristics, with a friction coefficient between 0.15 and 0.35, showing excellent wear resistance. After carbon fiber, graphite and PTFE composite modification, the friction loss is further reduced, which can effectively adapt to high‑frequency friction working scenarios of gears, bearings and sliding parts.
1. High‑temperature aging resistance: The rod can work stably for a long time in a high‑temperature environment above 250°C, with no molecular decomposition or performance attenuation.
2. Radiation resistance: It keeps mechanical properties under high‑dose gamma ray irradiation, suitable for nuclear and aerospace related parts.
3. Hydrolysis resistance: It will not swell, deform or degrade in damp and long‑term underwater environments, fitting marine engineering equipment.
4. Chemical stability: It stays stable within pH 1‑14 and bears pressure up to 700kg/cm² for chemical sealing components.
All PEEK Plastic Rods adopt standardized production processes, with complete specifications for bulk supply and custom orders.
| Parameter Item | Detailed Specification |
|---|---|
| Product Name | Polyetheretherketone Rod (PEEK Plastic Rod) |
| Material Type | Pure PEEK, Fiber‑Reinforced PEEK, Wear‑Resistant Modified PEEK |

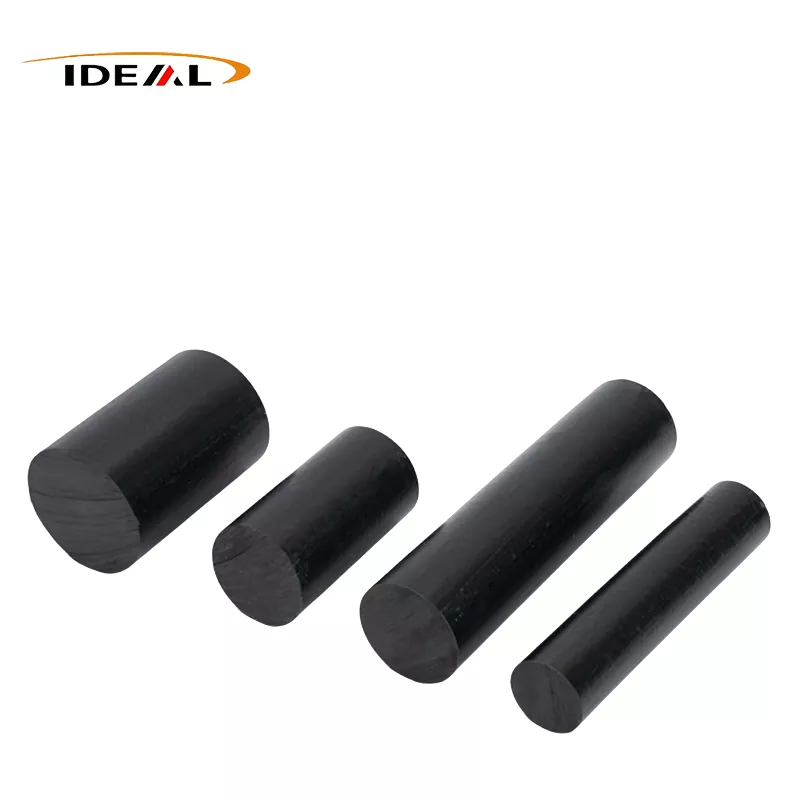

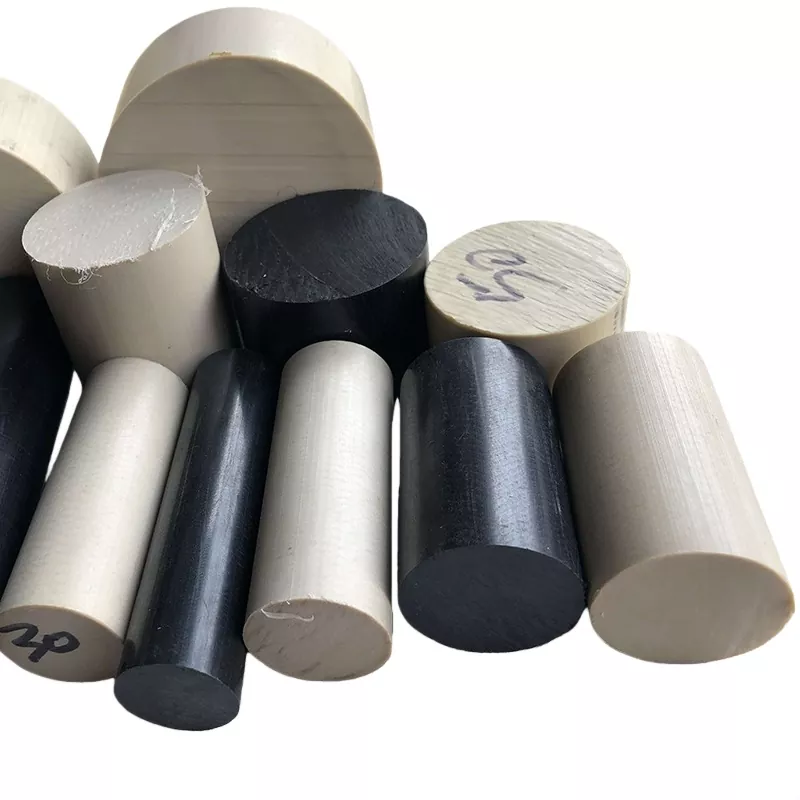

| Color | Natural Original Color, Black |
| Diameter Range | 3mm‑300mm |
| Standard Length | 1000mm, 3000mm |
| Size Tolerance | Determined by specific product size |
| Sample Service | Free Sample Support (Customers bear freight cost) |
| Minimum Order Quantity | 1 Piece |
| Product Certifications | ISO9001:2008, CE, RoHS, REACH, EN71 |
Ideal Plastic divides PEEK Plastic Rods into four main grades by formula, each oriented toward different industrial working conditions.
1. Unfilled PEEK Plastic Rods
Made of 100% pure imported PEEK resin without filler. It delivers the highest toughness and elongation of the PEEK series, good flexibility and chemical resistance, suitable for instrument parts and flexible seals.
2. Carbon Fiber Filled PEEK Plastic Rods
Carbon fiber modified grade gains better impact, wear and chemical resistance, lower thermal expansion and higher load capacity. It resists creep under sustained high‑temperature and heavy‑load conditions.
3. Fiberglass Filled PEEK Plastic Rods
Fiberglass reinforcement improves rigidity, hardness and dimensional stability. Creep performance is enhanced for precision structural components with strict size requirements.
4. Wear‑Resistant Modified PEEK Plastic Rods
Compound blended with PTFE, graphite and carbon fiber. It achieves ultra‑low friction coefficient and outstanding self‑lubrication for gears, bearings and sliding assemblies.
Benefiting from comprehensive material performance, PEEK Plastic Rods are widely adopted across multiple demanding industries.
1. Electronic & Electrical
High‑grade insulation property keeps stable performance under high‑temperature, high‑voltage and humid environments for chip carriers and insulating components.
2. Chemical Sealing
Broad chemical compatibility and high‑pressure endurance make it fit for high‑pressure pipeline seals and dynamic sealing assemblies.
3. Precision Machinery
Combines self‑lubrication, heat resistance and dimensional stability for wear‑resistant mechanical parts and transmission components.
4. Aerospace & Military
Light‑weight, radiation‑resistant and insulating properties apply to satellite structures and radar‑related components.
5. Medical Devices
Stands repeated sterilization cycles, applied to reusable medical tool accessories.
6. Coal & Metallurgy
Handles harsh high‑temperature environment for furnace insulation and sealing spare parts.
As an experienced factory, Ideal Plastic maintains strict control over PEEK Plastic Rods from raw material procurement to finished‑goods delivery to secure consistent product quality.
1. Raw material control
Only qualified brand‑name resin is adopted. Every incoming batch is verified before entering production flow.
2. Production & testing capacity
Equipped with forming lines and testing instruments, we perform dimension and appearance inspection for each production batch according to ISO9001 requirements.
3. Flexible order support
Small trial orders are acceptable, MOQ starts from 1 piece. In‑stock items can be shipped quickly, custom production is available for special dimensions.
4. Quality commitment
Samples keep identical specs with mass‑production goods. Quality‑caused defects will be handled by our after‑sales team.
A: Guangzhou Ideal Plastic Technology Co., Ltd. was founded in Hong Kong in 2011, with factory located in Huangpu Guangzhou. We develop and produce special engineering plastic semi‑finished profiles as well as CNC machining services.
A: Stock goods ship upon payment. Custom order lead‑time depends on quantity and processing complexity.
A: Deposit before production, balance before shipment. HSBC Hong Kong account and freight forwarder payment are supported.
A: Free stock samples are offered, customer covers shipping freight. Bulk goods match sample quality.
A: Quality‑related issues support return & exchange at our cost. Man‑made or wrong‑order returns require customer‑borne freight.
