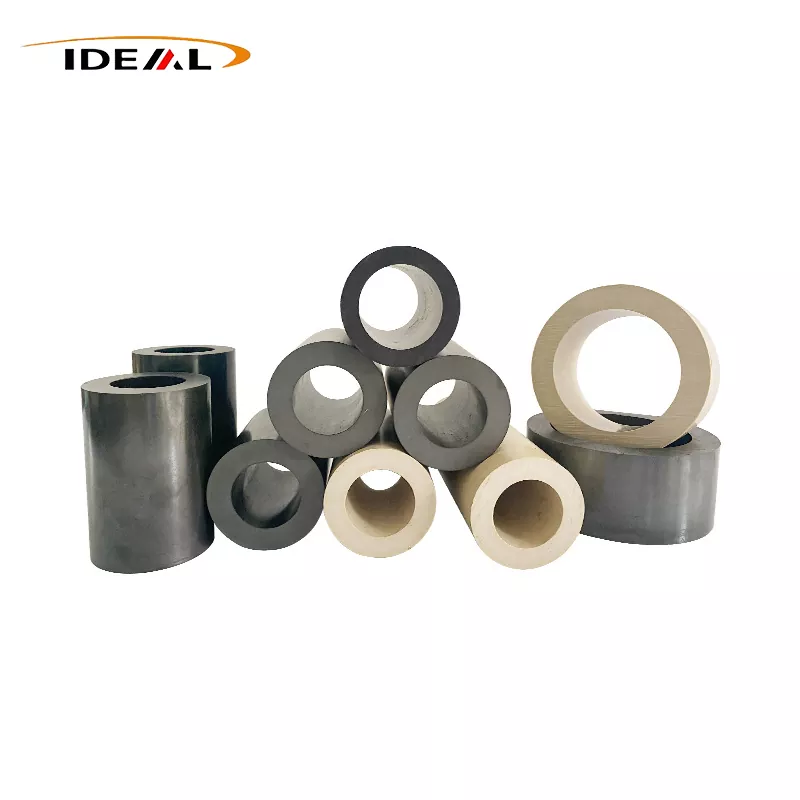

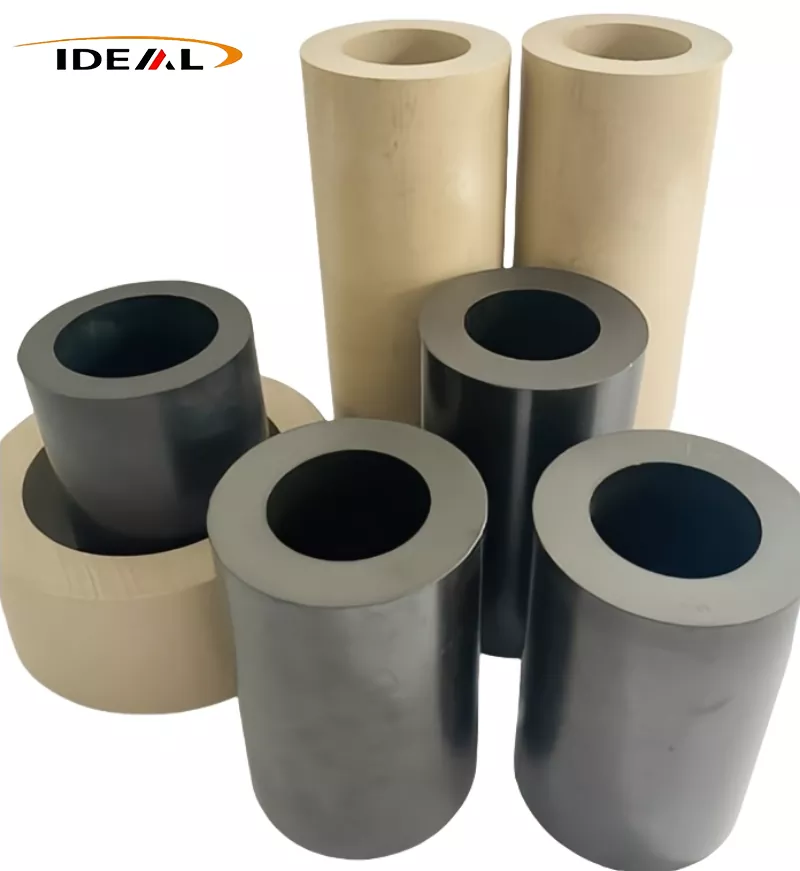

Carbon Fiber Filled PEEK Pipes

Ideal Plastic factory offers quality Carbon fiber Filled PEEK pipes made in China. Basically, the product is a blend of PEEK resin and carbon fiber. PEEK on its own is already pretty tough—it resists corrosion, flame, and radiation. With carbon fiber added, it keeps all that, plus it gets a great balance of strength and light weight.

The best thing about Carbon fiber Filled PEEK tube is how well it balances being strong and lightweight. Thanks to the carbon fiber and PEEK combo, its specific strength can go over five times that of aluminum alloy, while its density stays around 1.6 g/cm³.

Now, about heat resistance. Regular PEEK has a melting point of 343°C, but Carbon fiber reinforced PEEK pipe's heat distortion temperature can go above 315°C. That means it can handle long-term use anywhere from -196°C to 260°C.

Chemical stability is another strong point. PEEK naturally resists most organic solvents, acids, and alkalis. Adding carbon fiber just makes that corrosion resistance even better.

GuangZhou Ideal knows the production process of Carbon fiber Filled PEEK pipes really well. We can adjust the carbon fiber content anywhere between 10% and 40%, depending on what the customer needs.

At 10% to 20% carbon fiber, it improves toughness and strength of PEEK profiles, plus gives the best flow during processing.

At 25% to 30%, it boosts rigidity, creep resistance, and dimensional stability quite a bit.

At 35% to 40%, strength and modulus hit their highest levels, though toughness and flow do drop off some.

The most commonly used ratio is 30%.

Products data：

Product properties：

Today, let's talk about how Carbon fiber reinforced PEEK pipe stacks up against regular PEEK pipes. I’ll keep it simple and use plain English.

1. Stronger and stiffer

Regular PEEK is pretty tough, but when you add carbon fiber, it gets even stronger and stiffer. That’s what it is – carbon fiber reinforced PEEK. So if you're making parts for planes or cars that have to handle heavy forces, Carbon fiber Filled PEEK pipes is a solid choice.

2. Handles heat better

It stays more stable when things get hot. Unlike regular PEEK, it's less likely to warp or go soft at high temperatures. So it keeps its shape and strength even under heat stress.

3. Less expansion and contraction with temperature changes

Because of the carbon fiber, it has a lower thermal expansion rate. That means its size barely changes when temperatures go up or down. That’s a big deal for precision engineering jobs where every millimeter matters.

4. More wear‑resistant and corrosion‑resistant

The carbon fiber also helps these PEEK pipes stand up better to rubbing and harsh chemicals. So if you're working in places like chemical plants or oil and gas fields, it’s a more reliable option.

5. Conductive and anti‑static

Regular PEEK is usually non‑conductive. But Carbon fiber Filled PEEK tube, thanks to that carbon fiber, conducts a little electricity and won’t build up static charge. That’s super useful in electronics manufacturing, where static can fry sensitive components.

6. Lightweight

It is lighter than a lot of metals, but just as strong – sometimes even stronger. That’s why industries like aerospace and automotive love it. Less weight means better fuel efficiency, and it is a cost‑effective way to get there.

7. A few downsides you should know

High price – Carbon fiber and PEEK raw materials aren’t cheap, so Carbon fiber Filled PEEK pipes end up costing about 2 to 3 times more than ordinary PEEK.

Directional properties – The carbon fibers line up in certain directions inside the material. That means its strength and behavior aren’t the same in every direction. When you design the mold, you have to plan carefully to reduce this effect.

Sensitive to sharp notches – If a part has a sharp notch, stress can build up there and cause cracks. So try to avoid sharp notches in your design.

Where can you actually use this stuff?

Carbon fiber Filled PEEK tube is a high-performance thermoplastic. It resists heat, doesn’t need much lubrication, stands up to many chemicals, won’t easily catch fire, handles moisture well, fights wear, and can take repeated stress. That’s why PEEK materials are popular worldwide – they’re top dogs in high-performance plastics.

It is mainly used in these industries:

1.Automotive

2.Machinery and equipment

3.Electronics

4.Power industry

5.Medical devices

6.Aerospace

Choose us:

We don’t just have advanced equipment for making Carbon fiber Filled PEEK pipes. We also put a lot of effort into R&D and constantly improve our machines. With years of handson experience and mature manufacturing processes, we keep quality and precision on track at every step.

From your first question, to placing an order, to aftersales support – we’re with you the whole way. Every customer gets professional technical help and a smooth, efficient service experience.
