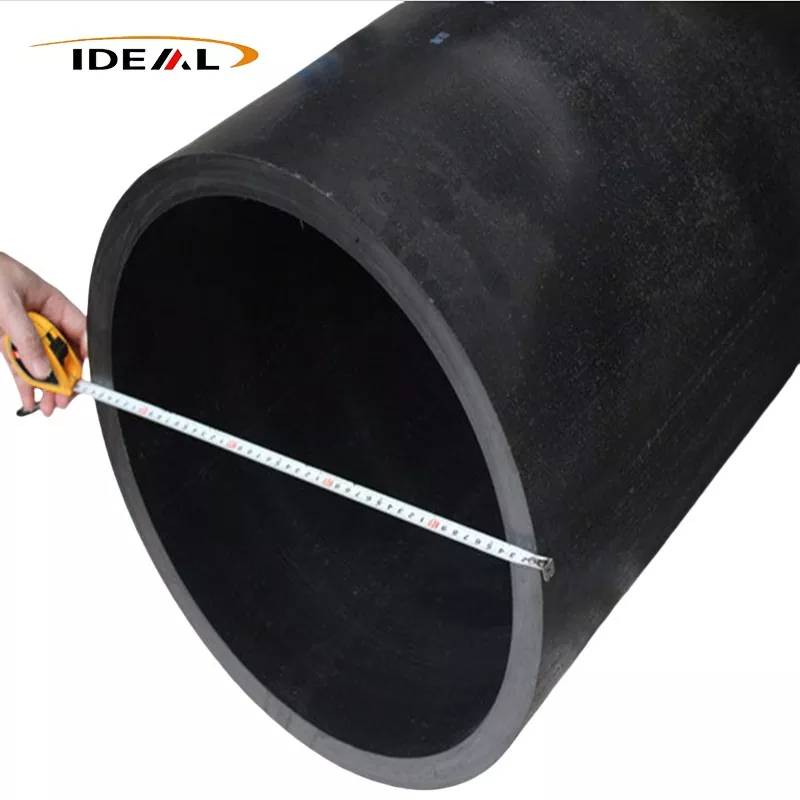

PEEK CF30 Tubes

Let me tell you more about our PEEK CF30 tubes material - it is actually made by combining PEEK resin and carbon fiber. This combination not only retains the advantages of PEEK, such as corrosion resistance, flame retardancy, and radiation resistance, but also elevates its heat resistance and durability due to the addition of carbon fiber. And it is lighter than PEEK with 30% glass fiber added. Carbon fiber also enhances thermal conductivity, making it particularly suitable for parts that often require sliding friction, which is very helpful in extending the lifespan of the parts. In addition, its conductivity has also improved, and its mechanical strength is stronger - carbon fiber itself is naturally hard and strong, so PEEK's tensile strength, bending resistance, and rigidity have significantly improved.

GuangZhou Ideal usually use two processes, extrusion molding and mold compression molding, to produce PEEK CF30 pipe, both of which can effectively maintain the excellent properties of the material itself. Moreover, we can flexibly adjust the filling ratio of carbon fiber according to the specific needs of customers, so that the size and performance of the product can be tailored to better adapt to different usage scenarios. To put it simply, our product truly combines the advantages of PEEK and carbon fiber, and has a complete range of specifications. If you need it, feel free to come and chat with us anytime

products data：

Product properties：

PEEK CF30 tubes is a high-performance composite material, which simply means that carbon fiber is added to PEEK plastic, greatly improving overall performance. What are the specific advantages of the carbon fiber reinforced PEEK material produced by GuangZhou Ideal ? Let's take a closer look:

1.Better mechanical performance

After adding carbon fiber, the tensile strength, elastic modulus, and fatigue resistance of PEEK material are improved, and it is more durable and less prone to fatigue.

2.Self-lubricating property

This material has a very low coefficient of friction, approximately between 0.1-0.2, and can lubricate itself without the need for additional oil. So it is particularly suitable for scenarios that require "oil-free" such as medical devices and the food industry.

3.More resistant to high temperatures and good thermal stability

PEEK CF30 pipe also performs stably at high temperatures, and can be used for a long time above 260 ℃, with the highest temperature even reaching 315 ℃.

4.More wear-resistant and corrosion-resistant

The addition of carbon fiber also makes PEEK material more resistant to wear and chemical erosion, so it can also be used in harsh environments such as chemical engineering, oil and gas.

5.Capable of conducting electricity and preventing static electricity

In addition, carbon fiber also gives PEEK material a certain degree of conductivity and anti-static ability, making it more convenient to use in some electronic and electrical fields. It is not easy to accumulate static electricity and can effectively prevent problems caused by electrostatic discharge.

Where can you actually use this stuff?

1.In the semiconductor industry, CMP retaining rings made of PEEK are indeed particularly wear-resistant and resistant to chemical corrosion, much more durable than other materials - their lifespan can be almost doubled. In this way, the number of production line shutdowns caused by ring replacement is much less.

2.PEEK CF30 tubes material has good friction and mechanical properties, and can replace metals in some key components, making it a good choice for reducing weight in cars.

3.In the medical field, the hardness of PEEK is similar to that of human bones, and it is not metal. CT or MRI examination after surgery will not produce artifacts and will not affect subsequent diagnosis.

4.In the field of nuclear power, PEEK can meet the high requirements of the nuclear industry for components. Especially its radiation resistance is crucial, as ordinary plastics are easily brittle and aged under radiation.

5.PEEK CF30 tubes, a new material, has also been used well in beverage filling equipment. For example, wear-resistant parts that require high lifespan on sterile filling lines, such as forks, shaft sleeves, and plate machines, are now made of PEEK.

6.In the field of 3D printing, we have also made breakthroughs by using PEEK resin and carbon fiber as raw materials, and through fiber-reinforced fusion technology, we have been able to print automotive fuel intake passages. It has good oil resistance and is not easily aged or damaged even after long-term use at a high temperature of 240 ℃, making it an ideal replacement for aluminum parts.

Choose us:

We have a particularly professional technical team at GuangZhou Ideal, with separate teams responsible for sales and after-sales. We also use high-end production equipment, and over the years, we have been committed to providing customers with high-quality products. After working for over fourteen years, we have indeed accumulated a lot of experience. From pre-sales communication, production coordination, to after-sales service, there are people watching every link. And over the years, our research and development, design, and production have been constantly upgrading and improving, not only ensuring the quality of PEEK CF30 tubes products, but also flexibly responding to various needs of everyone.

FAQ:

1.Do you guarantee product performance?

The raw materials we use are purchased from reliable domestic and foreign brands, and each batch of materials comes with a testing report. Their performance is also among the best in the industry. If needed, we can send you a detailed product parameter table for your reference.

2.How do you control the quality?

We have a very strict quality inspection process, as well as advanced testing equipment and laboratories. From raw materials to finished products, every step is monitored by dedicated personnel to ensure the quality of the products delivered to you is excellent.

3. Do your products have certification?

Our company has passed the ISO9001:2008 quality management system certification, and our products also have SGS, CE, and Rosh certifications, all of which comply with environmental testing standards such as ROHS, REACH, and EN71.

4.Can you provide samples?

If it is a semi-finished product, we can provide free samples based on inventory to facilitate your performance testing. However, the shipping cost needs to be borne by you. You can rest assured that the quality of the samples is exactly the same as that of the bulk goods.

5.How to arrange the payment method?

A partial deposit is required when placing an order. After all the products are produced and the final payment is settled, we will arrange for shipment immediately. Payment can be made through our Hong Kong HSBC bank account or through a freight forwarder.

6.How long does it usually take to deliver?

If the regular item is in stock, it can be arranged for shipment immediately after payment. If it is a customized product, the delivery time needs to be negotiated based on the order quantity and production process.
