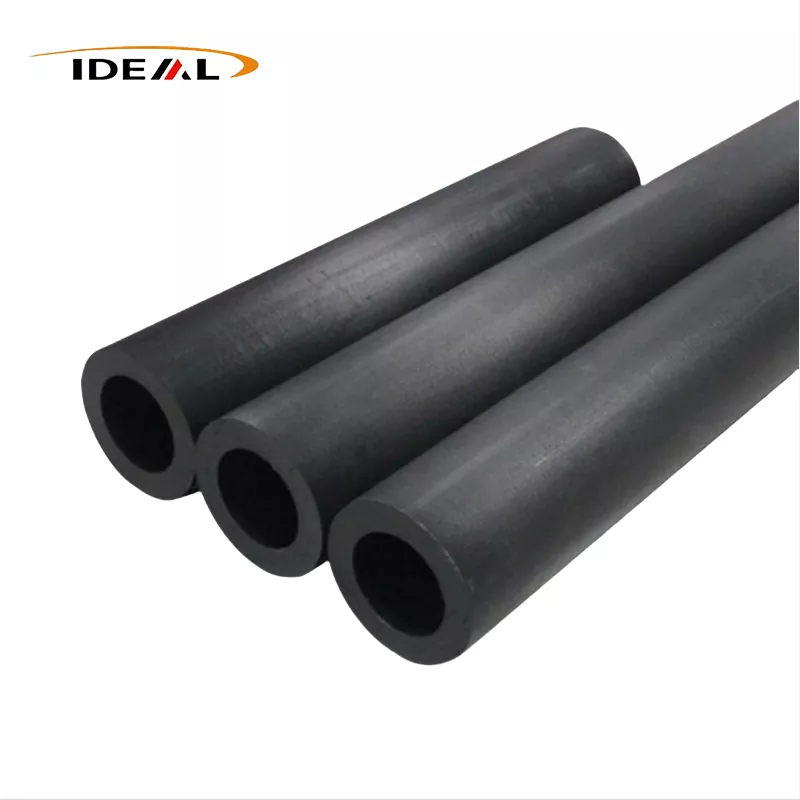

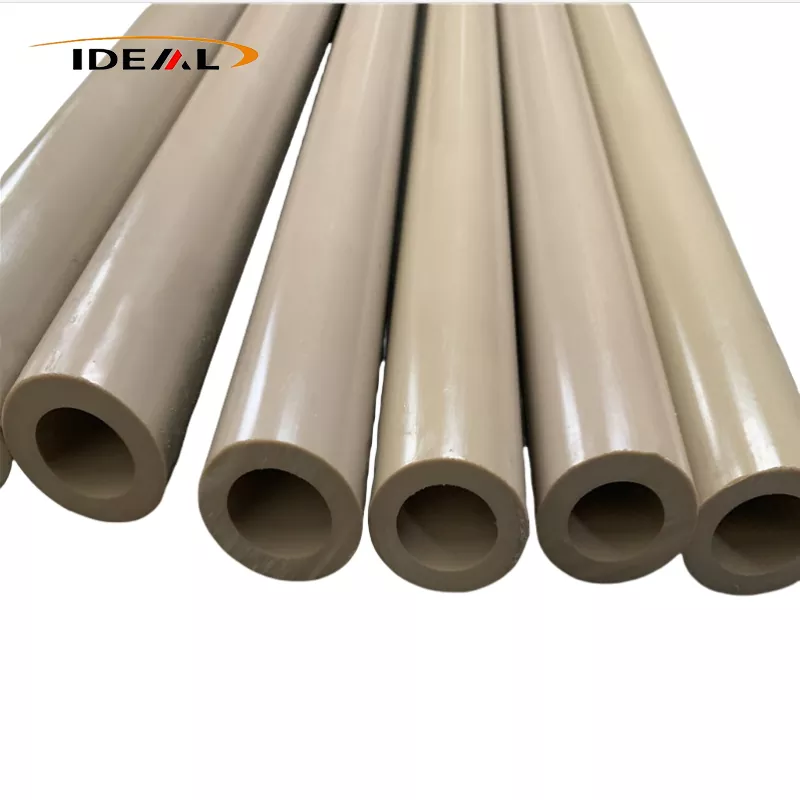

PEEK Pipes

Ideal Plastic is a professional manufacturer and supplier of PEEK pipes. How we make it depends on the size. Usually, it's done through mold extrusion or compression molding.Basically, it is made from PEEK. In simple terms, PEEK is a special type of plastic—a high-performance polymer that has ketone and ether bonds in its molecular structure. What makes it special is that it can handle really high temperatures and stands up to all kinds of harsh chemicals. It's what we call a semi-crystalline material, which means it's super versatile. You can use it for structural parts that need to resist heat, or as an electrical insulator. And if you need it to be even stronger, we can mix it with glass fiber or carbon fiber to create a reinforced version. We have a few main grades to suit different needs: there's the standard pure grade, a glass fiber reinforced one, a carbon fiber reinforced version, and then a special bearing grade.

Now, when it comes to size, we split things into two categories: regular and large-sized. The regular sizes are pretty standard for us. We usually make these through extrusion molding, so we keep a large inventory. These are the ones we can ship out right away.

But, if a customer needs something bigger—specifically, parts with an outer diameter over 460 millimeters or an inner diameter over 410 millimeters—that's a different story. Those dimensions are just too large for our standard extrusion lines. For those, we have to switch to using molds and a compression molding process. Because they're custom-made, we don't keep these big ones in stock; they're made to order.

One of our strong points is our team. We have a group of sales engineers who really know their stuff and have been in the industry for a long time. Our R&D team is also top-notch. We've got several production lines running and our equipment is pretty advanced. Quality is a big deal for us too—every single product goes through precise testing before it leaves the factory, and we provide a complete test report. Plus, our technical support is solid and we're always there to help.

At the end of the day, our PEEK Pipes are known for having stable, consistent quality. We keep the dimensions very precise, the surface finish is smooth, and we can make it in a wide range of specifications. Our goal is always to meet the different needs of our customers as best we can.

products data：

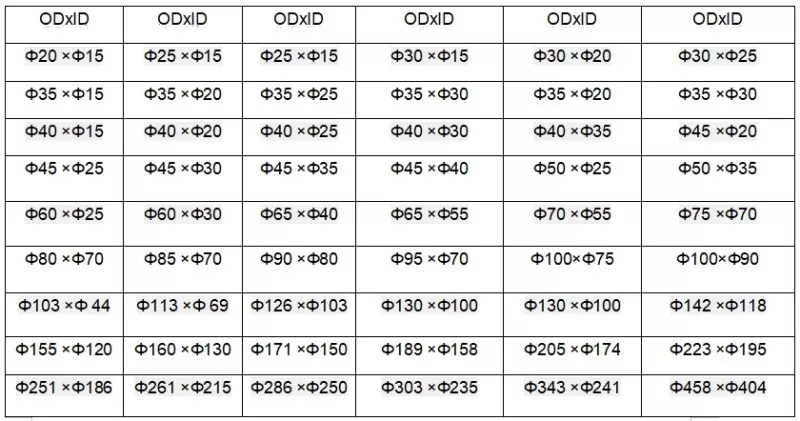

Inventory Sizes:

Product properties：

1. First off, let’s talk about strength

The mechanical properties of PEEK pipes come down to three things: it’s strong, it’s tough, and it performs consistently. At room temperature, pure PEEK already delivers a tensile strength of 90 to 100 MPa, and its flexural strength easily goes over 130 MPa. But if you want something even more hardcore, you can reinforce it with carbon fiber or glass fiber. Take PEEK with 30% carbon fiber, for example—its tensile strength jumps to 180 MPa, and flexural strength exceeds 250 MPa. At that level, it can easily replace metal in structural parts.

2. Now, let’s talk about how smooth it is—literally.

PEEK has a naturally low coefficient of friction. We're talking as low as 0.15 when you add graphite. Under a load of 200 Newtons and running at 1500 rpm, the wear rate is just 0.003 mm per thousand hours. That makes it a perfect fit for moving parts like bearings and gears. Imagine the joints in a humanoid robot—PEEK parts in there can run millions of cycles without failing, even without lubrication. Plus, they're way quieter than metal, cutting noise by as much as 30%.

3. It can take the heat—really well.

So why is PEEK tube so heat resistant? It comes down to its crystalline structure and the chemical stability of its molecular chains. That means even in high-temperature environments, it holds its shape and doesn’t lose performance. It’s naturally resistant to oxidation too, so it won’t swell or crack even after long exposure to heat and air.

4. Tough as nails—even under constant wear.

PEEK is known for being self-lubricating and highly wear-resistant. Its coefficient of friction usually ranges from just 0.15 to 0.25. And here’s the kicker—it keeps those properties even at temps as high as 250°C. That’s why it’s ideal for parts that face constant friction and wear, like seals, pistons, shafts, and pump bearings. Think sleeve bearings, valve seats, sealing rings, and wear rings in pumps—PEEK handles all of that with ease.

5. And on the electrical side—it’s a safe bet.

PEEK plastic pipe is an excellent electrical insulator. It has high dielectric strength and a low dielectric constant, which basically means it blocks current effectively—no leaks, no shorts. That’s why you’ll find it in all sorts of electronic and electrical components like sockets, plugs, and even circuit boards. It keeps things running safely.

4.Where can you actually use this stuff?

1.Aerospace – Lightweight, strong, and resistant to both heat and corrosion. You’ll see PEEK pipes in engine components, cabin parts, and seals.

2.Medical – This is where PEEK really stands out. It’s biocompatible, doesn’t mess with X-rays, and is widely used in dental implants, denture frames, and even surgical tools. Also shows up in catheters and stents.

3.Electronics – Thanks to its insulation and heat resistance,PEEK tube is used in cable insulation and wafer cooling systems in semiconductor manufacturing.

4.Automotive – Helps reduce weight in parts like engine covers, interior trim, and transmission components. Less weight means better fuel efficiency.

5.Chemicals & Energy – Here it’s all about corrosion resistance. PEEK holds up in pipes, valves, and seals exposed to high heat and pressure.

6.Food Processing – Because PEEK plastic pipe is chemically stable and hygienic, it’s a go-to for equipment parts that come into direct contact with food.

5.Choose us:

At GuangZhou Ideal, we’re committed to delivering high-quality PEEK pipes to every customer. We even offer free samples so you can test the quality before committing to a larger order. And don’t worry—what you see in the sample is exactly what you’ll get in bulk. We keep plenty of stock, ship fast, and have all the certifications you’d expect. Our goal is to make your buying experience as smooth and hassle-free as possible.

FAQ:

How can I pay for my order?

We ask for a deposit upfront before we start production. Once your order is fully manufactured, we’ll let you know and request the remaining payment. As soon as that's settled, we ship your goods out immediately. You can pay us directly via our HSBC Hong Kong bank account, or through your freight forwarder if that works better for you.

How long until my order is ready?

If you're ordering standard profile products that we have in stock, we can ship them as soon as you pay. For custom-made items, the lead time really depends on your order size and the production process—so we'll figure that out together and give you a clear timeline.

How do you handle shipping?

We typically ship via DHL, FedEx, or other reliable logistics providers, and we offer both air and sea freight options to suit your needs—whatever is most convenient and efficient. You're also welcome to use your own logistics company or freight forwarder. Just keep in mind that shipping costs are covered by the customer, and the final price depends on the size, weight, and destination of your order.

Can I return or exchange products?

Absolutely—if there's a quality issue, assembly tolerance problem, or anything else that affects how your product fits, just let us know. Once we verify the issue, we’ll issue a refund or replacement, and we’ll cover the return shipping.

That said, if the return or exchange is needed because you ordered the wrong item or changed your mind (this applies to standard profile blanks only), we’re still happy to help—as long as the product is unused and resalable. In that case, you'd just need to cover the shipping costs.

What kind of after-sales support do you offer?

We’re here for you even after your product arrives. If anything comes up during use—whether it's a question, a concern, or just advice—feel free to reach out. We’ll do our best to help with our experience and attention to detail.

What makes your company stand out?

We've been in the special engineering plastic profiles and parts business for over 14 years, and we’re proud to hold several patents in this space. Our team combines advanced production equipment with real-world experience to fine-tune every step of the process—keeping quality high and costs competitive. Over the years, we’ve supported thousands of customers both locally and internation. Contact for our quality PEEK Pipes!
