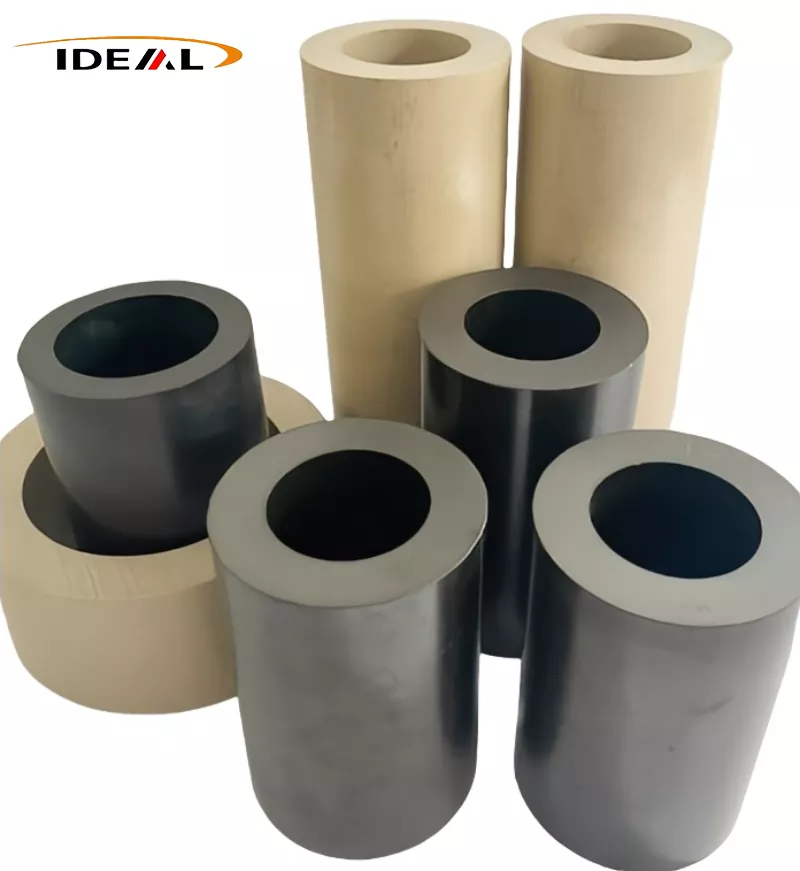

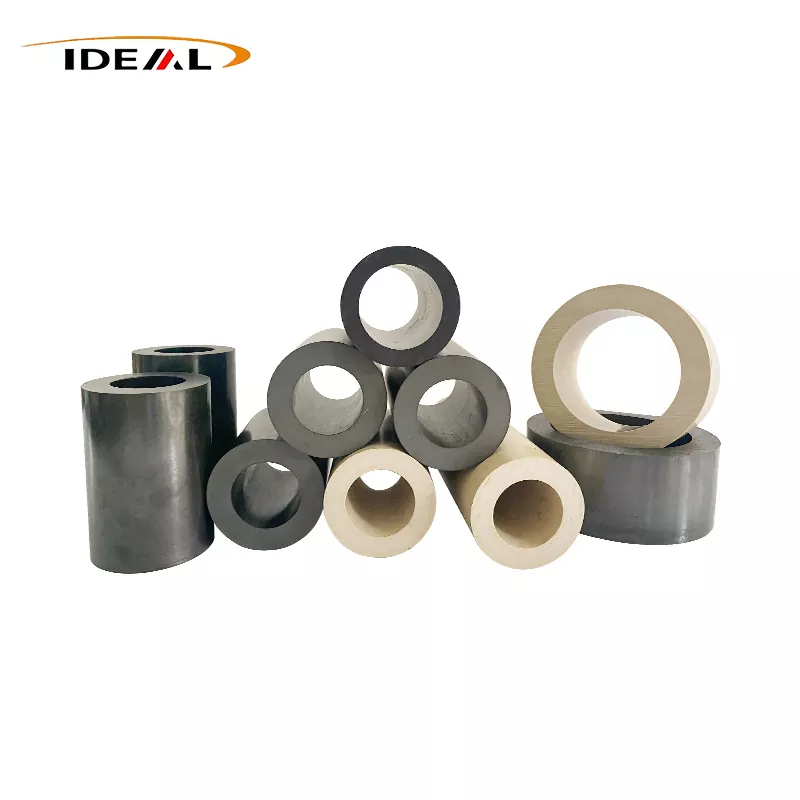

Carbon Fiber Filled PEEK Tubes

Ideal Plastic manufacturer provides durable Carbon fiber Filled PEEK tubes. Now, because carbon fiber is added to it, these PEEK tubes ends up being stronger, more thermally conductive, and more wear-resistant than regular PEEK. It also has a lower friction coefficient and better abrasion resistance. If you use long carbon fiber (LCF) instead of short carbon fiber (SCF), the friction coefficient drops even more. Compared to PEEK-GF30 (which is PEEK with 30% glass fiber), Carbon fiber reinforced PEEK tube has better mechanical properties—higher elastic modulus, better strength, improved creep resistance, and greater abrasion resistance. Its thermal conductivity is also 3.5 times higher than PEEK without any carbon fiber.

GuangZhou Ideal really knows their stuff when it comes to making Carbon fiber Filled PEEK pipe. We can adjust the carbon fiber content from 10% to 40%, based on what the customer needs. Adding 10% to 20% improves the toughness and strength of the PEEK profiles and gives you the best flow during processing. At 25% to 30%, you get a big boost in rigidity, creep resistance, and dimensional stability. Go up to 35% to 40%, and the strength and stiffness hit their maximum, but toughness and flowability take a hit. The most common blend is 30%.

products data：

Product properties：

Carbon fiber reinforced PEEK tube is a reinforced, modified composite material. It's a big step up from ordinary PEEK. Let's walk through what makes it special and why it's worth considering.

1. More stiffness and better heat resistance thanks to carbon fiber

Carbon fiber Filled PEEK pipe contains 10–30% carbon fiber (CF). This makes it a PEEK-CF composite. It keeps the natural heat resistance of PEEK, but the mechanical properties get a serious boost. The stiffness lands between 8 and 12 GPa, and the heat distortion temperature (HDT) goes above 315°C. So if you're making structural parts that have to handle heavy loads, this stuff works great.

2. Better conductivity – good for static-sensitive environments

Carbon fiber is conductive, so PEEK reinforced with carbon fiber conducts electricity much better than standard PEEK. Its volume resistivity can drop to 1×10³ Ω·cm. That makes it a solid choice for places where static electricity is a concern.

3. Excellent high-temperature resistance

Carbon fiber Filled PEEK tubes has a heat distortion temperature of 315°C and can be used continuously at 260°C. That means its physical and mechanical properties stay stable even when things heat up. It's way better than ordinary engineering plastics in this regard.

4. Improved wear and corrosion resistance

Adding carbon fiber also improves wear resistance and chemical resistance. So Carbon fiber Filled PEEK tube lasts longer and performs better in tough environments – think chemical plants or oil and gas operations.

5. Good stiffness and still pretty tough

Compared to pure PEEK, PEEK filled with carbon fiber has better stiffness but keeps as much toughness as possible. For example, PEEK CF30 has an elastic modulus of 6000 MPa and an elongation at break of 10%. In plain English: it's hard, but it doesn't turn brittle.

6. Great wear resistance and low friction – ideal for sliding parts

If you compare PEEK CF30 (carbon fiber) to PEEK GF30 (glass fiber), the CF version has better wear resistance. Plus, carbon fiber conducts heat better. That makes Carbon fiber reinforced PEEK tube a great fit for applications where parts rub or slide against each other.

Where can you actually use this stuff?

1.Medical field

Because it handles high temperatures well and has good mechanical strength, Carbon fiber Filled PEEK tubes is often used in surgical tools that need repeated sterilization, dental equipment, and precision medical instrument parts.

2.Mechanical industry

In machinery, PEEK materials are commonly used for valve plates, piston rings, compressor seals, pump bodies, and valve parts in chemical applications.

3.Precision manufacturing

Carbon fiber reinforced PEEK tube is extremely strong, chemically resistant, flame-retardant, and easy to machine into high-precision parts. It can replace metals, traditional composites, and other plastics – and it keeps dimensional errors very small.

4.Aerospace

In aerospace, PEEK resin can replace aluminum and other metals in various aircraft parts. It also has excellent flame-retardant properties, so it's used inside aircraft to help reduce fire risk.

5.Energy & power

In energy and power industries, Carbon fiber Filled PEEK pipe resists high temperatures, doesn't hydrolyze easily, and also resists radiation. Products like wires, cables, and coil frames made from it have been successfully used in nuclear power plants.

6.Oil exploration

In oil exploration and extraction, It can be used to make custom-sized probes for extraction equipment.

Choose us:

1.We control the source

We source raw materials from major companies both locally and internationally. Every batch is strictly tested to ensure quality. We have standardized production lines and our own physical property and environmental testing facilities. Every batch meets RoHS, REACH, EN71, and other environmental standards.

2.We offer custom solutions

We can tailor production to your needs. The GuangZhou Ideal team provides professional "solutions" and "tailor-made" services. We adapt quickly to any specific requirements and work to give you a satisfying result.

3.Our team is professional and responsive

We have experienced sales engineers and an R&D team. Our production line uses advanced Carbon fiber Filled PEEK tubes-specific equipment. Our test reports are detailed, and our technical support is thorough.
