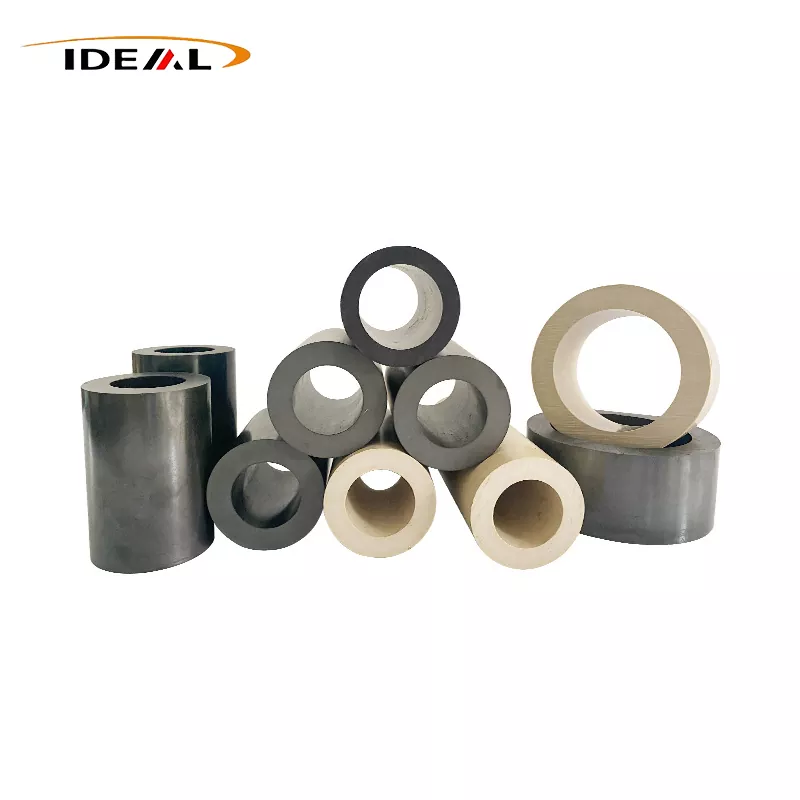

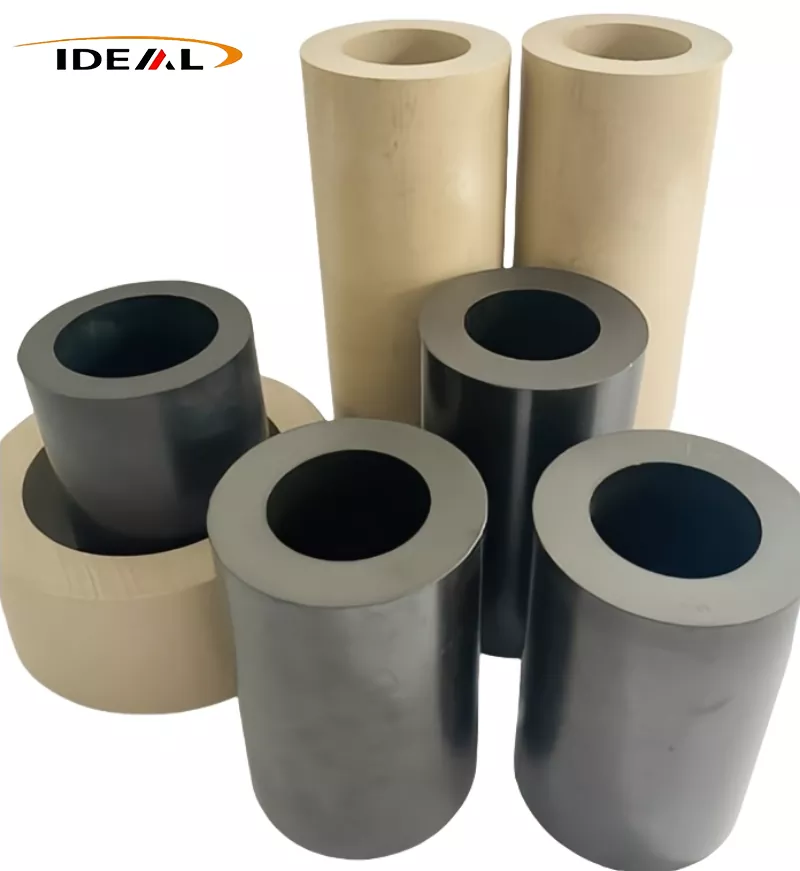

Ideal Plastic's quality Carbon Fiber Reinforced PEEK Pipes are high-performance composite tubes upgraded by adding carbon fiber to high-purity PEEK resin. Optimized composite structure greatly improves rigidity, dimensional stability and load capacity compared with ordinary pure PEEK pipes, ideal for rigorous industrial piping and transmission scenarios.
1. Stable molecular structure
2. Reasonable crystallinity design
3. Excellent comprehensive durability
4. Enhanced structural rigidity
5. Resistant to deformation
6. Strong adaptability to harsh conditions
Ideal Plastic is a leading Carbon Fiber Reinforced PEEK Pipes factory in China. Now, because carbon fiber is added to it, it ends up being stronger, more thermally conductive, and more wear-resistant than regular PEEK. It also has a lower friction coefficient and better abrasion resistance. If you use long carbon fiber (LCF) instead of short carbon fiber (SCF), the friction coefficient drops even more. Compared to PEEK-GF30 (which is PEEK with 30% glass fiber), Carbon fiber reinforced PEEK tube has better mechanical properties—higher elastic modulus, better strength, improved creep resistance, and greater abrasion resistance. Its thermal conductivity is also 3.5 times higher than PEEK without any carbon fiber.
|
Product name |
Carbon fiber Filled PEEK tubes |
|
Material |
Carbon fiber filling PEEK |
|
Color |
black |
|
ID |
Ф20mm -Ф458mm |
|
OD |
Ф15mm -Ф404mm |
|
Length |
1000mm,3000mm |
|
Tolerance |
±0.02mm |
|
Certificates |
ISO9001:2008, REACH, ROHS |
|
Delivery time |
Standard sizes ship on the same day; custom sizes take 7-10 days. |
|
Sample |
Free |
Carbon Fiber Reinforced PEEK Pipes are reinforced, modified composite materials. This is a big step up from ordinary PEEK. Let's walk through what makes it special and why it's worth considering.
1. More stiffness and better heat resistance thanks to carbon fiber
Carbon fiber Filled PEEK pipe contains 10–30% carbon fiber (CF). This makes it a PEEK-CF composite. It keeps the natural heat resistance of PEEK, but the mechanical properties get a serious boost. The stiffness lands between 8 and 12 GPa, and the heat distortion temperature (HDT) goes above 315°C. So if you're making structural parts that have to handle heavy loads, this stuff works great.
2. Better conductivity – good for static-sensitive environments
Carbon fiber is conductive, so PEEK reinforced with carbon fiber conducts electricity much better than standard PEEK. Its volume resistivity can drop to 1×10³ Ω·cm. That makes it a solid choice for places where static electricity is a concern.
3. Excellent high-temperature resistance
Carbon fiber Filled PEEK tubes has a heat distortion temperature of 315°C and can be used continuously at 260°C. That means its physical and mechanical properties stay stable even when things heat up. It's way better than ordinary engineering plastics in this regard.
4. Improved wear and corrosion resistance
Adding carbon fiber also improves wear resistance and chemical resistance. So Carbon fiber Filled PEEK tube lasts longer and performs better in tough environments – think chemical plants or oil and gas operations.
5. Good stiffness and still pretty tough
Compared to pure PEEK, PEEK filled with carbon fiber has better stiffness but keeps as much toughness as possible. For example, PEEK CF30 has an elastic modulus of 6000 MPa and an elongation at break of 10%. In plain English: it's hard, but it doesn't turn brittle.
6. Great wear resistance and low friction – ideal for sliding parts
If you compare PEEK CF30 (carbon fiber) to PEEK GF30 (glass fiber), the CF version has better wear resistance. Plus, carbon fiber conducts heat better. That makes Carbon Fiber Reinforced PEEK Pipes a great fit for applications where parts rub or slide against each other.
- As a professional CF-PEEK pipe manufacturer, we supportadjustable carbon fiber content from 10% to 40% to match customers’ exact working conditions, rather than providing single fixed formulas.
- We deliver targeted material performance tuning: 10%–20% CF formulas optimize toughness and processing fluidity for smooth machining; 25%–30% CF greatly enhances rigidity, creep resistance and dimensional stability; 35%–40% CF maximizes structural strength and stiffness for heavy-load scenarios. The industry-standard 30% carbon fiber formula is also available for universal industrial applications.
- We support both long carbon fiber (LCF) and short carbon fiber (SCF) filling solutions. Long carbon fiber further reduces the friction coefficient and improves overall wear resistance, meeting higher-standard sliding and friction-resistant operational requirements.
- Dual fiber grade optional tuning (LCF/SCF): We support both long carbon fiber (LCF) and short carbon fiber (SCF) formulations. Long carbon fiber further lowers the friction coefficient and improves wear performance compared with conventional SCF grades, satisfying higher-standard sliding mechanical applications.
- 3.5× higher thermal conductivity than pure PEEK: Carbon fiber reinforcement greatly improves thermal conductivity, helping dissipate frictional heat more efficiently during continuous operation and enhancing overall operational stability.
- Balanced rigidity and non-brittle toughness: Our CF-modified PEEK maintains excellent toughness while gaining high rigidity. Taking CF30 grade as an example, it delivers high elastic modulus with 10% elongation at break, avoiding the brittleness issue common in high-stiffness modified plastics.
- Superior mechanical performance over GF30 PEEK: Compared with 30% glass fiber reinforced PEEK, our carbon fiber filled PEEK features higher elastic modulus, better strength, creep resistance and abrasion resistance, resisting long-term load deformation.
- Better friction and wear performance than glass fiber modified PEEK: CF-filled PEEK outperforms GF-reinforced PEEK in wear resistance and thermal conduction, making it more stable for long-term sliding, rotating and friction-matching mechanical parts.
- Reliable performance in chemical & energy harsh environments: It retains PEEK’s excellent chemical resistance against most acids, alkalis and organic solvents, and performs stably in chemical equipment and oil exploration working conditions.
- All raw materials adopt well-known domestic and international brand PEEK resin and high-purity carbon fiber, with complete batch material test reports to ensure stable and consistent raw material quality.
- Equipped with independent physical property and environmental testing laboratories, we conduct full-process monitoring from material compounding, extrusion molding to finished product inspection.
- Products comply with ISO9001, REACH and RoHS international environmental standards, fully meeting global industrial and medical industry access requirements.
- Standard finished pipes support complete size specifications: ID 15mm–404mm, OD 20mm–458mm, conventional lengths of 1000mm and 3000mm, with precise tolerance controlled within ±0.02mm.
- Flexible delivery mechanism: standard in-stock sizes support same-day shipment; customized sizes are completed within 7–10 working days.
- Free sample service is available for performance verification, ensuring consistent parameters between sample and mass-produced products.
- We are a professional high-tech manufacturer specializing in modified PEEK profiles, with a 100+ professional R&D team, advanced dedicated CF-PEEK production equipment and a 100,000-class dust-free workshop, supporting mass stable production and high-precision customization.
- We provide one-stop tailored solutions covering formula adjustment, size customization, precision machining and performance optimization, adapting to diverse customized demands from medical, aerospace, energy, machinery and oil exploration industries.
- With over 14 years of special engineering plastic production experience and multiple patented technologies, we continuously optimize production processes to balance high product performance and competitive pricing.
- Our customer groups cover Europe, America, the Middle East, Japan, South Korea, Southeast Asia and other global markets, with rich foreign trade delivery and project service experience.
- Support confidential agreement signing, customized processing privacy protection, professional technical guidance and full-cycle after-sales troubleshooting, eliminating customer cooperation concerns.
1.Medical field
Because it handles high temperatures well and has good mechanical strength, Carbon fiber Filled PEEK tubes is often used in surgical tools that need repeated sterilization, dental equipment, and precision medical instrument parts.
2.Mechanical industry
In machinery, PEEK materials are commonly used for valve plates, piston rings, compressor seals, pump bodies, and valve parts in chemical applications.
3.Precision manufacturing
Carbon fiber reinforced PEEK tube is extremely strong, chemically resistant, flame-retardant, and easy to machine into high-precision parts. It can replace metals, traditional composites, and other plastics – and it keeps dimensional errors very small.
4.Aerospace
In aerospace, PEEK resin can replace aluminum and other metals in various aircraft parts. It also has excellent flame-retardant properties, so it's used inside aircraft to help reduce fire risk.
5.Energy & power
In energy and power industries, Carbon fiber Filled PEEK pipe resists high temperatures, doesn't hydrolyze easily, and also resists radiation. Products like wires, cables, and coil frames made from it have been successfully used in nuclear power plants.
6.Oil exploration
In oil exploration and extraction, the Carbon Fiber Reinforced PEEK Pipes can be used to make custom-sized probes for extraction equipment.
1.We control the source
We source raw materials from major companies both locally and internationally. Every batch is strictly tested to ensure quality. We have standardized production lines and our own physical property and environmental testing facilities. Every batch meets RoHS, REACH, EN71, and other environmental standards.
2.We offer custom solutions
We can tailor production to your needs. The GuangZhou Ideal team provides professional "solutions" and "tailor-made" services. We adapt quickly to any specific requirements and work to give you a satisfying result.
3.Our team is professional and responsive
We have experienced sales engineers and an R&D team. Our production line uses advanced Carbon fiber Filled PEEK tubes-specific equipment. Our test reports are detailed, and our technical support is thorough.
Welcome to contact us and buy our quality PEEK pipes!
