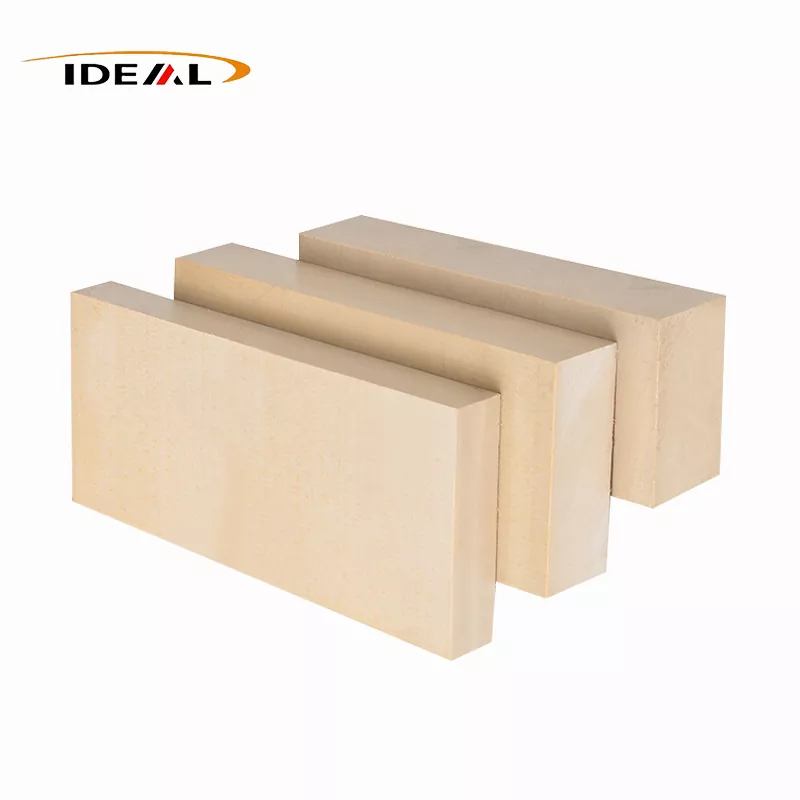

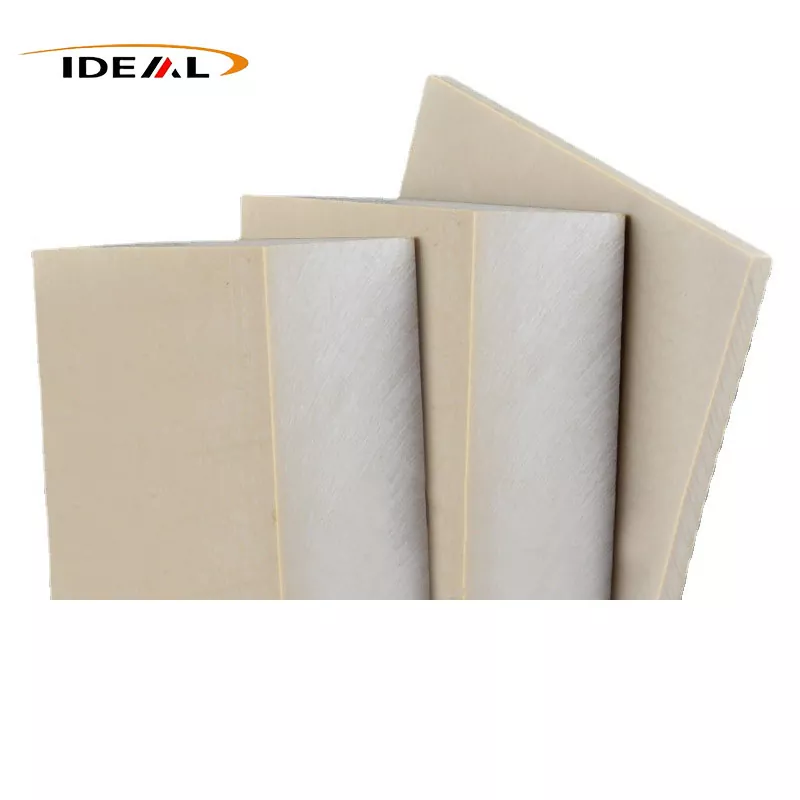

Buy Glass Fiber Reinforced PEEK Plates from Ideal Plastic. As a specialized engineering plastics manufacturer since 2011, we enrich semi-crystalline polyetheretherketone with a structural network of premium glass fibers. These high-impact, natural-colored profiles act as a reliable dielectric barrier, providing industrial operators with a stable metal-replacement solution that maintains its shape under immense mechanical weight and chemical exposure.
Upgrade your harsh-environment structural insulators with premium Glass Fiber Reinforced PEEK Plates produced by Ideal Plastic. Operating under an ISO 9001:2008 quality management system, our advanced Guangzhou factory uses only 100% premium-grade virgin materials to extrude these high-performance composite profiles. Every batch undergoes strict quality monitoring to ensure a completely consistent structure, with no cracking, yellowing, or internal flaws like impurities, bubbles, or dark spots. Featuring a certified thickness tolerance of ±0.02mm, these plates are fully CE and RoHS certified, meeting environmental standards such as REACH and EN71.
By adding a specialized glass fiber reinforcement matrix to the polyetheretherketone base, we significantly upgrade the polymer's core physical properties, creating a balanced and reliable high-performance composite:
Components machined from Glass Fiber Reinforced PEEK Plates are engineered to operate reliably in harsh moisture conditions. These composite profiles can be submerged in high-temperature, high-pressure water or exposed to 260°C steam for thousands of operating hours without breaking a sweat or suffering from molecular chain breakdown. When it comes to resisting water and steam, this material stands at the top of the chart among all engineering plastics.
While pure PEEK yields a baseline tensile strength around 90-100 MPa, our glass fiber reinforcement boosts that value to 150-180 MPa—a solid 60-80% increase. Concurrently, the material's stiffness (bending modulus) shoots up from 3-4 GPa to 10-12 GPa. The fibers act like an internal skeleton that carries heavy loads and stops the PEEK molecules from sliding around, making it a reliable choice for precision gears and structural components.
Glass fiber integration acts like a little shield within the material, blocking oxygen from entering and causing thermal degradation when things get hot. Material testing shows that after sitting at 200°C for 1,000 continuous hours, Glass Fiber Reinforced PEEK Plates retain their baseline tensile strength 20-30% better than unreinforced plain PEEK.
The addition of glass fiber makes PEEK significantly more wear-resistant, reducing material wear to approximately one-tenth (1/10) of what it was, while also lowering the dynamic friction coefficient.
Technical Warning: To preserve the service life of your equipment, avoid using overly high fiber concentrations. If the glass fiber loading goes overboard (exceeding 40%), the material can become abrasive and start chewing up the parts it rubs against. For high-velocity sliding applications, the material is usually blended with slippery additives like PTFE or graphite.
These composite plates hold up exceptionally well under heavy gamma-ray exposure, retaining the majority of their mechanical and structural strength. Testing indicates that it performs better than polystyrene—traditionally considered the benchmark among common plastics for radiation resistance—making it a dependable choice for critical parts in nuclear gear.
The addition of glass fiber makes the melted polymer thicker during manufacturing, which means processing temperatures may need to be bumped up by 10-20°C. However, the payoff is worth it: the fibers line up during molding, which reduces shrinkage and results in highly consistent, dimensionally stable parts that maintain their shape during severe temperature shifts.
| Product Metric | Certified Property | Reference Standards / Notes |
|---|---|---|
| Product Name | Glass Fiber Reinforced PEEK Plates | Premium Composite Profile |
| Material Base | Glass Fiber Filled PEEK | 100% Virgin Polymer Matrix |
| Color Option | Nature | Tan / Grayish Hue |
| Tensile Strength Yield | 150 to 180 MPa | 60-80% Higher than Unfilled PEEK |
| Stiffness (Bending Modulus) | 10 to 12 GPa | High Flexural Resistance |
| Long-Term Steam Limit | 260°C | Survives Thousands of Hours |
| Hot-Aging Longevity | Retains 20-30% More Strength | After 1000 Hours at 200°C |
| Standard Stock Breadth | 600mm to 1250mm | Extruded Plate Format |
| Available Thickness Range | 3mm to 100mm | Optimized Stock Selections |
| Machining Tolerance | ±0.02mm | In-House CNC Standard |
| Quality Compliance | ISO 9001:2012, REACH, ROHS, CE | Fully Third-Party Certified |
Our Glass Fiber Reinforced PEEK Plates have been successfully deployed across several international engineering projects, demonstrating clear long-term reliability in the field:
• Subsea Oil & Gas Exploration (North Sea Project): Machined into corrosion-resistant connectors and wear pads for deep-sea extraction tools. The components withstood continuous exposure to sour crude oil, acids, and alkalis at high temperatures, reducing maintenance shutdowns compared to standard materials.
• Nuclear Reactor Instrumentation (European Energy Facility): Utilized for structural insulation brackets near core sensor arrays. Exposed to continuous gamma radiation and high temperatures, the material maintained its complete insulation properties and mechanical shape without embrittling or cracking.
• Precision Semiconductor Tooling (East Asian Wafer Fab): Used to machine ultra-precise wafer carriers and connectors. Thanks to the tight ±0.02mm thickness tolerance and low shrinkage, the parts prevented static distortion and maintained exact spacing throughout rapid chemical washdown cycles.
• Automotive Industry: Lightweight structural frames, transmission parts, new energy vehicle sub-components, and engine gaskets.
• Aerospace Sector: Weight-reducing interior brackets, engine compartment components, and structural insulation clips.
• Healthcare & Medical: Repeating autoclave-safe surgical instrument fixtures, dental trial elements, and medical device components.
• Electronics & Semiconductors: High-voltage insulators, complex multi-pin connectors, and dimensionally stable wafer carriers.
• Energy & Heavy Industry: Acid-resistant valve seats, pump housings, and corrosion-resistant seals used in harsh chemical environments.
• Emerging Fields: Lightweight structural components for humanoid robotics and high-performance 3D printed components.
A: Our manufacturing system is certified under ISO 9001:2008 for quality management. Additionally, our products carry SGS, CE, and RoHS marks, and fully meet environmental safety standards such as REACH and EN71.
A: For our semi-finished stock profiles, we are highly flexible and can accommodate orders as small as a single piece. For custom-machined parts, the minimum order details are worked out based on the specific shape, size, and production process.
A: We typically require an initial deposit before production begins, with the remaining balance due once the order is complete. Right after we receive full payment into our HSBC Hong Kong account, we arrange immediate shipping. Free samples of our semi-finished profiles are available if we have them in stock, with the client covering shipping costs. The samples will match the quality and specs of your future bulk orders exactly.
A: In-stock profiles ship out on the same day that payment clears. Custom orders generally take 7 to 10 days, depending on the order volume and processing steps. We typically ship by air or sea using reliable express carriers like DHL or FedEx. If you prefer to use your own courier or freight forwarder, we can easily arrange that as well.
