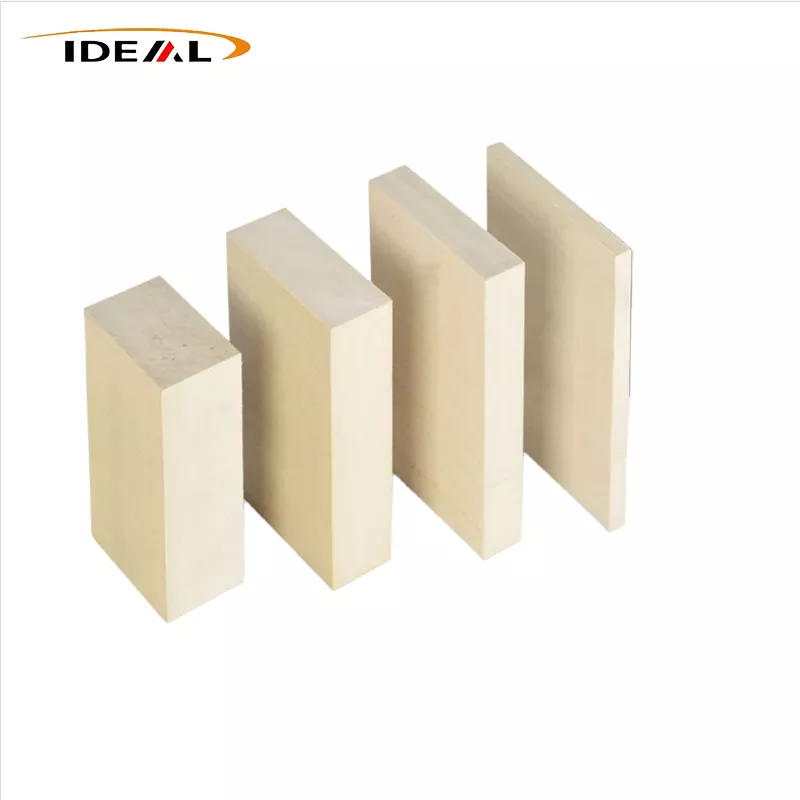

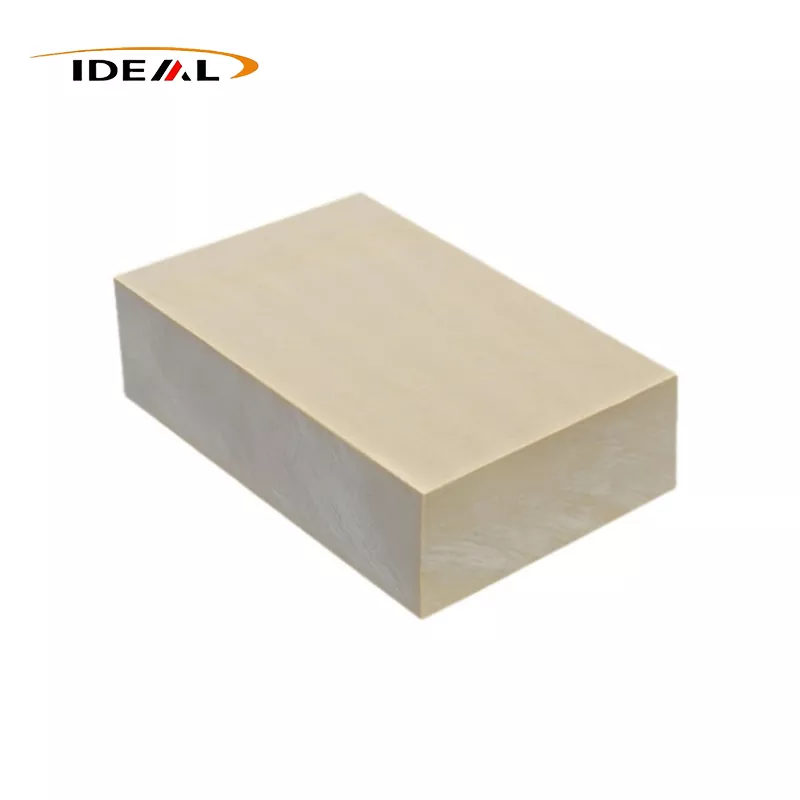

PEEK GF30 Plates

PEEK GF30 plates is a 30% glass fiber reinforced specification, with very stable size, chemical corrosion resistance and creep resistance. After the addition of glass fiber, the thermal expansion coefficient of the material is significantly reduced, the bending modulus is also increased, the strength and rigidity are stronger, and the wear resistance and toughness are also maintained well. Because of these advantages, it is often used in parts that require high strength, rigidity and stability.

For GuangZhou Ideal, we have been constantly upgrading technology and equipment, and continuously improving our R&D strength. Our team particularly likes to work with customers to make customized adjustments to PEEK GF30 sheet products and make more competitive differentiated products according to their different needs. The company now has advanced production equipment and accumulated experience for many years, which can stably produce high-quality glass fiber reinforced bars, plates and pipes. If required by customers, we also support the direct production of final parts that meet the requirements through numerical control processing or injection molding.

products data：

Product properties：

On the basis of retaining the basic properties of PEEK, our company's PEEK GF30 plates adds glass fiber to make the material more rigid and wear-resistant:

1. Mechanical properties

The tensile strength of pure peek is about 90-100 MPa, but after adding 30% glass fiber, the tensile strength can be increased to 150-180 MPa, an increase of 60-80%. The glass fiber itself is very strong, which can help share the external force and limit the sliding between peek molecular chains. The bending modulus has also jumped from the original 3-4 GPa to 10-12 GPA, and the deformation resistance has been significantly enhanced. It is especially suitable for high-precision parts, such as gears and bearings.

2. Corrosion resistance

In addition to concentrated sulfuric acid, our company's PEEK GF30 sheet is not afraid of any solvents and strong acids and bases, and its chemical stability is very good. Even if the temperature is relatively high, it is still stable and not easy to be corroded.

3. Tribological performance

The glass fiber itself is relatively hard, which reduces the friction coefficient of peek from 0.3-0.4 to 0.15-0.2, and the wear rate is significantly reduced. For example, peek containing 15% glass fiber was used for a hydraulic seal ring, and its service life was extended from 800 hours to 3000 hours. However, it should be noted that too much glass fiber (more than 40%) may abrade the mating parts, so we generally use it with PTFE or graphite as lubricating materials.

4. Hydrolysis resistance

Even when peek products of our company are immersed in steam at 260 ° C or in high-pressure water for a long time, the performance is basically not off-line, and it can work for thousands of hours. In common engineering plastics, peek has excellent water and steam resistance.

5. Long term heat aging performance

The addition of glass fiber slowed down the aging rate of PEEK molecular chain at high temperature. After 1000 hours at 200 ℃, the strength retention rate of Glass Fiber Reinforced PEEK is 20% -30% higher than that of pure peek. This is mainly because glass fiber forms a physical barrier to block the penetration of oxygen.

6. Dimensional stability

The size of our company's Glass Fiber Filled PEEK plate is very stable, whether in high temperature or humid environment. Peek has small linear expansion coefficient and low water absorption, so its shape and size are basically stable even if the temperature and humidity change.

Where can you actually use this stuff?

1. oil and gas

2. electronics and semiconductors

3. pump and valve industry

4. biomedicine

5. chemical analysis

6. sophisticated industry

Choose us:

GuangZhou Ideal has been focusing on how to make products and technologies better. Relying on our excellent technology, the advanced equipment in our hands, and the experience accumulated over the years, we can achieve the accuracy and stability of PEEK GF30 plates to the current level. To tell you the truth, from material selection, production and processing, to the final inspection before leaving the factory, we have a very close eye on every link, and we dare not be careless at all - that is, we hope that every product we have in our hands is particularly reliable and reassuring.

Application

biomedicine

chemical analysis

electronics and semiconductors

oil and gas

pump and valve industry

sophisticated industry

FAQ:

So, what does your company do?

We're Guangzhou Ideal Plastic Technology Co., Ltd. Our company was first set up in Hong Kong back in 2011, and our factory is based in Huangpu District, Guangzhou. Basically, we focus on R&D and production of special engineering plastic semi-finished profiles—materials like PEEK, PAI, PI, PPS, PPSU, and PEI. Besides that, we also handle follow-up orders for CNC machining and injection molding parts.

Can you provide samples?

Sure! If you need samples for testing our profile materials, we can usually offer them for free if we have them in stock. You’d just need to cover the shipping cost. And don’t worry—the sample quality will be exactly the same as what you get in bulk orders later.

How long does delivery take?

If the profile products are in stock, we can ship them out as soon as payment comes through. For custom orders, it really depends on the quantity and specific processing requirements. We’ll figure out the timeline together once we have the details.

What’s your delivery method?

Normally, we ship by air or sea using express carriers like DHL or FedEx—it’s fast and straightforward. But if you have your own freight forwarder or logistics partner, that’s fine too—we can work with your arrangements. Shipping costs are handled by the customer and will be calculated based on the product’s size, weight, and destination.

Can we sign a confidentiality agreement?

Absolutely. If your product drawings or images need to stay confidential, we’re totally open to signing an NDA. We take this seriously—we won’t upload any of your info online or share it with others. If we break this rule, we’re fully liable under the law.

What are your advantages?

We’ve been in the special engineering plastics field for over 14 years and have applied for quite a few patents. Our team is experienced, and we use advanced equipment. We’re always improving our processes to work more efficiently, which helps keep costs reasonable. Right now, we work with thousands of customers both locally and internationally, supplying them with reliable products at fair prices.
