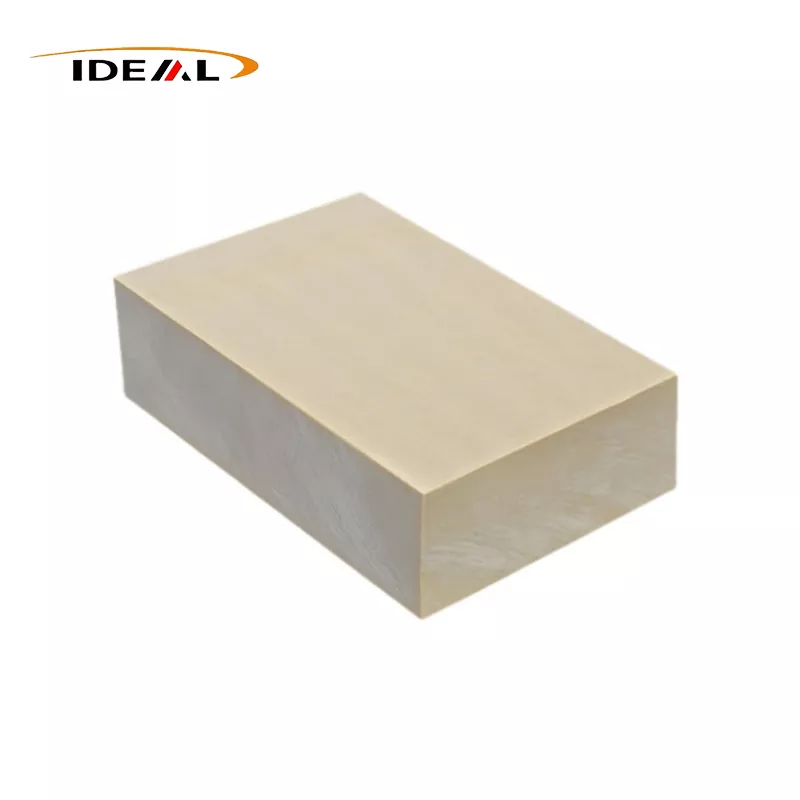

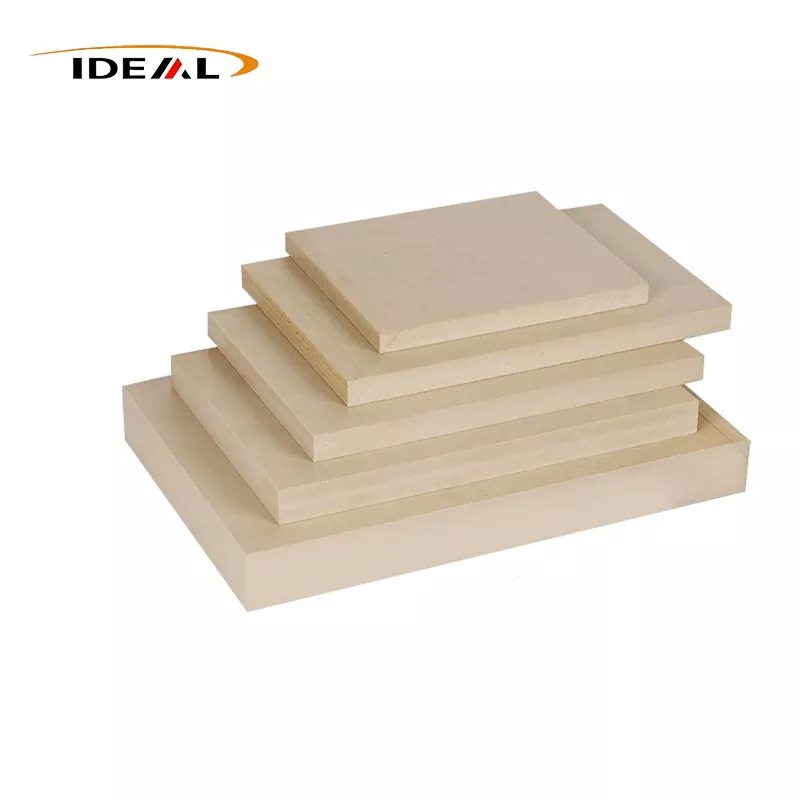

Glass Fiber Reinforced PEEK Sheets

Thanks to the glass fibers, Glass Fiber reinforced PEEK sheets holds its shape better than pure PEEK under high heat and pressure. PEEK’s glass transition temperature is around 150°C; go above that and it enters a glassy state where recrystallization can happen, which weakens its mechanical strength. But with glass fibers mixed in, recrystallization is reduced, so it deforms less and stays more stable under those tough conditions. Glass fibers themselves bring a lot to the table: they’re strong, affordable, and bond well with PEEK. Adding them boosts the material’s mechanical properties and wear resistance noticeably. Once the glass fiber content hits a certain level, the composite really shines—tensile strength and flexural strength jump up, dimensional stability improves, and it resists chemical corrosion and creep like a champ.

Over at GuangZhou Ideal, we’ve been focused on R&D and manufacturing of PEEK profiles and parts since 2011—that’s well over ten years in the game. We run several mature extrusion lines for PEEK profiles, hold multiple utility model patents, and carry certifications like ISO, RoHS, and CE. As a factory, we have our own R&D and production teams, so we can tailor Glass Fiber Filled PEEK sheet just how you need it—whether that’s custom dimensions or adjusting the glass fiber content (we can do anywhere from 10% to 40%). Every product comes with an authoritative test report, so quality is a given. In production, we keep a tight grip on every step to make sure PEEK CF30 sheet stays consistent and reliable, meeting whatever real-world needs you throw at it.

products data：

Product properties：

1.Glass Fiber reinforced PEEK sheets material gets a boost from glass fiber reinforcement, making it stiffer, tougher against impacts, and more resistant to heat. It's a great fit for automotive parts and electrical insulation, especially where you need high strength, minimal deformation, and good heat resistance.

2.Better friction performance: Once glass fiber is added, the friction coefficient of PEEK drops noticeably—from about 0.3–0.4 down to 0.15–0.2. Wear is also much lower, roughly by a factor of ten. But keep in mind: if you add too much glass fiber (over 40%), it might start wearing down the parts it's paired with. That's why it’s usually combined with lubricants like PTFE or graphite.

3.Self-lubricating: Glass Fiber Filled PEEK sheet runs smoothly on its own, so you often don’t need extra oil or grease. This means quieter operation and parts that last longer.

4.Handles the heat: With 10–30% glass fiber added, PEEK gets even stronger, more heat-resistant, and tougher against wear. It can run continuously above 250°C and even handle short bursts up to 330°C. That makes it ideal for high-precision wear parts under long-term heat and pressure.

5.Chemically stable: PEEK CF30 sheet holds up well against most chemicals—acids, bases, and organic solvents rarely bother it. In chemical plants, using it for parts like pipes and valves that touch corrosive stuff helps equipment last longer, cuts maintenance costs, and keeps things running efficiently.

6.Stays in shape: Compared to plain PEEK, this glass-reinforced plastic is stiffer, resists deforming, and holds its dimensions better. It’s good for structural parts, keeping its shape even under stress at high temperatures. One note: if it’s used in sliding applications, watch out for possible scratching on the mating surface. Running a quick test beforehand is a smart move.

Where can you actually use this stuff?

1.Aerospace has some of the toughest material standards out there. Glass Fiber reinforced PEEK sheets is a great fit for aircraft parts because it’s light, strong, and can handle high heat and corrosion without breaking down. Using it cuts weight, saves fuel, and makes parts more durable and reliable—even under extreme flying conditions.

2.Over in auto manufacturing, PEEK is also a go-to material. You’ll find it in engines, brake systems, and interior parts. It stands up to high temperatures and pressure, which helps boost engine efficiency and performance. In brake pads, it cuts down on noise and makes braking smoother and more reliable. Inside the cabin, PEEK is used in things like seat adjusters and dashboard frames—making them sturdier and giving them a more premium feel.

3.Glass Fiber Filled PEEK sheet really shines in electronics too. It’s a good insulator, heat-resistant, and holds its shape well. That’s why it’s often used for packaging components, connectors, switch housings, and circuit boards. Take 5G gear, for example—connectors made from PEEK can handle high-speed data transfer and resist the heat inside the device, keeping your signal stable without dropouts.

4.When it comes to medical equipment, PEEK has a lot going for it: it’s biocompatible, safe, and doesn’t irritate the body. That makes it a trusted choice for things like artificial joints, spinal implants, and dental tools that come into direct contact with patients.

5.In industrial machinery, PEEK CF30 sheet is commonly picked for high-precision, high-performance parts. Think critical components like lead screws, nuts, guide rails, and sliders in CNC machines—it helps improve accuracy and keeps everything running smoothly.

6.PEEK also plays a key role in the semiconductor industry. It’s used to make wafer transfer arms, etching chucks, and similar parts. It resists corrosive stuff like fluorine-based plasma and won’t shed metal ions, so it doesn’t contaminate silicon wafers. That alone can bump up chip yields by around 5% to 10%.

Choose us:

Our company, GuangZhou Ideal, started here in China, and we’re proud to be a trusted maker of Glass Fiber reinforced PEEK sheets. The quality is consistent, and the pricing is fair—no surprises. You’ll find our products all over the world, from Europe to North America. We’ve always believed in keeping things reliable and affordable. Got questions or want to know more? Just reach out—we’re here to help!
