PEEK HPV Sheets

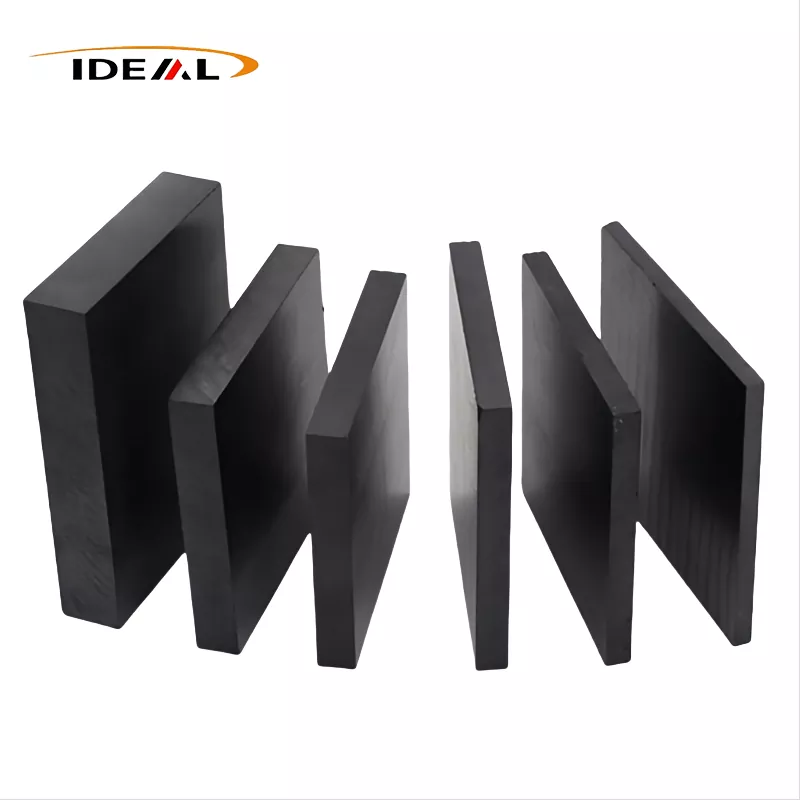

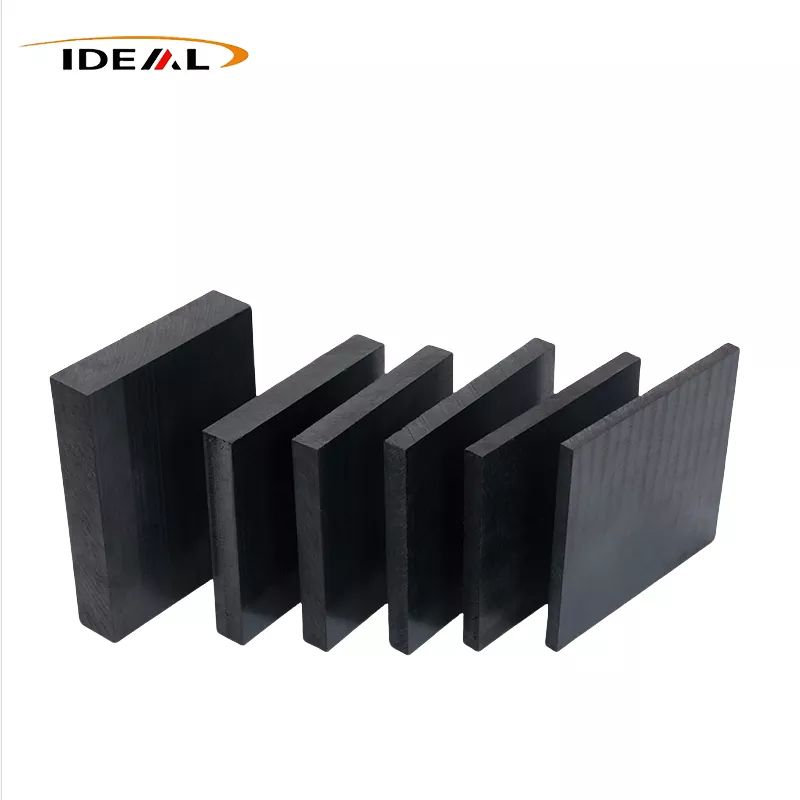

Optimize your rotary and sliding equipment with Customized PEEK HPV Sheets produced by Ideal Plastic. Engineered with a proprietary 10% carbon fiber, 10% graphite, and 10% PTFE formulation, these black stock sheets offer unparalleled self-lubricating wear resistance. Our ISO 9001:2008 factory ensures zero structural voids, allowing precision machining of maintenance-free thrust washers and bushings.

Overcoming Stick-Slip: How the Triple-Filler System Enhances Tribological Reliability

In dynamic systems, dry start-ups and variable loads cause localized micro-welding, stick-slip noise, and rapid material degradation. Our specialized PEEK HPV Sheets resolve these operational issues through a synchronized multi-component formulation that forms a continuous lubricating transfer film during sliding contact.

PTFE Friction Mitigation: The 10% polytetrafluoroethylene (PTFE) additive features an extremely low surface energy. This creates an immediate, low-resistance boundary layer that slashes the starting friction coefficient and keeps dynamic sliding smooth under immediate mechanical load.

Graphite Lubrication Network: The integrated 10% graphite features a layered molecular structure. When shear forces are applied, these atomic layers slide smoothly past one another. Testing indicates that incorporating graphite optimizes the overall sliding coefficient, especially when fine particles are used to ensure uniform dispersion.

Carbon Fiber Core Reinforcement: To offset the loss of mechanical strength caused by soft PTFE, 10% carbon fiber is compounded into the semi-crystalline PEEK matrix. This fiber network acts as a structural backbone, improving load capacity and accelerating heat dissipation away from the rubbing surface.

Products Data

Why Do Critical Aerospace and Automotive Components Depend on Self-Lubricating PEEK?

From sub-zero launch pads to high-RPM transmissions, standard metals require continuous grease lubrication, which risks outgassing in vacuums or thermal breakdown under hoods.

Aerospace Internals: Within aircraft propulsion units, these composite sheets are machined into seals, dynamic bearings, and high-temperature gaskets. They handle severe heat and operate smoothly without grease, helping to reduce weight and extend maintenance intervals.

Automotive Powertrains: Under the hood, the material is utilized for dry-running piston rings, valve seals, and transmission parts (gears, bearings, and synchronizer rings). Its self-cleaning and self-lubricating properties help automotive assemblies run quieter and last longer.

Maintaining Structural Rigidity Under Continuous 260°C Thermal Stress

Standard engineering polymers soften and creep when temperatures rise, leading to seal failure or bearing seizure.

High-Temperature Retaining Limits: The semi-crystalline PEEK base has a glass transition temperature (T_g) of 143°C and a melting point of 343°C. Compounding it with carbon fibers and graphite raises the heat deflection temperature (HDT under a 1.8 MPa load) to over 328°C.

This structural stability allows components machined from our sheets to operate continuously at 260°C in atmospheric environments, with reinforced variations handling temperatures up to 300°C without drooping or losing dimensional tolerances.

Uncompromising Chemical Inertness and Steam Sterilization Survivability

Industrial processing lines and medical equipment face harsh chemical exposure and strict sterilization cycles that quickly degrade lesser materials.

Exceptional Chemical Stability: Due to the stable benzene rings along the PEEK polymer main chain, the composite resists attack from organic solvents, industrial oils, concentrated alkalis, and strong acids. It maintains its mass and properties even when exposed to highly corrosive reagents, with the exception of concentrated nitric or sulfuric acid.

Hydrolysis and Steam Resistance: With a water absorption rate under 1%, PEEK HPV Sheets retains its full mechanical strength and dimensional stability through repeated autoclave steam sterilization cycles. This makes it an outstanding choice for medical devices, food processing equipment, and chemical reactors where aggressive sanitation is mandatory.

Precision Manufacturing Across High-Tech Sectors

Thanks to its low wear rate, high radiation tolerance, and excellent dimensional stability, this wear-resistant composite is utilized across several advanced industries:

• Semiconductor & Electronics: Used for high-stability printed circuit boards, electronic component encapsulation, connectors, and static-dissipating fixtures.

• Energy Sector: Highly stable in high-radiation environments, making it suitable for critical seals and structural parts in nuclear power plants.

• Industrial & Mechanical Machinery: Machined into pump impellers, bushings, valve linings, and compressor sealing rings that handle repeated cyclic stress without fatigue.

Structural Specifications

Why Procurement Teams Choose Ideal Plastic for PEEK HPV

When procuring high-value composites, material consistency and supply-chain transparency are critical to avoiding assembly line failures. Ideal Plastic delivers verified quality at every stage:

• In-House Profile Extrusion: Unlike brokers who source sheets from third parties, we run our own PEEK profile extrusion lines in Guangzhou. This direct control over the manufacturing process ensures complete structural homogeneity, preventing internal voids and soft spots that cause parts to fail during machining.

• Traceable Raw Materials: We source our raw resins and high-purity fillers from leading international and domestic brands. Each batch of raw materials is fully traceable and comes with a manufacturer's material report.

• Advanced CNC Machining Center: Equipped with professional CNC turning, milling, and 5-axis machining centers, we can deliver both raw stock sheets and custom finished parts under one roof, reducing shipping costs and lead times.

• Strict Quality Control: Every production run is validated by professional quality inspectors in our testing lab, ensuring full compliance with ISO 9001:2008 standards.

Frequently Asked Technical Questions

Q1: How does the addition of soft PTFE affect the mechanical strength of these composite sheets compared to unfilled PEEK?

A: Adding PTFE on its own reduces the tensile strength and hardness of PEEK. To offset this, our formulation incorporates 10% carbon fiber. This reinforcement restores the material's mechanical strength and stiffness, allowing the composite to handle high-pressure sliding loads while maintaining its low-friction properties.

Q2: Are these composite sheets suitable for high-radiation applications, such as nuclear plant components?

A: Yes. The stable benzene ring structure of the PEEK HPV Sheets backbone provides outstanding radiation resistance. Under heavy radiation, the material resists oxidation and maintains its structural and mechanical properties far better than most other industrial plastics, making it an excellent choice for nuclear plant components.

Q3: What are the lead times for standard stock sizes versus custom-dimension orders?

A: Standard stock profiles are available for immediate, same-day shipment upon payment verification. Custom sizes or molded configurations generally require a 7-to-10 day production cycle, depending on the volume and specific machining requirements. Free samples of stock profiles are available for customer testing, with the client covering shipping costs.
