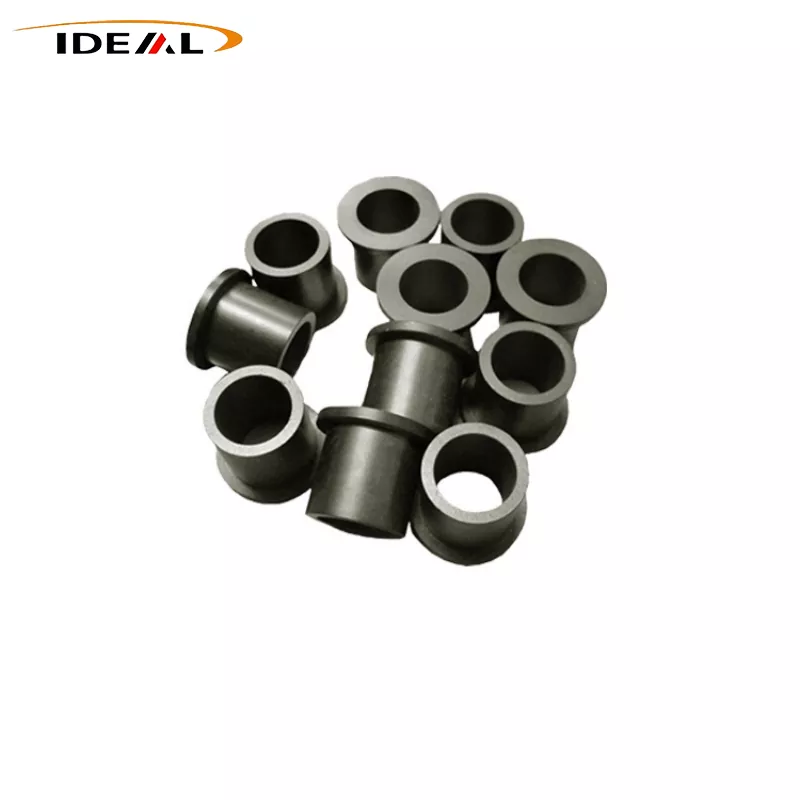

Ideal Plastic's durable PEEK bushings are cylindrical components featuring a flange or step structure at one end. They are primarily manufactured through precision machining of PEEK rods and tubes, while injection molding is available for mass production orders to boost efficiency. Functioning as professional sliding bearings, these bushings are widely applied for positioning, friction reduction and wear resistance in mechanical systems, and they are perfectly categorized as high-performance sliding bearing parts. Get a quote!
What Ideal Plastic factory's PEEK bushings really does is replace metal bushings. It helps reduce wear on the shaft, absorbs vibration, and softens the impact from mechanical friction. In plain English, it makes your equipment last longer. Since PEEK is self-lubricating, you don't need to add any grease or oil—it works fine even during dry running. When used on rotating shafts or moving parts, it also acts as a guide, a limiter, and a concentric positioning part. So it really takes full advantage of PEEK's excellent mechanical properties.
The PEEK bushing comes with all the benefits of PEEK material: high-temperature resistance, wear resistance, corrosion resistance, and high strength. That's why it's a top choice among high-end sliding bearings and wear-resistant parts. Pure PEEK on its own already has great self-lubricating and creep resistance. If you add reinforcements like carbon fiber, glass fiber, PTFE, or graphite, you can boost its mechanical properties, wear resistance, corrosion resistance, and dimensional stability even further.

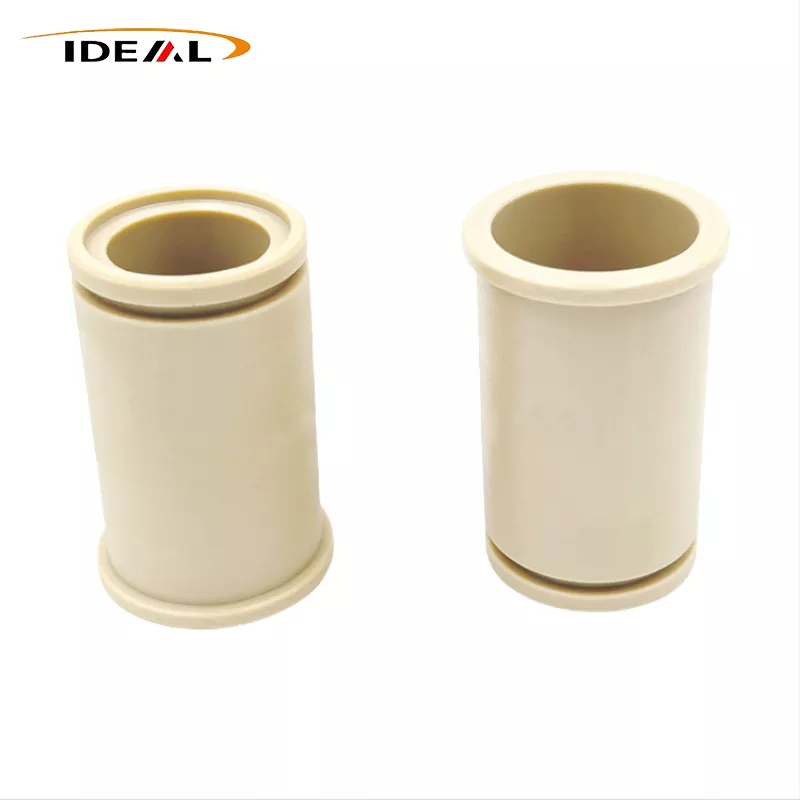

The PEEK flanged bushing is a precision cylindrical component with a flange/step at one end. It is manufactured by precision machining of PEEK rods and tubes, with injection molding available for mass production. It serves as a professional sliding bearing for mechanical positioning and motion matching.
Available in pure PEEK and modified reinforced PEEK, including carbon fiber-filled, glass fiber-filled, and PTFE/graphite-filled grades. Modified materials achieve more stable mechanical properties and wear resistance.
Strictly compliant with drawing tolerance standards. Conventional precision meets standard industrial tolerances, while high-precision models can reach ±0.01mm, and ultra-precision versions up to ±0.005mm.
Finished products feature smooth inner and outer surfaces without scratches, cracks, dents, shrinkage marks, burrs or rough edges. Modified fillers are evenly distributed without local accumulation.
Supports ODM and OEM customization. All sizes, colors and structural parameters can be adjusted according to customer drawings and sample requirements.
|
Product name |
PEEK bushings |
|
Material |
Pure PEEK, fiber-reinforced PEEK, abrasion-resistant PEEK |
|
Color |
Nature,black |
|
Size |
ODM/OEM/Drawing |
|
Tolerance |
According to customer requirements |
|
Forming method |
according to product shape and order quantity |
|
Minimum order quantity |
negotiation |
|
Lead time |
7-15 days |
PEEK itself provides superior self-lubricating performance with a low friction coefficient, requiring no grease or oil lubrication and supporting long-term dry running. Modified reinforced grades further enhance wear resistance, effectively reducing shaft wear and extending equipment service life.
Possesses ultra-stable chemical properties, resistant to strong acids, strong alkalis, salts, various organic solvents and seawater. No swelling or deformation occurs even in high-temperature and high-pressure corrosive environments.
Delivers fatigue resistance comparable to or even superior to certain metals. It can withstand more than ten million cycles of repeated stress and high-frequency vibration without cracking or structural failure, far outperforming ordinary plastics.
Resists permanent deformation under long-term stress. It maintains stable dimensional accuracy even at high temperatures, with significantly lower creep deformation than polyamide materials under 200°C high-stress conditions.
With a glass transition temperature of 143°C and a melting point of 343°C, it supports continuous long-term operation at 250–260°C and can withstand short-term ultra-high temperature impacts.
Medical-grade PEEK features excellent biocompatibility without causing human tissue reactions, suitable for medical implant devices. Meanwhile, it has low VOC, dust-free performance and reliable insulation properties, adapting to high-standard clean environments.
Effectively absorbs mechanical vibration and relieves friction impact, stabilizing mechanical operation and reducing equipment failure rates.
Ideal for transmission shafts, hinges, connecting rods and other moving parts. Its oil-free self-lubrication and high dimensional stability ensure stable operation of precision mechanical equipment.
Suitable for cleanroom equipment, vacuum devices, wafer handling equipment and robotic arm parts. It features zero dust generation, plasma corrosion resistance and stable insulating/antistatic performance.
Widely used in chemical pumps, wastewater treatment devices and corrosive fluid pipeline equipment, resisting various chemical medium erosion and structural deformation.
Applied to valve stem bushings, valve core guide sleeves and hydraulic cylinder support parts, adapting to high-pressure hydraulic oil and complex chemical working conditions.
Perfect for filling, labeling, sealing and conveyor line shaft bushings. It withstands high-temperature cleaning and steam sterilization without metal dust pollution, meeting food-grade safety standards.
Medical-grade PEEK bushings can be used for medical devices and implant accessories due to safe and non-toxic biocompatible properties.
A high-tech enterprise established in 2011, with a Guangzhou Huangpu factory and R&D center. It has over 14 years of special engineering plastic production and R&D experience, holding multiple utility model patents.
Equipped with complete profile production lines, 4/5-axis CNC machining centers, laser cutting equipment and a Class 100,000 dust-free injection molding workshop, plus professional quality inspection and laboratory equipment.
Implements full-process quality management from raw material procurement to finished product testing. Certified with ISO9001, SGS, CE and RoHS, complying with REACH and EN71 international environmental standards. All raw materials are from well-known brands with complete material reports.
Supports customized processing according to international mainstream 2D/3D drawings and customer samples, providing one-stop R&D, design and production solutions.
Semi-finished profiles support single-piece orders; free sample testing is available (customers bear freight). Multiple payment methods and flexible delivery cycles meet diverse customer demands.
Customers cover domestic China, Europe, America, Middle East, Japan, South Korea and Southeast Asia. Provides professional technical support, confidential agreements and quality problem free return/exchange services.
As a direct manufacturer, we optimize production processes, improve efficiency and reduce costs, providing high-precision and high-stability products with competitive prices.
For customized non-standard PEEK bushings, customers need to provide accurate drawings or samples. Product tolerance, size and filler ratio shall be confirmed in advance to avoid dimensional deviation.
Select pure PEEK or modified PEEK materials according to actual working conditions (temperature, corrosion, load, friction frequency). Carbon fiber/PTFE modified types are recommended for high-wear and high-load scenarios.
Free return and replacement is supported for product quality and assembly tolerance problems with factory-borne logistics fees. Returns caused by customer’s incorrect ordering shall be undertaken by customers (products must be resalable).
For customized confidential products, we can sign a formal confidentiality agreement to protect customer drawing and product information without external disclosure.
Although PEEK adapts to dry running and high temperature, long-term extreme overload and ultra-high temperature impact should be avoided to prolong service life.
A: We are a high-tech enterprise registered in Hong Kong in 2011, with factory and R&D center in Huangpu District, Guangzhou. We specialize in R&D, production and precision machining of high-end engineering plastics such as PEEK, PAI, PI, PPS, PPSU and PEI.
A: Yes. We adopt world-class brand raw materials with complete batch material reports. Equipped with a full set of testing equipment and professional QC team, we implement full-process quality control. All products reach industry-leading performance and can provide official product performance data sheets and test reports.
A: We have ISO9001:2008 quality management system certification, SGS, CE, RoHS certification reports. All products comply with international environmental standards such as RoHS, REACH and EN71.
A: Equipped with large-scale plastic profile production lines, various CNC machine tools, 4/5-axis machining centers, engraving machines, laser cutting equipment and a Class 100,000 dust-free injection molding workshop, supporting high-precision and mass production.
A: We support ODM/OEM customization, compatible with STEP, STP, STL, IGS and other mainstream drawing formats. We can also design, modify and produce products according to customer samples and actual working condition requirements.
A: Conventional PEEK semi-finished profiles support single-piece orders. The MOQ of customized precision parts can be negotiated according to processing technology and product size.
A: Free samples are available for performance testing if in stock. Customers only need to bear the freight cost. The performance of sample and mass-produced products is completely consistent.
A: Adopt deposit + balance payment mode. We accept payment via Hong Kong HSBC bank account or designated freight forwarder, and arrange delivery immediately after receiving the full balance.
A: In-stock profile products can be shipped immediately after payment. The lead time of customized products is 7–15 days, subject to order quantity and production process.
A: We cooperate with DHL, FedEx and other international logistics providers, supporting air and sea freight. We also accept customer designated logistics companies. Freight cost is borne by customers.
A: For quality and assembly problems, we provide free return and exchange service with our own logistics cost. For customer personal reasons leading to return, customers bear the freight (products must be undamaged).
A: Yes. We can sign a formal confidentiality agreement for customer’s drawings and customized products, and bear corresponding legal responsibilities to ensure information security.
A: We provide full-cycle after-sales service. Customers can contact our professional technical team at any time for product use problems and technical consultation.
A: We have 14+ years of engineering plastic R&D and production experience, independent patent technologies, advanced full-set production equipment and mature production processes. We provide high-precision, high-performance and cost-effective products and one-stop solutions for global customers.
GuangZhou Ideal is the original manufacturer of PEEK bushings. We have our own professional R&D and production team, and we can customize products to meet customer needs. We also provide official test reports you can trust. So we're a reliable partner. We keep a close eye on every step of production to ensure quality and do our best to meet your requirements. Request a quote!
