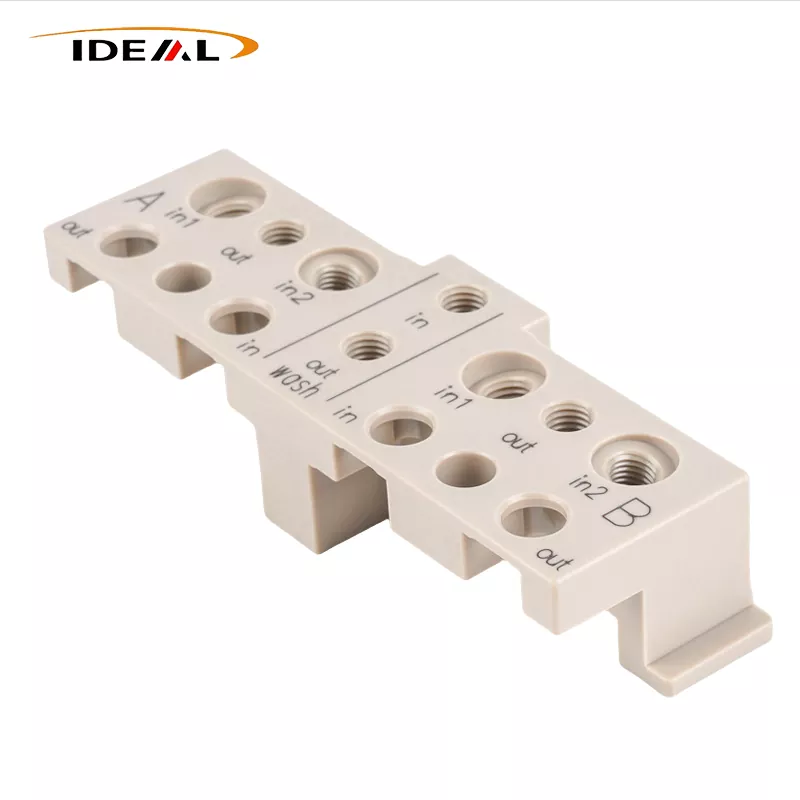

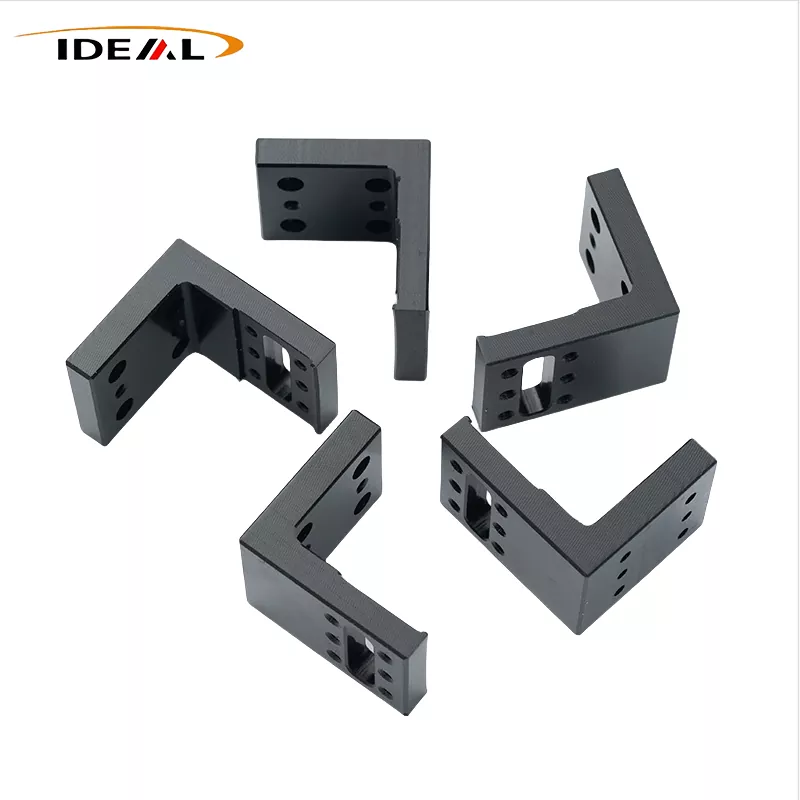

PEEK CNC Machined Products

Our PEEK CNC machined products are all made using high-end equipment—CNC lathes, milling machines, grinders, drills, plus CNC machining centers, five-axis centers, CNC engravers, and more. To stay competitive, ID123 has invested heavily in bringing in this professional gear. No matter the shape or size of your part, we can handle it. And even the PEEK profiles we use for CNC machining are produced in-house. From raw material to finished product, we manage the whole process ourselves. Every step is carefully checked so we can deliver top-quality products and service.

GuangZhou Ideal has been making products like PEEK CNC product for over fourteen years. We’ve got a skilled technical team that focuses on the following during production to make sure the quality stays excellent:

1.Workspace cleanliness: We keep the workshop clean and organized, cutting down on dust and other contaminants. That way, nothing interferes with the machining process.

2.Preheating the material: Before we start machining, the material gets preheated. This helps avoid warping or distortion. Actually, PEEK profiles already go through heat treatment right after extrusion to prevent stress buildup.

3.Tool and fixture care: We regularly check and replace cutting tools and fixtures. That keeps both quality and efficiency high.

4.Fine-tuning as we go: During machining, our techs keep a close eye on the equipment. If needed, they adjust settings or swap out tools to make sure every step goes smoothly.

products data：

Product properties：

Mechanical Properties

PEEK CNC machined products is really good at handling long-term stress and repeated loading without wearing out—that’s what we call excellent creep and fatigue resistance. If you mix in glass or carbon fiber, it gets even stronger and stiffer. But like most plastics, if things heat up past its glass transition point, it’ll start to lose some strength and stiffness.

PEEK, on the other hand, is a tough, semi-crystalline polymer. It’s got a high melting point and glass transition temperature, so even above 200°C, it still holds up well in strength and hardness.

Wear Resistance & Self-Lubrication

PEEK naturally has a low friction coefficient. But add some graphite into the mix, and that friction can drop as low as 0.15. In tests under a 200N load spinning at 1500 rpm, it only wore down 0.003 mm every 1000 hours. That makes it perfect for moving parts like bearings and gears—think robot joints. Parts made of PEEK can run millions of cycles without extra lube, and they’re about 30% quieter than metal ones.

Chemical Resistance

PEEK CNC product is super stable chemically, thanks to its tight molecular structure and strong chemical bonds. Most chemicals can’t really touch it—whether it’s acids like 10% HCl or 20% sulfuric acid, strong bases like sodium hydroxide or potassium hydroxide, salt solutions, or common solvents like ethanol, acetone, or toluene. Even after soaking for over 1000 hours, it barely changes—less than 1% weight change—and its structure and performance stay pretty much the same.

High-Temperature Performance

PEEK resin has a glass transition temperature of 143°C and melts at 334°C. While pure PEEK starts to deform around 152°C, blend in 30% glass or carbon fiber, and that heat resistance jumps—its deformation temperature can go above 300°C, even up to 316°C.

Creep Resistance

PEEK CNC machined part shows very little creep—meaning it hardly deforms over time, even under steady stress. PEEK is similar: at 200°C under high stress, its creep is much lower than materials like nylon, POM, or polyetherimide. That makes both materials great for precision parts, seals, pumps, and valves where staying in shape under pressure really matters.

Where can you actually use this stuff：

Power Industry:

PEEK can handle temps up to 260°C without breaking a sweat, and it’s a real champ when it comes to insulation—its breakdown voltage hits 20kV/mm. That makes it ideal for shielding high-voltage coils. Plus, it doesn’t mind moisture or harsh chemicals, so it holds up really well over time.

Aviation Industry:

PEEK CNC machined products is seriously strong on its own, but when you reinforce it with carbon fiber, its tensile strength reaches 200MPa. That means it can take the kind of hard knocks you get during flight. And unlike metal, it doesn’t really get "tired"—so metal fatigue isn’t something you have to stress about.

Mechanical Equipment:

This material is naturally slippery, so it lubricates itself, resists high temps, and doesn’t warp easily. That makes it perfect for parts that see a lot of friction, work in hot environments, or need to stay super precise.

Petrochemical Industry:

In oil and gas, you often need stuff that can stand up to heat, chemicals, and rough conditions. That’s why this material is a go-to for valves, seals, pipes, tube bundles, and all sorts of drilling tools—it’s tough, resistant, and reliable.

Military Manufacturing:

PEEK CNC product is a favorite in the defense world because it’s both lightweight and tough, plus it performs in all kinds of extreme situations. You’ll often find it in military aircraft structures, missile components, and spacecraft parts.

Lab Equipment:

It’s super gentle on biological tissues, doesn’t corrode easily, and can be made with really fine details. That makes it a great choice for lab gear—think bio-experiment tools, disposable lab items, and delicate instrument parts that need to be just right.

Choose us:

We're GuangZhou Ideal, the original manufacturer behind these products. Over the years, we've specialized in PEEK materials, and that's made us real experts in this field.

We know PEEK CNC machined products inside and out—every step of how it’s made. That means we can offer you not only reliable products but also professional advice tailored to your needs.

So if you're thinking of working with us, you can relax—we'll be a partner you can count on.

FAQ

What certifications do your products have?

We're ISO9001 certified for our quality management system. Our products also come with SGS, CE, and RoHS test reports, and they meet environmental standards like ROHS, REACH, and EN71.

What equipment do you use for production?

We’ve got a lot of specialized equipment, like large profile production lines, different kinds of CNC machines, CNC machining centers, plus 4-axis and 5-axis machining centers. We also have engraving machines, laser cutting equipment, and a 100,000-class dust-free injection molding workshop.

Can products be customized? How does that work?

Yes, we do customization. You can send us 2D or 3D drawings—common formats like STEP, STP, STL, or IGS work fine. If you have a physical sample, just send it over and we'll take measurements. And if you have special requirements, we can also help with design or adjustments.

What’s the typical delivery time?

If the profile products are in stock, we can ship as soon as payment comes through. For custom orders, the timeline depends on the order quantity and processing details—we can figure that out with you.
