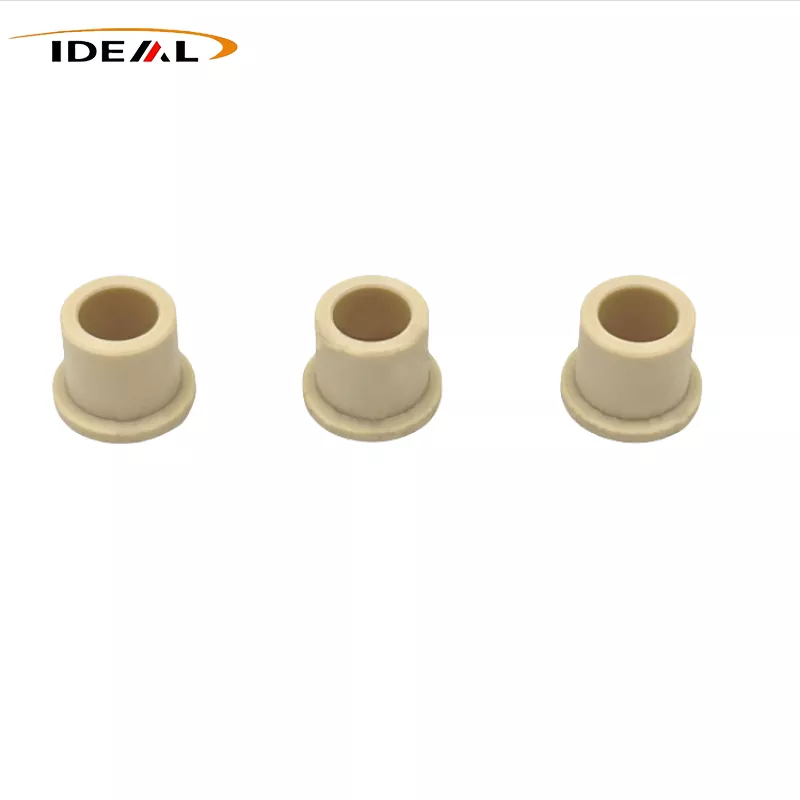

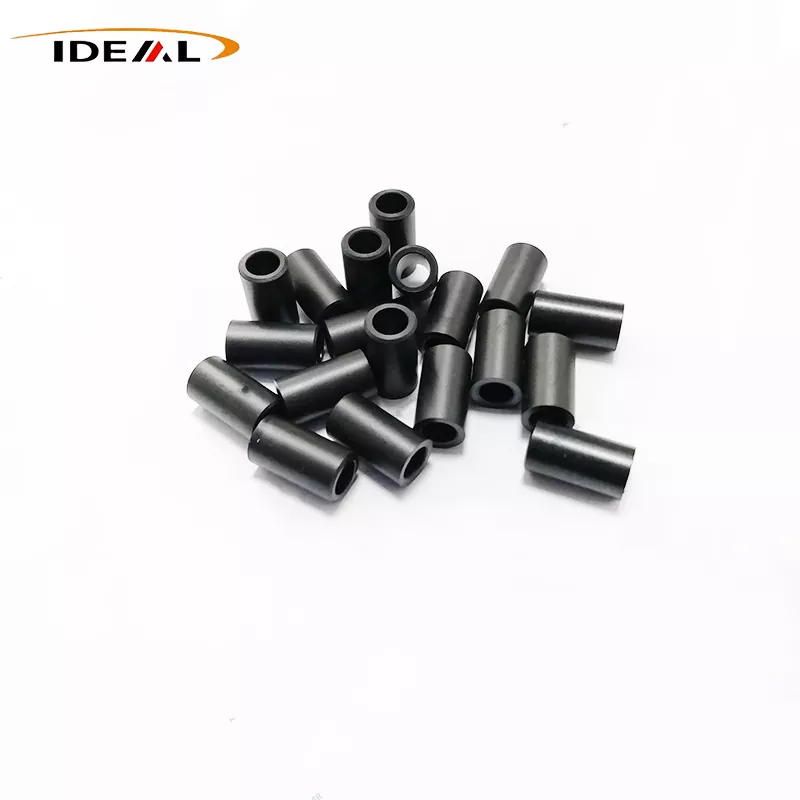

The China PEEK Shaft Sleeve from Ideal Plastic factory is a cylinder-shaped part that fits snugly around a shaft. It's one solid, continuous piece—not made from smaller bits stuck together—and the inside wall is smooth. Some versions even have a bit of a lubricating effect. The outside diameter matches the bearing housing perfectly, and the inside diameter fits the shaft just right. The wall thickness is pretty even all around, with no extra fixing bits like flanges or slots. Contact us!
1. Quality Guaranteed
2. ODM/OEM/Drawing
3. Competitive Prices
4. Main Function: to protect the shaft and cut down on friction
The main point of the quality PEEK Shaft Sleeve provided by Ideal Plastics manufacturer to reduce friction and protect the shaft. That’s why it’s made from PEEK—it’s self-lubricating and wears really well. PEEK plastic naturally lubricates itself, so you don’t need to add oil or grease. That means it can run without oil or with very little oil, which saves a lot on maintenance costs. It also has a very low coefficient of friction and a low wear rate, so friction between the shaft and bushing is noticeably reduced. That protects expensive shafts and makes them last longer. On top of that, PTFE and graphite are added to boost PEEK’s self-lubricating and wear-resistant properties even further. That’s why we call it “bearing-grade PEEK Sleeves.”
|
Product name |
PEEK Sleeves |
|
Material |
Pure PEEK, CF30 PEEK, HPV PEEK |
|
Color |
Nature,black |
|
Size |
ODM/OEM/Drawing |
|
Tolerance |
According to customer requirements |
|
Forming method |
according to product shape and order quantity |
|
Minimum order quantity |
negotiation |
|
Lead time |
7-15 days |
PEEK base material features inherent low-friction surface characteristics, eliminating the need for regular oil or grease lubrication during operation. After compounding with specialized functional fillers, the friction coefficient is reduced to 0.15, achieving ultra-low wear loss and reliable dry-running capability. The composite PEEK sleeve maintains stable friction and wear performance even under harsh working conditions including elevated temperatures, heavy mechanical loads and high-speed cyclic operation, delivering exceptional durability for long-service mechanical components.
This PEEK Shaft Sleeve exhibits outstanding chemical stability against most conventional corrosive media, including common acids, alkalis and various organic solvents. It features clear and reliable application boundaries: it is only susceptible to corrosion by concentrated sulfuric acid and slight discoloration from concentrated nitric acid. Incompletely crystallized PEEK materials may develop cracks in acetone-based solvents, while fully crystallized finished products adapt steadily to diverse complex liquid working scenarios without performance degradation or structural damage.
Outperforming ordinary plastic materials and matching the fatigue resistance of many metal components, PEEK sleeves withstand over ten million cycles of repeated mechanical stress and high-frequency vibration. It avoids fracture, structural loosening or fatigue failure after long-term cyclic operation, making it a reliable choice for high-demand core parts such as compressor rotors, transmission gears, bearing bases and valve structural components.
With high inherent resin rigidity and ultra-low thermal expansion coefficient, PEEK material delivers aluminum-alloy-level dimensional stability. The finished shaft sleeves resist thermal warping, structural deformation and high-temperature cracking under fluctuating heat environments, maintaining precise assembly dimensions and structural integrity for long-term high-temperature industrial operation.
The material possesses prominent anti-creep properties, effectively resisting permanent structural deformation caused by sustained mechanical stress. It retains complete geometric shape and stable mechanical performance during prolonged constant-load operation at high temperatures, solving the loose assembly and precision failure problems easily occurring in ordinary plastic parts under long-term stress.
Ranked first among mainstream engineering plastics in steam and hydrolysis resistance, our PEEK sleeves endure thousands of hours of continuous operation in 260°C high-temperature steam and high-pressure hot water with negligible performance attenuation. It supports stable long-term service in 200–250°C steam environments, perfectly adapting to high-temperature and high-humidity harsh industrial working conditions.
Our PEEK shaft sleeves are available in three professional material grades, including virgin pure PEEK, CF30 carbon fiber reinforced PEEK, and HPV wear-resistant modified PEEK. With customized fillers such as PTFE and graphite, the material achieves professional bearing-level performance, specifically engineered for friction reduction and shaft protection scenarios.
Adopts ultra-precision machining standards with multiple strict tolerance indicators. The standard tolerance reaches ±0.01mm, high-precision tolerance up to ±0.005mm, coaxiality deviation ≤0.01mm, roundness error ≤2μm, and axial straightness deviation ≤0.03mm/m. It maintains a dimensional deviation below 0.1% within the temperature range of -50°C to 260°C, effectively preventing thermal deformation and assembly failure.
Processed through standardized molding and finishing procedures. The inner and outer tube walls are smooth and flat without burrs, scratches, dents, bubbles or cracks. The end faces are neat and flat with uniform chamfer treatment and no flash, fully meeting precision mechanical assembly standards.
Supports full ODM and OEM personalized customization. All product sizes, structural shapes and color options (natural color/black) can be tailored according to customer drawings and actual usage demands. The processing scheme is adjustable based on product structure and order volume.
Suitable for precision electronic equipment, electrical appliance moving parts and insulating connection components. Its dust-free, low-VOC and self-lubricating properties ensure stable and clean operation of electronic precision structures.

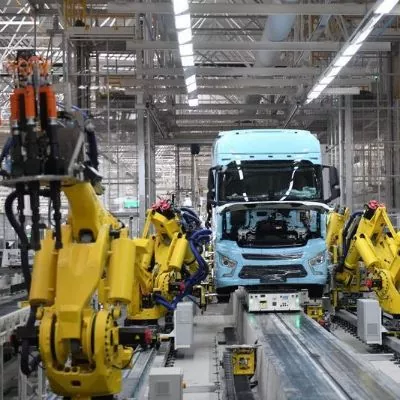

Applied to automotive transmission systems, chassis moving parts and friction accessories. It reduces component wear, adapts to vehicle high-frequency vibration and temperature fluctuation environments, and extends automotive component service life.

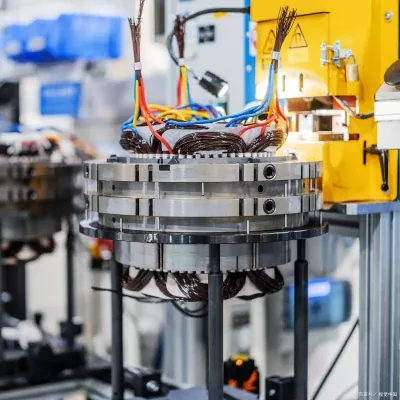

Ideal for precision instrumentation, transmission shafts, bearing accessories and micro moving structures. Relying on ultra-high dimensional accuracy and stable friction performance, it guarantees high-precision and zero-error mechanical operation.

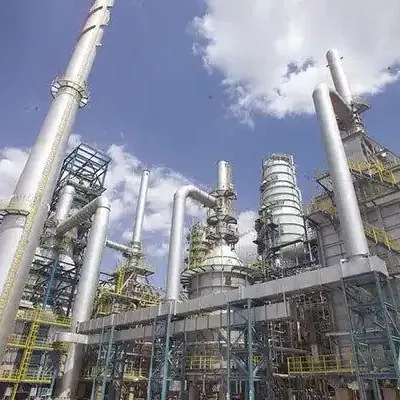

Widely used in chemical pumps, fluid delivery equipment and anti-corrosion mechanical accessories. It resists various chemical medium erosion and avoids structural damage in complex liquid working conditions.
Fits aerospace precision equipment, high-temperature resistant structural parts and vibration-resistant components. With metal-level fatigue resistance, high-temperature stability and lightweight advantages, it meets high-standard aerospace equipment requirements.
Ideal Plastics specializes in PEEK precision processing with 15 years of industry experience. Backed by a highly skilled engineering team and a full set of advanced professional production equipment, we fully support customized demands for all product sizes, shapes, and high-precision specifications.
We adopt premium-grade raw materials to produce PEEK shaft sleeves. Mature precision injection molding and compression molding technologies are applied, with strict, real-time control over production temperature, pressure and running speed to stabilize product fundamental performance.
We equip exclusive temperature-controlled and dust-free processing workshops. This standardized environment effectively avoids internal stress cracking and uneven crystallinity of PEEK materials, ensuring uniform and consistent internal structure of every finished bushing.
On the basis of integral molding, we provide complete post-processing services including turning, milling, and drilling. All customized secondary machining procedures strictly comply with drawing standards with zero unacceptable dimensional deviations.
All finished products undergo rigorous pre-delivery tests, covering full dimensional verification, professional performance testing (high-temperature resistance, wear resistance, corrosion resistance), and comprehensive visual inspection. Each production batch is sampled and tested independently with official inspection reports provided.
We implement strict quality screening rules to guarantee no defective products are delivered. All products from different batches maintain stable and consistent performance and quality.
We select the most suitable processing method according to actual order quantity, product size, structural shape and precision requirements. Proficient in all PEEK processing technologies, we balance product precision, performance and production efficiency.
Our optimized production processes effectively reduce unnecessary material waste while ensuring high product quality and precision. We deliver cost-effective PEEK sleeves with competitive prices to help customers control procurement costs.
A: We provide three mainstream bearing-grade PEEK materials to match different working conditions, including pure virgin PEEK, 30% carbon fiber reinforced CF30 PEEK, and HPV wear-resistant modified PEEK with PTFE and graphite fillers. All raw materials are industrial standard grade with complete test reports.
A: The core advantage is effective shaft protection and friction reduction. The oil-free self-lubricating property lowers shaft friction loss, while excellent wear resistance and structural stability prevent shaft damage. It greatly reduces equipment maintenance costs and prolongs the service life of expensive mechanical shafts.
A: We support ultra-precision customized processing. The standard tolerance is controlled within ±0.01mm, and high-precision products can reach ±0.005mm. Multiple indicators such as coaxiality, roundness and straightness are strictly controlled, and the product dimension remains stable within -50°C to 260°C.
A: As an original PEEK manufacturer, we implement source quality control. We adopt temperature-controlled dust-free workshops to avoid internal material defects, apply precise molding parameter control, and conduct full-item batch sampling tests. All finished products have flawless appearance and stable batch consistency.
A: The minimum order quantity is negotiable according to product type and processing technology. The conventional production lead time for all customized PEEK shaft sleeves is 7 to 15 working days, ensuring efficient delivery while guaranteeing precision quality.
A: The products support dry-running, high-speed, high-load and high-temperature working environments. They resist hydrolysis and steam corrosion, operate stably in 260°C high-temperature steam, and maintain stable performance in most corrosive chemical media.
A: Yes. All adopted standard raw materials are equipped with complete industry qualification and material testing reports. We can provide corresponding batch inspection reports and performance test certificates for each batch of products.
GuangZhou Ideal is the original manufacturer. We control quality from the source.
Material Quality Requirements: We select standard grade raw materials to ensure that all performance characteristics meet industry standards. We can provide complete material testing reports.
Appearance Quality Requirements: Smooth inner and outer walls, free of burrs, scratches, dents, bubbles, and cracks. End faces are flat and without skewing, with uniform chamfers, free of burrs and flash.
