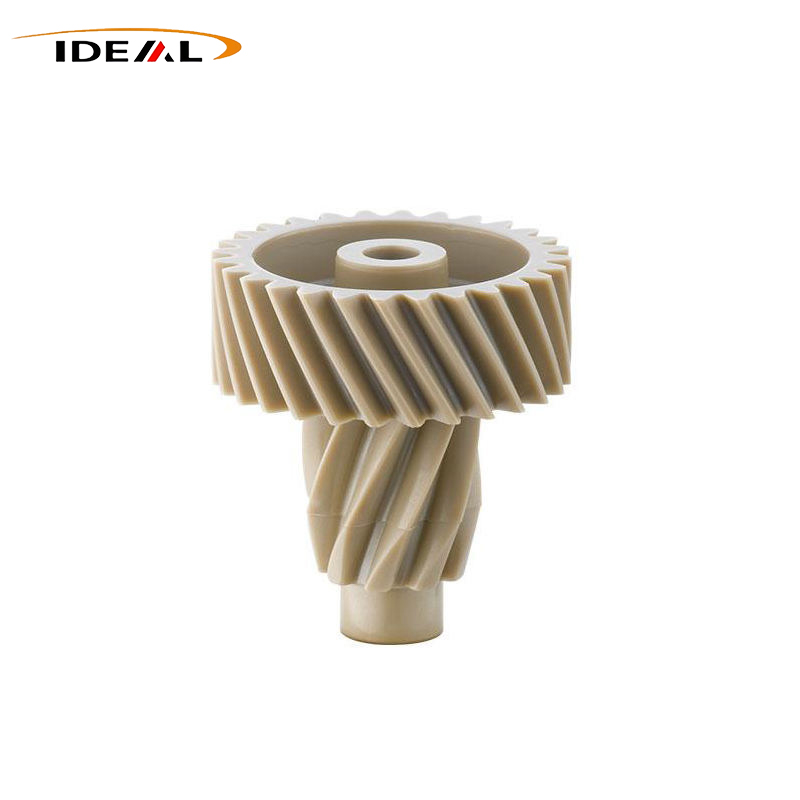

China PEEK Pinion Gear Manufacturer, Supplier, Factory

PEEK Plastic Injection Parts. We make it using top-grade PEEK plastic pellets. Here’s basically how it’s made: first, we process the raw material, then feed it into an injection molding machine where it gets heated up until it melts into something like syrup. After that, we inject that melted plastic into a mold, let it cool down and harden, then pop it out. A bit of follow-up work, and the part is done.Now, PEEK isn’t your regular plastic—it’s a special high-performance engineering plastic. If you look at its structure under a microscope, it’s pretty unique. Its molecules are full of aromatic rings and ether bonds. And it’s really that special structure that gives PEEK its natural toughness—it can handle high temperatures and resists corrosion like a champ, so it’s super stable and reliable.

Our polyetheretherketone products product is made from PEEK plastic, which comes as semi-finished profiles or can be custom-made into parts as needed. So, PEEK itself is a special kind of engineering plastic—it’s what’s called an aromatic crystalline thermoplastic polymer. It has a really high melting point, up to 334°C, and its glass transition temperature (Tg) is around 143°C. This material can reach a crystallinity level as high as 48%, though it usually sits between 20% and 30%. Also, in its amorphous state, its density is about 1.265 g/cm³, but when crystallinity is at the max, the density can go up to 1.32 g/cm³.

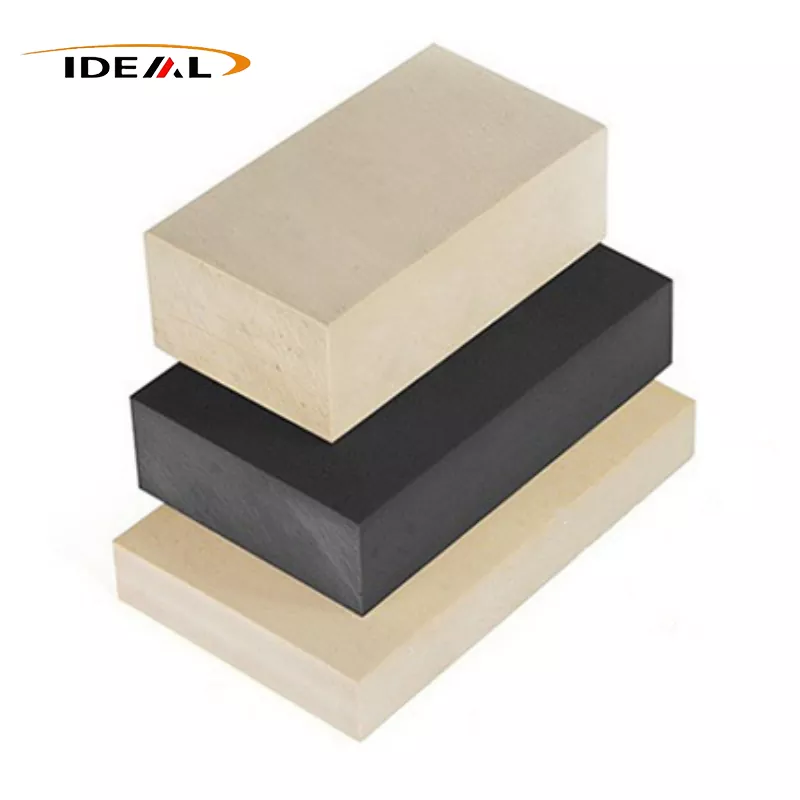

PEEK plastic plates PEEK profiles are known for their well-rounded performance and are widely used across different industries. PEEK, short for polyetheretherketone, is a semi-crystalline high-performance engineering plastic. It really excels in all sorts of areas—heat resistance, self-lubrication, chemical resistance, flame retardancy, hydrolysis resistance, wear resistance, and fatigue resistance. Thanks to ongoing improvements in synthesis and processing tech, we can further enhance certain properties of PEEK through methods like chemical modification, blending, or adding fillers. Since it's a thermoplastic, there are plenty of ways to process it: injection molding, extrusion, compression molding, and even melt spinning.

Ideal Plastic factory's Vespel SP-1 plates are filler-free pure polyimide sheets with a distinctive brown finish, serving as the foundational high-purity grade of the Vespel series. Sourced from authentic DuPont resin and precision compression molded, our SP-1 sheets cater to high-purity electronics, medical, aerospace and precision mechanical applications, with flexible small-order and custom processing services available. Contact us!

Torlon parts is a product made from PAI plastic. It can be produced using CNC machining, injection molding, or compression molding. PAI is a thermoplastic engineering plastic that’s really hard, has good crystallinity, is easy to work with, and can handle long-term use at high temperatures up to 250°C. It also resists UV and radiation (like gamma and X-rays) really well, wears slowly, and even has a self-lubricating effect.

Glass Fiber Filled PEEK sheets is a glass fiber reinforced PEEK profile. PEEK (polyetheretherketone) is a high-performance, semi-crystalline thermoplastic known for its strength and heat resistance. It has three main thermal transition points:
Glass transition temperature (Tg): 143°C
Crystallization temperature (Tc): 285°C
Melting point (Tm): 334°C (the highest of the three)
Its density also changes with crystallization—1.265 g/cm³ when amorphous, rising to 1.32 g/cm³ when fully crystallized.
